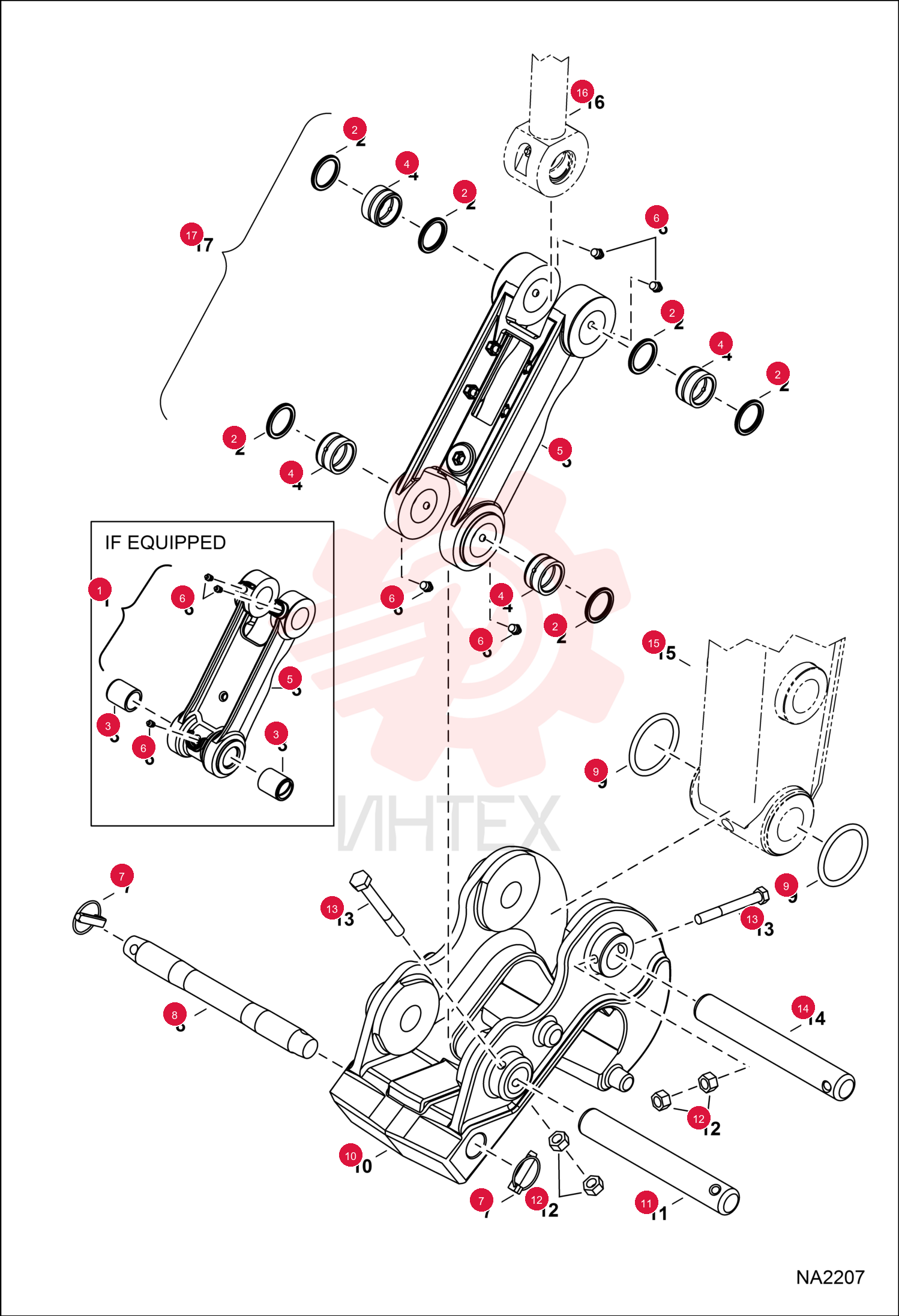

SEAL, OIL 6652915 (4)
1 6652915
- 6652915 - SEAL
- OIL
2 6803213
- 6803213 - BUSHING
- PRESS FIT
3 6803309
- 6803309 - BUSHING
- PRESS FIT
4 10H25
- 10H25 - FTG GREASE STRAIGHT
5 6563082
- 6563082 - CROSS MEM
6 7137214
- 7137214 - PIN
7 7143562
- 7143562 - O-RING
- 69
- 2 mm (2.73") ID
8 7150798
- 7150798 - X-CHANGE
- PIN-ON
9 7181216
- 7181216 - PIN
- PIVOT X-CHANGE
- 249
- 5 mm (9.82") long
10 16DM10
- 16DM10 - NUT
11 1CM1070
- 1CM1070 - BOLT
12 7157744
- 7157744 - PIN
- PIVOT CLAMP
- 376
- 5 mm (14.82") long - see clamp attachment
13 7181216
- 7181216 - PIN
- PIVOT X-CHANGE
- 249
- 5 mm (9.82") long
14 7236896
- 7236896 - LINK
- PIN-ON
- Ref. 2 & 4-6 - not for extendable arm
