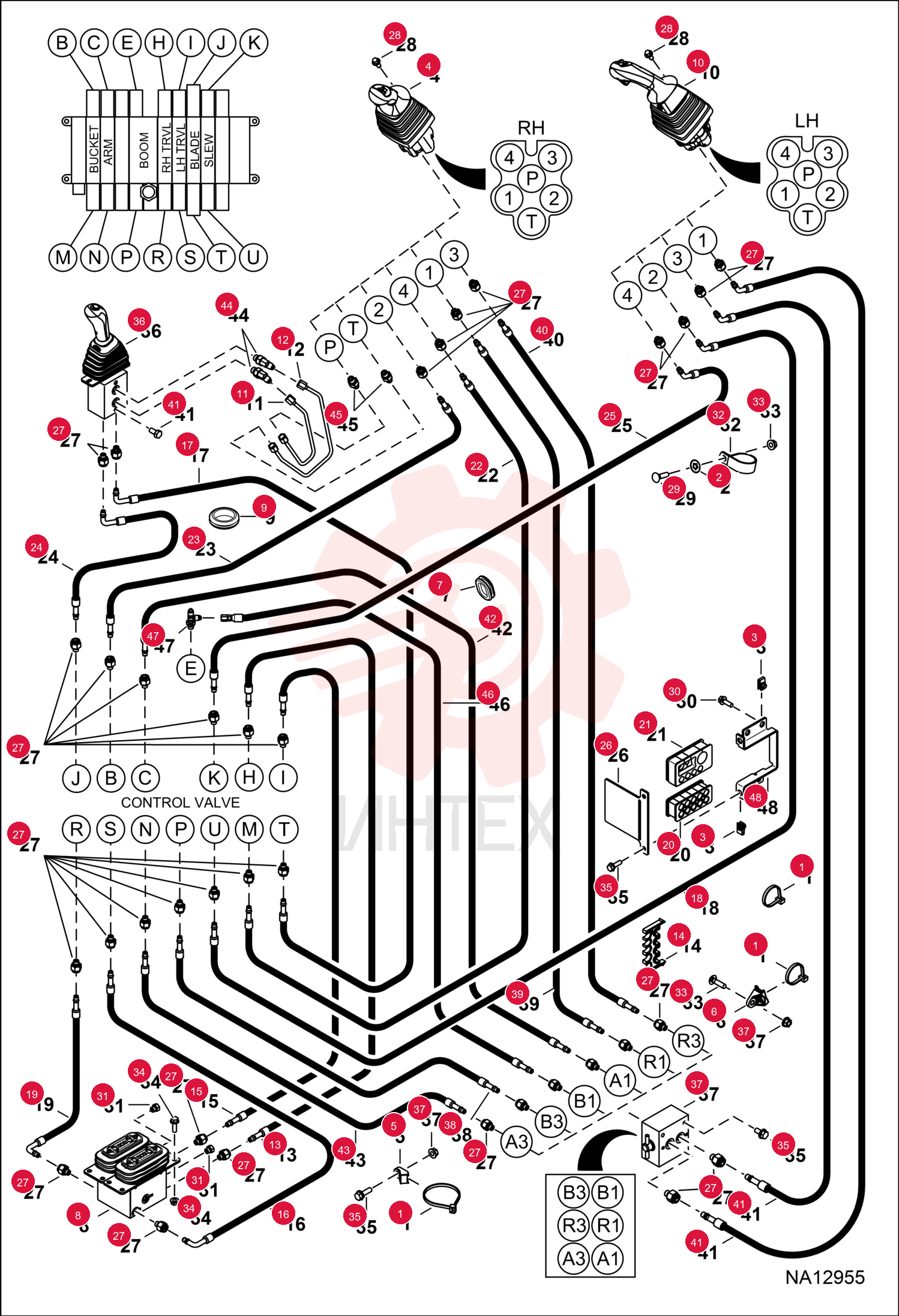

STRAP, TIE 6624289 (35)

STRAP, TIE 6624289 (35)

STRAP, TIE 6624289 (35)

1 6624289

  • 6624289 - STRAP
  • TIE

2 6675859

  • 6675859 - RETAINER

3 6676169

  • 6676169 - NUT

4 7310748

  • 7310748 - LEVER JOYSTICK W/PWM
  • RH - W/O secondary aux

5 6678667

  • 6678667 - MOUNT

6 6678818

  • 6678818 - MOUNT

7 6681886

  • 6681886 - GROMMET
  • Was 6681886

8 6806443

  • 6806443 - GROMMET

9 7310748

  • 7310748 - LEVER JOYSTICK W/PWM
  • LH - W/O secondary aux

10 7191228

  • 7191228 - TUBELINE
  • HYD

11 7164930

  • 7164930 - HOSE
  • HYD ASSY

12 7191229

  • 7191229 - TUBELINE
  • HYD

13 7174050

  • 7174050 - HOSE
  • HYD ASSY

14 7166870

  • 7166870 - CLIP
  • HOSE

15 7164929

  • 7164929 - HOSE
  • HYD ASSY

16 7175664

  • 7175664 - HOSE
  • HYD ASSY

17 7175665

  • 7175665 - HOSE
  • HYD ASSY

18 7164933

  • 7164933 - HOSE
  • HYD ASSY

19 7164928

  • 7164928 - HOSE
  • HYD ASSY

20 7175013

  • 7175013 - GUIDE
  • HOSE

21 7223146

  • 7223146 - GUIDE
  • HOSE

22 7307672

  • 7307672 - HOSE HYDRAULIC ASSY

23 7175661

  • 7175661 - HOSE
  • HYD ASSY

24 7169840

  • 7169840 - HOSE
  • HYD ASSY

25 7169842

  • 7169842 - HOSE
  • HYD ASSY

26 7279153

  • 7279153 - PLATE COVER

27 10L0604

  • 10L0604 - FITTING
  • HYD CONNECTOR

28 78K4

  • 78K4 - O'RING

29 7011053

  • 7011053 - CLIP

30 7344615

  • 7344615 - CAP PLASTIC

31 26GM8020

  • 26GM8020 - SCREW SELF TAPPING

32 28CM830

  • 28CM830 - BOLT

33 29CM825

  • 29CM825 - SCREW HEX HD W/F 8.8

34 29CM825

  • 29CM825 - SCREW HEX HD W/F 8.8

35 30H85

  • 30H85 - CLAMP

36 43DM8

  • 43DM8 - NUT FLANGED HEX

37 51DM8

  • 51DM8 - NUT HX THDLK PREAPPL

38 29CM816

  • 29CM816 - SCREW FLGD HEX CAP

39 7273368

  • 7273368 - HOSE HYDRAULIC ASSY

40 7273363

  • 7273363 - HOSE HYDRAULIC ASSY

41 7273367

  • 7273367 - HOSE HYDRAULIC ASSY

42 7273366

  • 7273366 - HOSE HYDRAULIC ASSY

43 7279666

  • 7279666 - HOSE HYDRAULIC ASSY

44 7273365

  • 7273365 - HOSE HYDRAULIC ASSY

45 18KB0404

  • 18KB0404 - FITTING
  • HYD ELBOW
  • Use W/tubelines

46 79K4

  • 79K4 - O RING 10

47 15KB0404

  • 15KB0404 - FTG HYD S CONNECTOR
  • Use W/tubelines

48 79K4

  • 79K4 - O RING 10

49 7273364

  • 7273364 - HOSE HYDRAULIC ASSY
  • Use W/tee fitting on valve end

50 21KB0404

  • 21KB0404 - FITTING
  • HYD TEE

51 7279152

  • 7279152 - MOUNT HOSE
