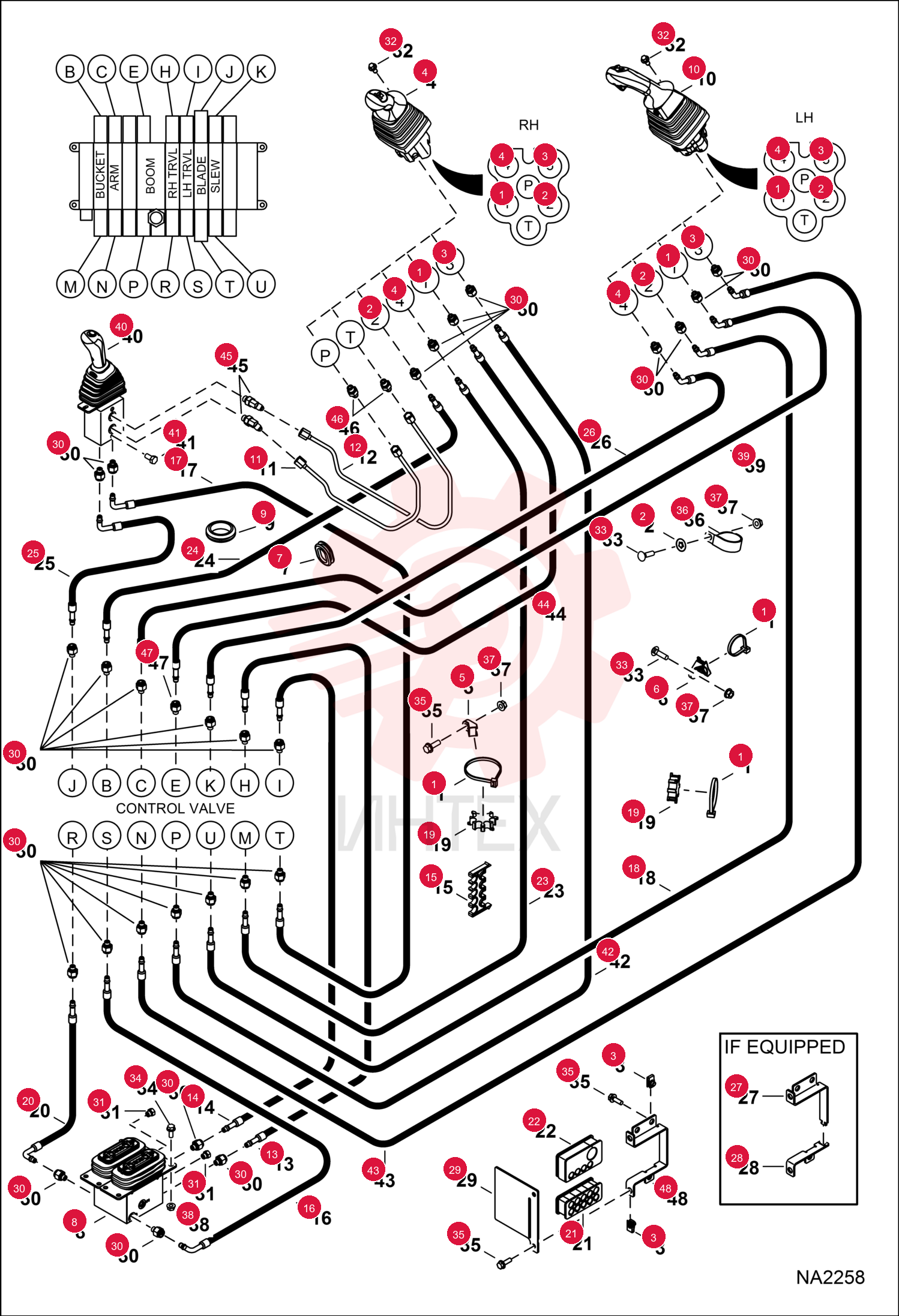

STRAP, TIE 6624289 (12)

STRAP, TIE 6624289 (12)

STRAP, TIE 6624289 (12)

1 6624289

  • 6624289 - STRAP
  • TIE

2 6675859

  • 6675859 - RETAINER

3 6676169

  • 6676169 - NUT

4 7220732

  • 7220732 - JOYSTICK
  • RH
  • RH

5 7024441

  • 7024441 - JOYSTICK
  • RH ASSY

6 6678667

  • 6678667 - MOUNT

7 6678818

  • 6678818 - MOUNT

8 6681886

  • 6681886 - GROMMET

9 6697935

  • 6697935 - VALVE
  • PEDAL DUAL

10 6806443

  • 6806443 - GROMMET

11 7220733

  • 7220733 - JOYSTICK
  • LH
  • LH

12 7024440

  • 7024440 - JOYSTICK
  • LH ASSY

13 7164909

  • 7164909 - HOSE
  • HYD ASSY

14 7191228

  • 7191228 - TUBELINE
  • HYD

15 7191229

  • 7191229 - TUBELINE
  • HYD

16 7164910

  • 7164910 - HOSE
  • HYD ASSY

17 7174050

  • 7174050 - HOSE
  • HYD ASSY
  • Was 7164928

18 7174050

  • 7174050 - HOSE
  • HYD ASSY
  • Was 7169839

19 7166870

  • 7166870 - CLIP
  • HOSE

20 7164929

  • 7164929 - HOSE
  • HYD ASSY
  • Was 7169839

21 7175664

  • 7175664 - HOSE
  • HYD ASSY
  • Was 7169840

22 7175665

  • 7175665 - HOSE
  • HYD ASSY
  • Was 7169842

23 7164928

  • 7164928 - HOSE
  • HYD ASSY
  • Was 7174050

24 7175013

  • 7175013 - GUIDE
  • HOSE

25 7223146

  • 7223146 - GUIDE
  • HOSE
  • Was 7175014

26 7175662

  • 7175662 - HOSE
  • HYD ASSY
  • Was 7175661

27 7175661

  • 7175661 - HOSE
  • HYD ASSY
  • Was 7175662

28 7169840

  • 7169840 - HOSE
  • HYD ASSY
  • Was 7175664

29 7169842

  • 7169842 - HOSE
  • HYD ASSY
  • Was 7175665

30 7178918

  • 7178918 - BRACKET

31 7178919

  • 7178919 - BRACKET

32 7178989

  • 7178989 - PLATE

33 10L0604

  • 10L0604 - FITTING
  • HYD CONNECTOR

34 7011053

  • 7011053 - CLIP

35 7344615

  • 7344615 - CAP PLASTIC

36 78K4

  • 78K4 - O'RING

37 24K3

  • 24K3 - PLUG

38 79K4

  • 79K4 - O RING 10

39 26GM8020

  • 26GM8020 - SCREW SELF TAPPING

40 28CM830

  • 28CM830 - BOLT

41 29CM825

  • 29CM825 - SCREW HEX HD W/F 8.8
  • Was 29CM820

42 29CM825

  • 29CM825 - SCREW HEX HD W/F 8.8

43 30H85

  • 30H85 - CLAMP
  • Was 30H79

44 43DM8

  • 43DM8 - NUT FLANGED HEX

45 51DM8

  • 51DM8 - NUT HX THDLK PREAPPL

46 7175681

  • 7175681 - HOSE
  • HYD ASSY
  • Was 7175683

47 4CM816

  • 4CM816 - SCREW HEX HD 8.8
  • Was 1CM816

48 7175682

  • 7175682 - HOSE
  • HYD ASSY
  • Was 7175680

49 7175683

  • 7175683 - HOSE
  • HYD ASSY
  • Was 7175681

50 7175680

  • 7175680 - HOSE
  • HYD ASSY
  • Was 7175682

51 7229357

  • 7229357 - HOSE
  • HYD
  • Use W/tee fitting on valve end

52 10L0604

  • 10L0604 - FITTING
  • HYD CONNECTOR
  • Use W/hoses

53 7011053

  • 7011053 - CLIP

54 7344615

  • 7344615 - CAP PLASTIC

55 78K4

  • 78K4 - O'RING

56 7011053

  • 7011053 - CLIP

57 18KB0404

  • 18KB0404 - FITTING
  • HYD ELBOW
  • Use W/tubelines

58 79K4

  • 79K4 - O RING 10

59 78K4

  • 78K4 - O'RING

60 7011053

  • 7011053 - CLIP

61 15KB0404

  • 15KB0404 - FTG HYD S CONNECTOR
  • Use W/tubelines

62 79K4

  • 79K4 - O RING 10

63 78K4

  • 78K4 - O'RING

64 7344615

  • 7344615 - CAP PLASTIC

65 78K4

  • 78K4 - O'RING

66 7011053

  • 7011053 - CLIP

67 10L0604

  • 10L0604 - FITTING
  • HYD CONNECTOR
  • Use W/hoses

68 10L0604

  • 10L0604 - FITTING
  • HYD CONNECTOR

69 78K4

  • 78K4 - O'RING

70 7011053

  • 7011053 - CLIP

71 7344615

  • 7344615 - CAP PLASTIC

72 78K4

  • 78K4 - O'RING

73 21KB0404

  • 21KB0404 - FITTING
  • HYD TEE

74 79K4

  • 79K4 - O RING 10

75 7011053

  • 7011053 - CLIP

76 7261696

  • 7261696 - MOUNT
  • HOSE
