Bobcat
/
E50
/

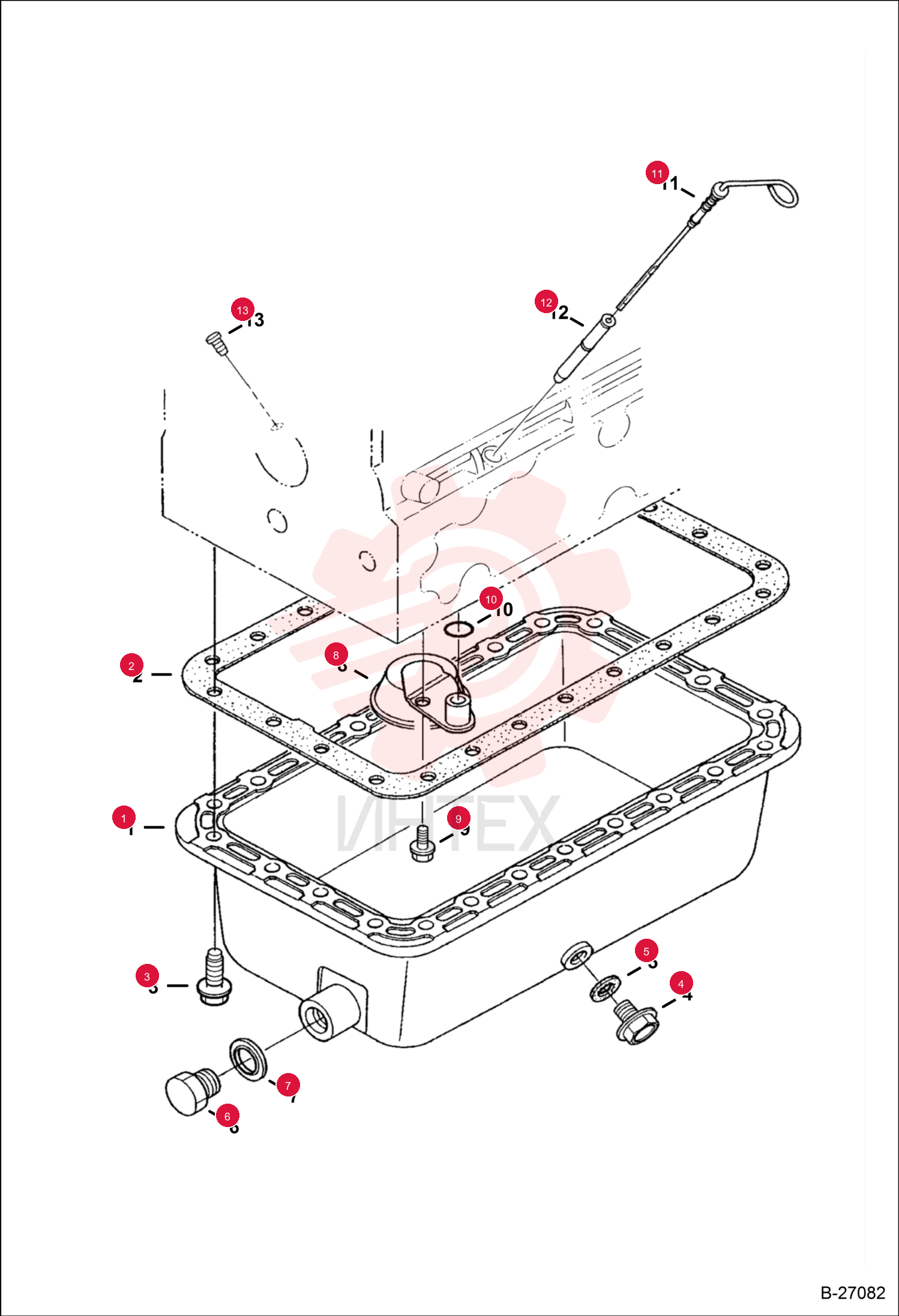

PAN, OIL 6655151 (2)

PAN, OIL 6655151 (2)

PAN, OIL 6655151 (2)

1 6655151

  • 6655151 - PAN
  • OIL
  • Was 7022790

2 6655151

  • 6655151 - PAN
  • OIL

3 6666817

  • 6666817 - GASKET
  • oil pan

4 7001922

  • 7001922 - BOLT

5 6692381

  • 6692381 - DRAIN PLUG

6 6680484

  • 6680484 - GASKET
  • drain plug

7 6680657

  • 6680657 - PLUG

8 6631046

  • 6631046 - GASKET
  • drain plug

9 6655194

  • 6655194 - O. FILTER

10 6685109

  • 6685109 - BOLT FLANGE

11 6684754

  • 6684754 - O-RING
  • oil screen

12 6677202

  • 6677202 - DIPSTICK
  • OIL ENG
  • oil - long - use W/guide

13 6677203

  • 6677203 - TUBE
  • DIPSTICK

14 6969804

  • 6969804 - PLUG
  • OIL GAUGE
