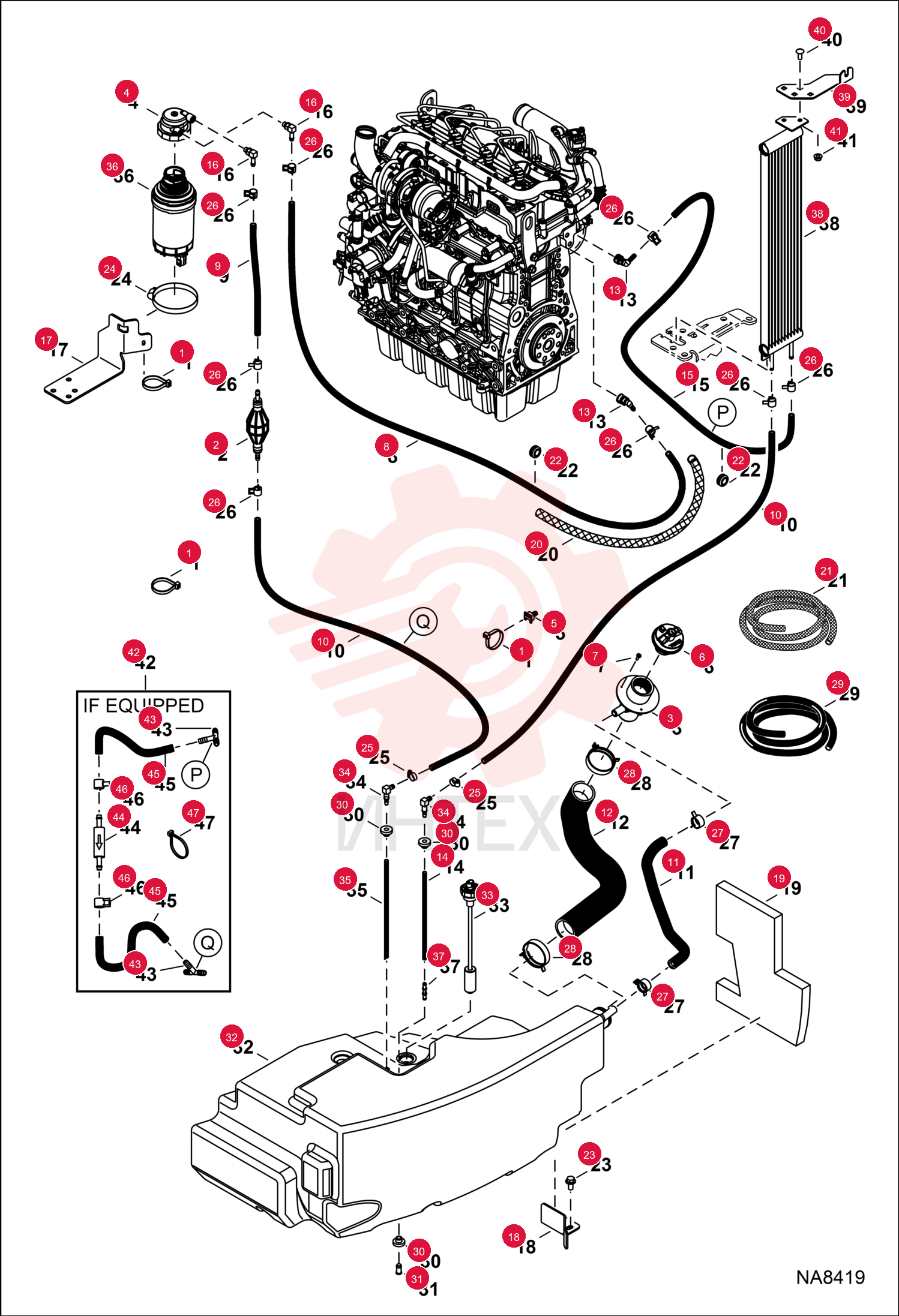

STRAP, TIE 6624289 (7)
1 6624289
- 6624289 - STRAP
- TIE
2 6667170
- 6667170 - PUMP
- PRIMER HAND
3 6701449
- 6701449 - FLR.TUBE
4 7015668
- 7015668 - MOUNT
- STRAP TIE
5 7023550
- 7023550 - CAP
- DIESEL LOCKING
6 7106279
- 7106279 - SCREW
7 7172473
- 7172473 - HOSE
- FUEL
8 7172474
- 7172474 - HOSE
- INLET
9 7188104
- 7188104 - FITTING
- FUEL ELBOW
10 7189951
- 7189951 - TUBE
- FUEL
- NSS - Order 7189953 - Was 7189951
11 7213054
- 7213054 - FITTING
- ELBOW
12 7226644
- 7226644 - BRACKET
- FILTER
13 7227060
- 7227060 - BRACKET
- TANK FUEL
14 7228056
- 7228056 - INSULATION
- TANK FUEL
15 7237463
- 7237463 - HOSE
- FUEL BULK
- sold per foot
16 7237139
- 7237139 - GROMMET
17 29CM1020
- 29CM1020 - SCREW HEX 10MMX20MM
18 42H56
- 42H56 - CLAMP
19 42HS04
- 42HS04 - CLAMP HOSE TYPE M
20 5HM14
- 5HM14 - HOSE CLMP CONST TENS
21 5HM23
- 5HM23 - HOSE CLMP CONST TENS
22 5HM58
- 5HM58 - CLAMP
23 6577822
- 6577822 - HOSE BULK
- sold per foot
24 7273691
- 7273691 - GROMMET
- Use W/ 19
- 05 mm (0.75") dia hole
25 6553411
- 6553411 - BUSHING
- PRESS FIT 5
- Use W/ 13mm (.51") dia hole
26 6599645
- 6599645 - PLUG
- STEEL
27 7172472
- 7172472 - TANK
- FUEL
- Also order 7227060 bracket when replacing fuel tank
28 6717579
- 6717579 - GASKET
29 7286464
- 7286464 - SENSOR
- FUEL
- Was 7179839
30 6666302
- 6666302 - ELBOW BARBED
31 6683892
- 6683892 - TUBE
- FUEL
32 7013579
- 7013579 - FILTER FUEL ASSY
- W/Ref. 4
33 7023589
- 7023589 - FILTER FUEL W/SEPARATOR
34 7231900
- 7231900 - EXCHANGER
- FUEL
35 7225113
- 7225113 - BRACKET
- MOUNTING
36 28CM820
- 28CM820 - BOLT CARRIAGE 8.8
37 43DM8
- 43DM8 - NUT FLANGED HEX
38 7140157
- 7140157 - TEE
39 5HM14
- 5HM14 - HOSE CLMP CONST TENS
40 6624289
- 6624289 - STRAP
- TIE
