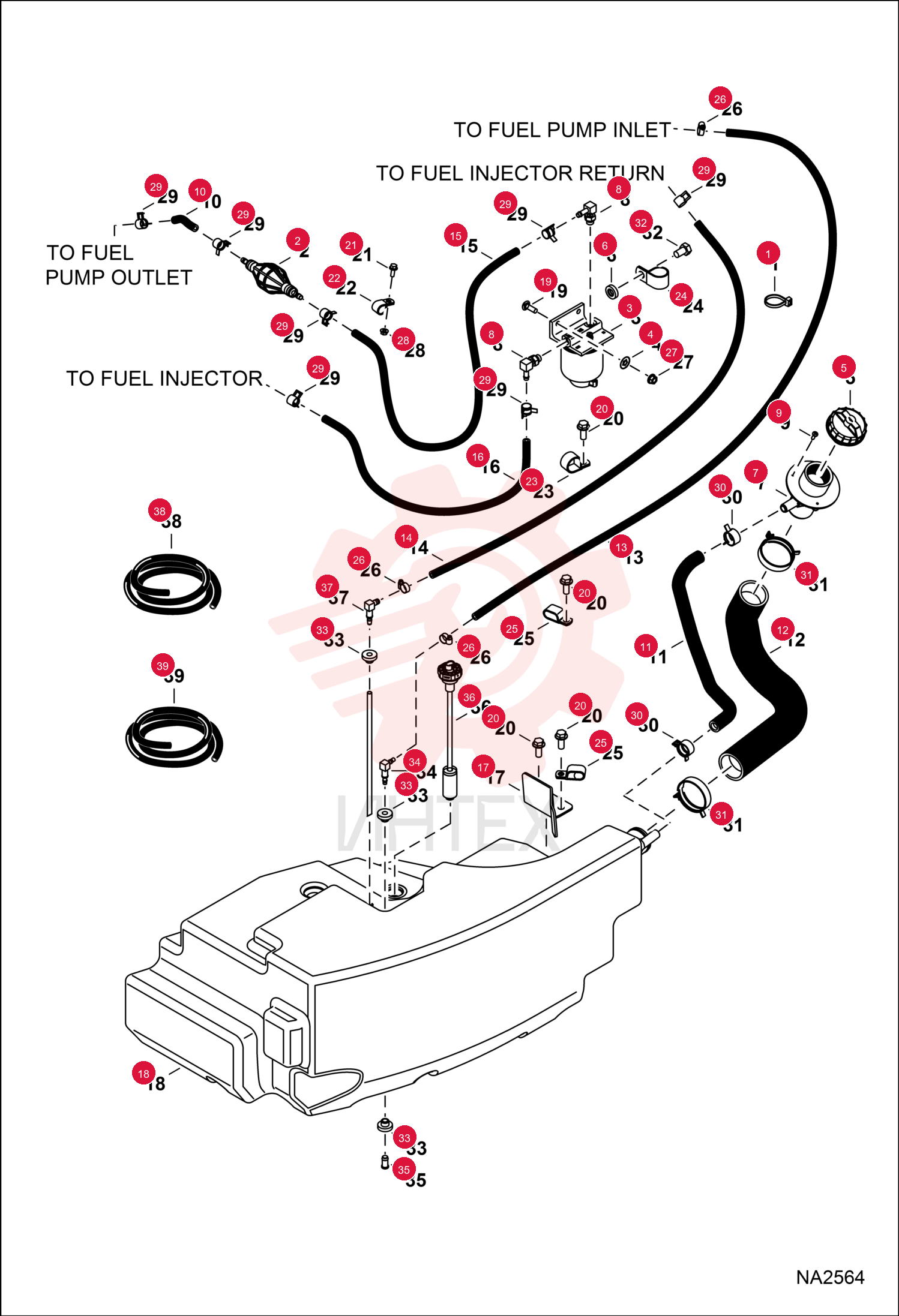

STRAP, TIE 6624289 (18)
1 6624289
- 6624289 - STRAP
- TIE
2 6667170
- 6667170 - PUMP
- PRIMER HAND
3 6667352
- 6667352 - FILTER
- FUEL W/SEPARATOR 12
4 6667353
- 6667353 - FILTER
- FUEL ASSY
5 6675859
- 6675859 - RETAINER
- if equipped
6 7023550
- 7023550 - CAP
- DIESEL LOCKING
- black - key same as ignition
7 7019288
- 7019288 - CAP
- FUEL LOCKING
- green - key same as ignition - Was 6680151
8 6701097
- 6701097 - WASHER
9 6701449
- 6701449 - FLR.TUBE
10 6715183
- 6715183 - ELBOW 90 STRTHD TUBE
11 79K5
- 79K5 - O RING 10
12 7106279
- 7106279 - SCREW
13 7172473
- 7172473 - HOSE
- FUEL
14 7172474
- 7172474 - HOSE
- INLET
15 7227060
- 7227060 - BRACKET
- TANK FUEL
- Was 7174609
16 7172472
- 7172472 - TANK
- FUEL
- Also order 7227060 bracket when replacing fuel tank
17 28CM825
- 28CM825 - BOLT CARRIAGE 8.8
18 29CM1025
- 29CM1025 - SCREW FLGD HEX CAP
19 29CM616
- 29CM616 - SCREW FLGD HEX CAP
20 30H37
- 30H37 - CLIP INSULATED
21 30H73
- 30H73 - CLAMP
22 30H74
- 30H74 - CLAMP
- HOSE
23 30H31
- 30H31 - CLAMP 10
24 42HS04
- 42HS04 - CLAMP HOSE TYPE M
25 43DM8
- 43DM8 - NUT FLANGED HEX
26 51DM6
- 51DM6 - NUT HX THDLK PREAPPL
27 5HM14
- 5HM14 - HOSE CLMP CONST TENS
28 5HM23
- 5HM23 - HOSE CLMP CONST TENS
29 5HM58
- 5HM58 - CLAMP
30 6719828
- 6719828 - BOLT
- Was 6CM1220
31 7273691
- 7273691 - GROMMET
- Use W/ 19
- 05 mm (0.75") dia hole
32 6553411
- 6553411 - BUSHING
- PRESS FIT 5
- Use W/ 13mm (.51") dia hole
33 6598908
- 6598908 - ELBOW BARBED
34 6599645
- 6599645 - PLUG
- STEEL
35 7297322
- 7297322 - SENSOR
- FUEL
- W/Gasket - Was 7216451
36 7286464
- 7286464 - SENSOR
- FUEL
- Was 7179839
37 6666302
- 6666302 - ELBOW BARBED
- Was 7126672
38 6577822
- 6577822 - HOSE BULK
- sold per foot
39 6578169
- 6578169 - HOSE BULK
- sold per foot - 0.19" ID
40 6578169
- 6578169 - HOSE BULK
- sold per foot - 0.19" ID
