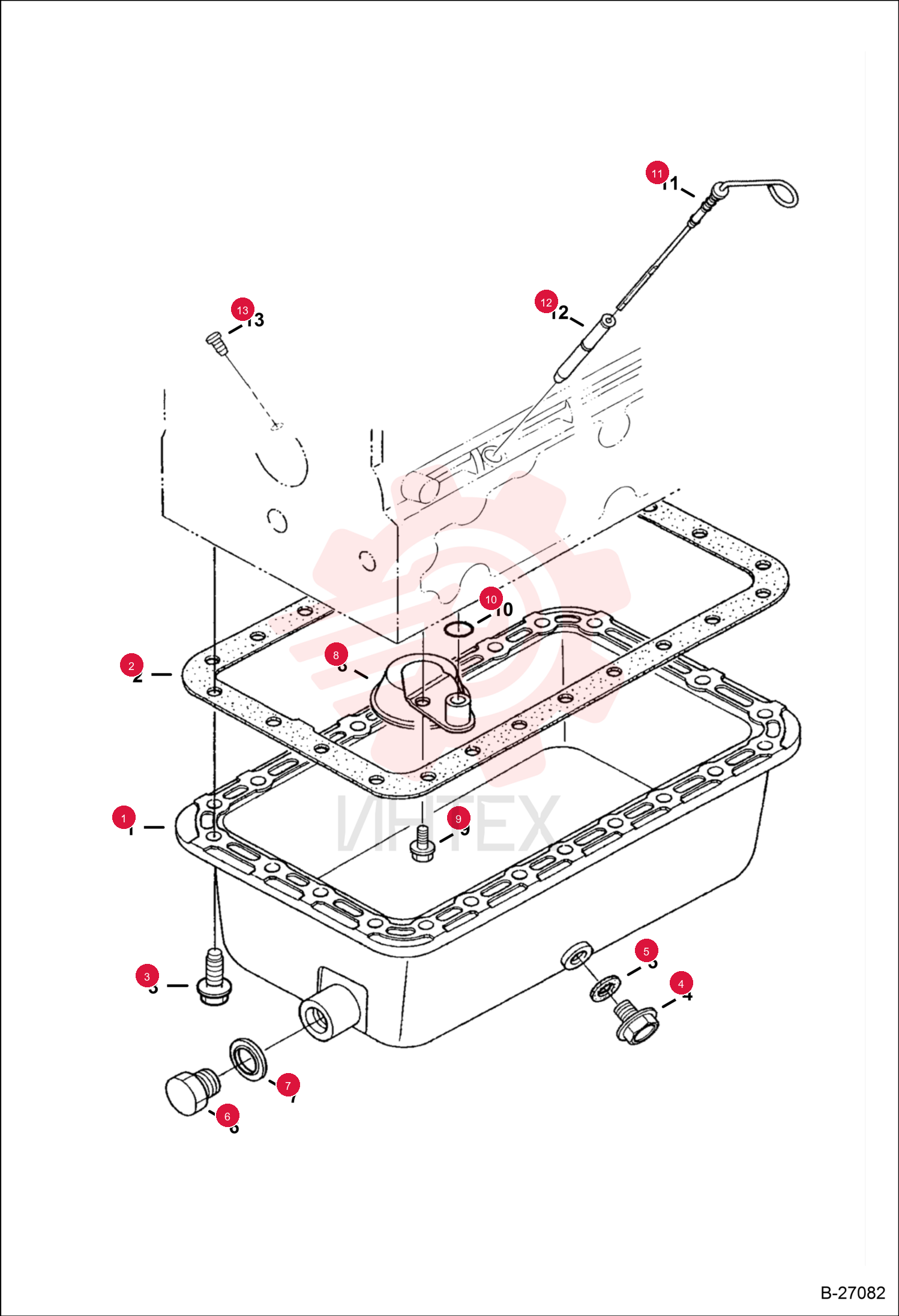

PAN, OIL 6655151 (3)

PAN, OIL 6655151 (3)

PAN, OIL 6655151 (3)

1 6655151

  • 6655151 - PAN
  • OIL

2 6666817

  • 6666817 - GASKET
  • oil pan

3 7001922

  • 7001922 - BOLT

4 6692381

  • 6692381 - DRAIN PLUG

5 6680484

  • 6680484 - GASKET
  • drain plug

6 6680657

  • 6680657 - PLUG

7 6631046

  • 6631046 - GASKET
  • drain plug

8 6655194

  • 6655194 - O. FILTER

9 6685109

  • 6685109 - BOLT FLANGE

10 6684754

  • 6684754 - O-RING
  • oil screen

11 6677202

  • 6677202 - DIPSTICK
  • OIL ENG
  • oil - long - use W/guide

12 6677203

  • 6677203 - TUBE
  • DIPSTICK

13 6969804

  • 6969804 - PLUG
  • OIL GAUGE
