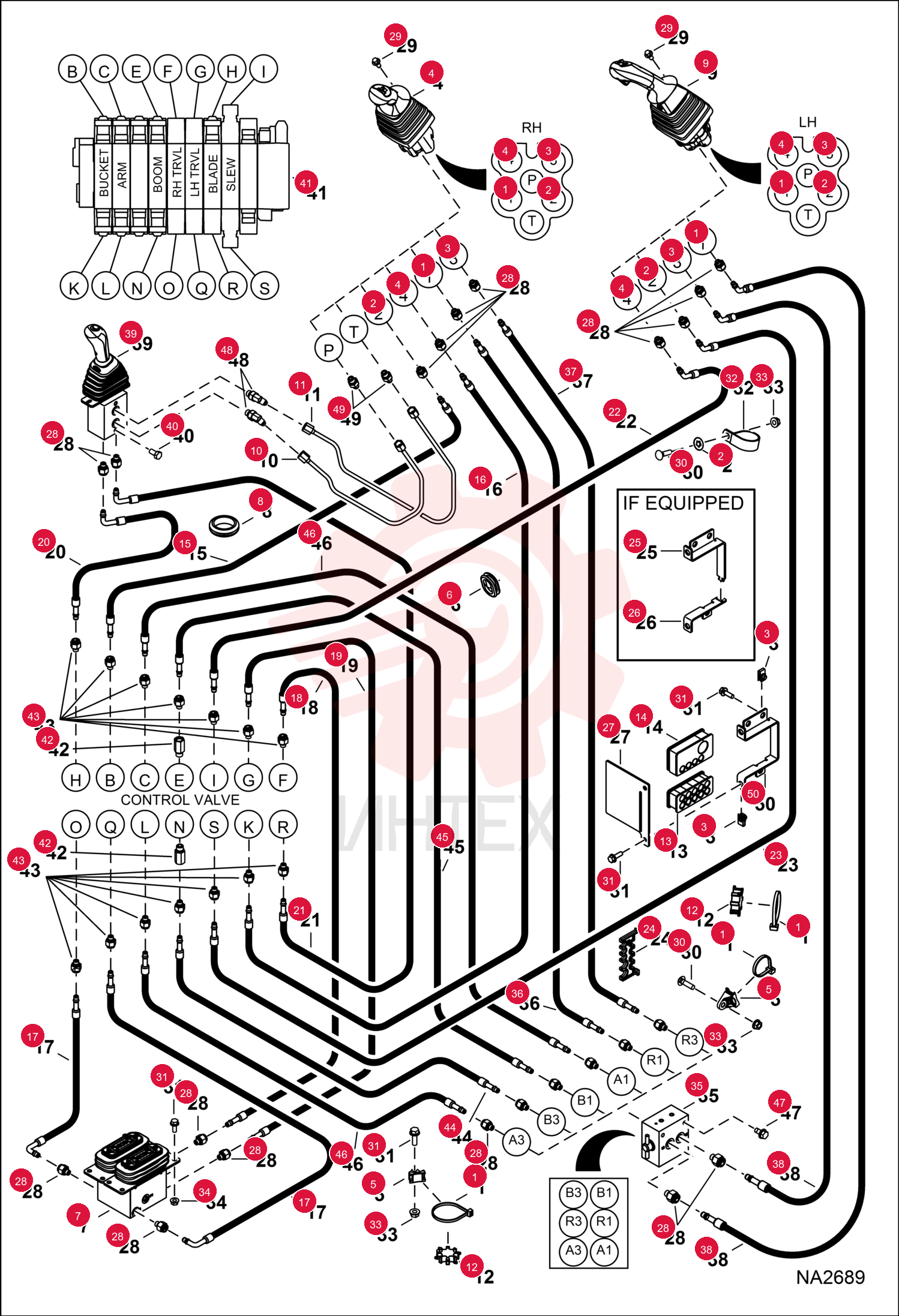

STRAP, TIE 6624289 (23)

STRAP, TIE 6624289 (23)

STRAP, TIE 6624289 (23)

1 6624289

  • 6624289 - STRAP
  • TIE

2 6675859

  • 6675859 - RETAINER

3 6676169

  • 6676169 - NUT

4 7024441

  • 7024441 - JOYSTICK
  • RH ASSY

5 7220730

  • 7220730 - JOYSTICK
  • RH
  • - manual controls

6 6678818

  • 6678818 - MOUNT

7 6681886

  • 6681886 - GROMMET

8 6697935

  • 6697935 - VALVE
  • PEDAL DUAL

9 6806443

  • 6806443 - GROMMET

10 7024440

  • 7024440 - JOYSTICK
  • LH ASSY

11 7164909

  • 7164909 - HOSE
  • HYD ASSY

12 7191228

  • 7191228 - TUBELINE
  • HYD

13 7164910

  • 7164910 - HOSE
  • HYD ASSY

14 7191229

  • 7191229 - TUBELINE
  • HYD

15 7175013

  • 7175013 - GUIDE
  • HOSE

16 7223146

  • 7223146 - GUIDE
  • HOSE

17 7175214

  • 7175214 - HOSE
  • HYD

18 7175184

  • 7175184 - HOSE
  • HYD

19 7175186

  • 7175186 - HOSE
  • HYD

20 7175191

  • 7175191 - HOSE
  • HYD

21 7175192

  • 7175192 - HOSE
  • HYD

22 7175193

  • 7175193 - HOSE
  • HYD

23 7175194

  • 7175194 - HOSE
  • HYD

24 7175195

  • 7175195 - HOSE
  • HYD

25 7175196

  • 7175196 - HOSE
  • HYD

26 7178575

  • 7178575 - CLIP
  • HOSE

27 7178918

  • 7178918 - BRACKET

28 7178919

  • 7178919 - BRACKET

29 7178989

  • 7178989 - PLATE

30 10L0604

  • 10L0604 - FITTING
  • HYD CONNECTOR

31 78K4

  • 78K4 - O'RING

32 7011053

  • 7011053 - CLIP

33 7344615

  • 7344615 - CAP PLASTIC

34 26GM8020

  • 26GM8020 - SCREW SELF TAPPING

35 28CM830

  • 28CM830 - BOLT

36 29CM825

  • 29CM825 - SCREW HEX HD W/F 8.8

37 30H85

  • 30H85 - CLAMP

38 43DM8

  • 43DM8 - NUT FLANGED HEX

39 51DM8

  • 51DM8 - NUT HX THDLK PREAPPL

40 7193055

  • 7193055 - VALVE
  • JPS
  • Was 7008308

41 7164903

  • 7164903 - HOSE
  • HYD ASSY

42 7164904

  • 7164904 - HOSE
  • HYD ASSY

43 7169837

  • 7169837 - HOSE
  • HYD ASSY

44 4CM816

  • 4CM816 - SCREW HEX HD 8.8
  • Was 1CM816

45 7253209

  • 7253209 - VALVE
  • CONTROL
  • - 9 section - W/O angle blade

46 7253208

  • 7253208 - VALVE
  • CONTROL
  • - 10 section - W/angle blade

47 7012494

  • 7012494 - ORIFICE

48 79K6

  • 79K6 - O RING 10

49 10L0606

  • 10L0606 - FITTING
  • HYD CONNECTOR

50 78K6

  • 78K6 - O'RING

51 7011053

  • 7011053 - CLIP

52 7175207

  • 7175207 - HOSE
  • HYD

53 7175210

  • 7175210 - HOSE
  • HYD

54 7175212

  • 7175212 - HOSE
  • HYD

55 29CM816

  • 29CM816 - SCREW FLGD HEX CAP

56 18KB0404

  • 18KB0404 - FITTING
  • HYD ELBOW
  • Use W/tubelines

57 79K4

  • 79K4 - O RING 10

58 15KB0404

  • 15KB0404 - FTG HYD S CONNECTOR
  • Use W/tubelines

59 79K4

  • 79K4 - O RING 10

60 7261696

  • 7261696 - MOUNT
  • HOSE
