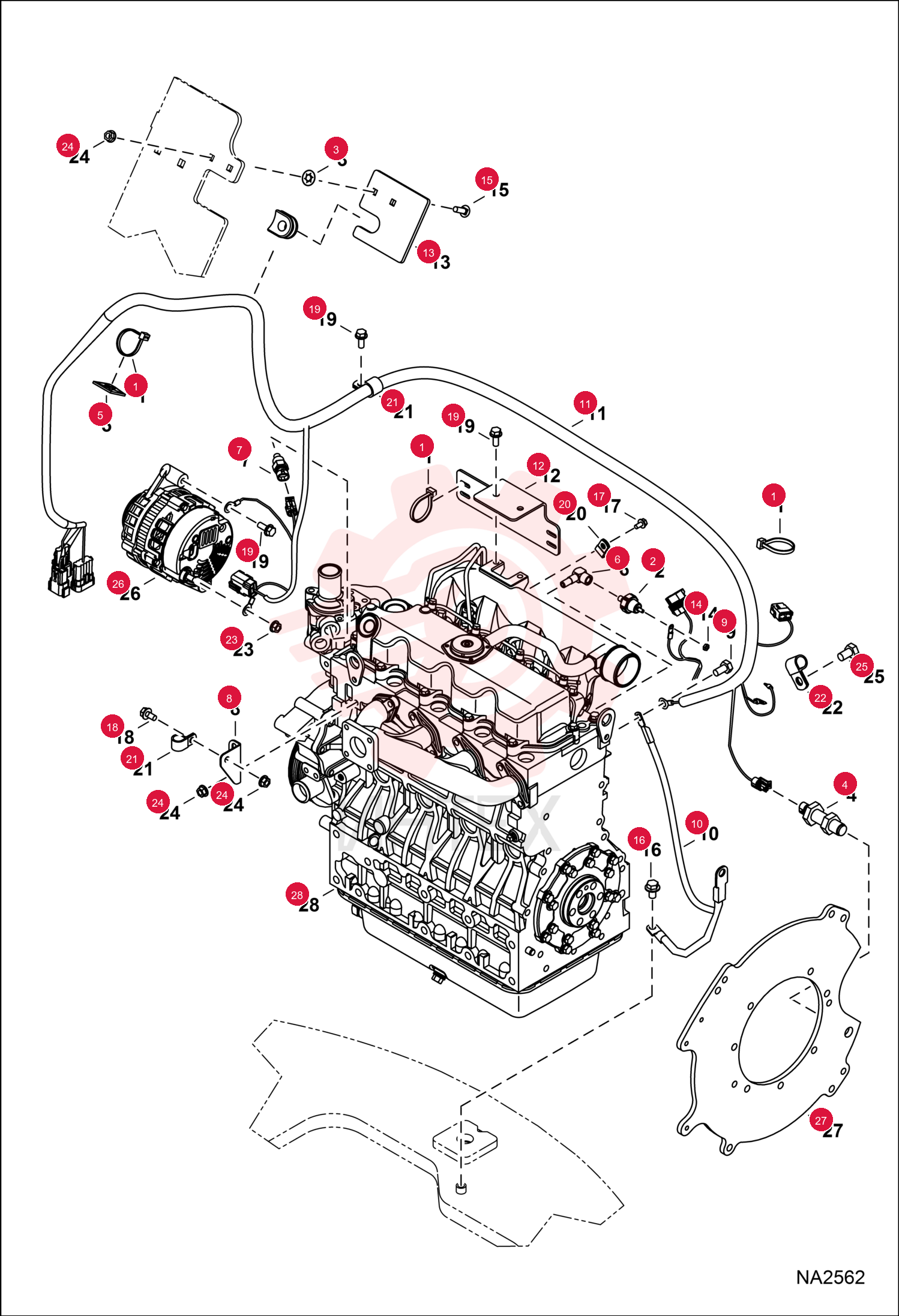

STRAP, TIE 6624289 (12)

STRAP, TIE 6624289 (12)

STRAP, TIE 6624289 (12)

1 6624289

  • 6624289 - STRAP
  • TIE

2 6631010

  • 6631010 - SWITCH
  • PRESS OIL ENG

3 6674264

  • 6674264 - RETAINER BOLT

4 6693921

  • 6693921 - SENSOR
  • RPM

5 6693924

  • 6693924 - MOUNT

6 6707040

  • 6707040 - ELBOW 90 STREET PIPE

7 6718414

  • 6718414 - SENDER
  • TEMP ENG

8 7100529

  • 7100529 - BRACKET

9 5CM1020

  • 5CM1020 - SCREW FL THD HEX CAP
  • W/thread lock applied - Was 7120308

10 7151891

  • 7151891 - HARNESS
  • GROUND

11 7175747

  • 7175747 - HARNESS
  • ENG

12 7277968

  • 7277968 - HARNESS
  • ENG

13 7244634

  • 7244634 - BRACKET
  • HARNESS
  • Was 7177292

14 7233802

  • 7233802 - PLATE
  • SEAL
  • Was 7188776

15 12D8

  • 12D8 - NUT HEX MACH SCREW

16 28CM825

  • 28CM825 - BOLT CARRIAGE 8.8

17 29CM1016

  • 29CM1016 - SCREW FLANGE HEX CAP

18 29CM612

  • 29CM612 - BOLT
  • FLANGED

19 29CM816

  • 29CM816 - SCREW FLGD HEX CAP

20 29CM820

  • 29CM820 - SCREW FLNGE HEX CAP

21 30H26

  • 30H26 - CLIP

22 30H38

  • 30H38 - CLIP
  • Was 30H37

23 30H44

  • 30H44 - CLAMP

24 43DM8

  • 43DM8 - NUT FLANGED HEX

25 51DM8

  • 51DM8 - NUT HX THDLK PREAPPL

26 6CM1220

  • 6CM1220 - BOLT
