Главная
/
Бренды
/
Bobcat
/
E85
/

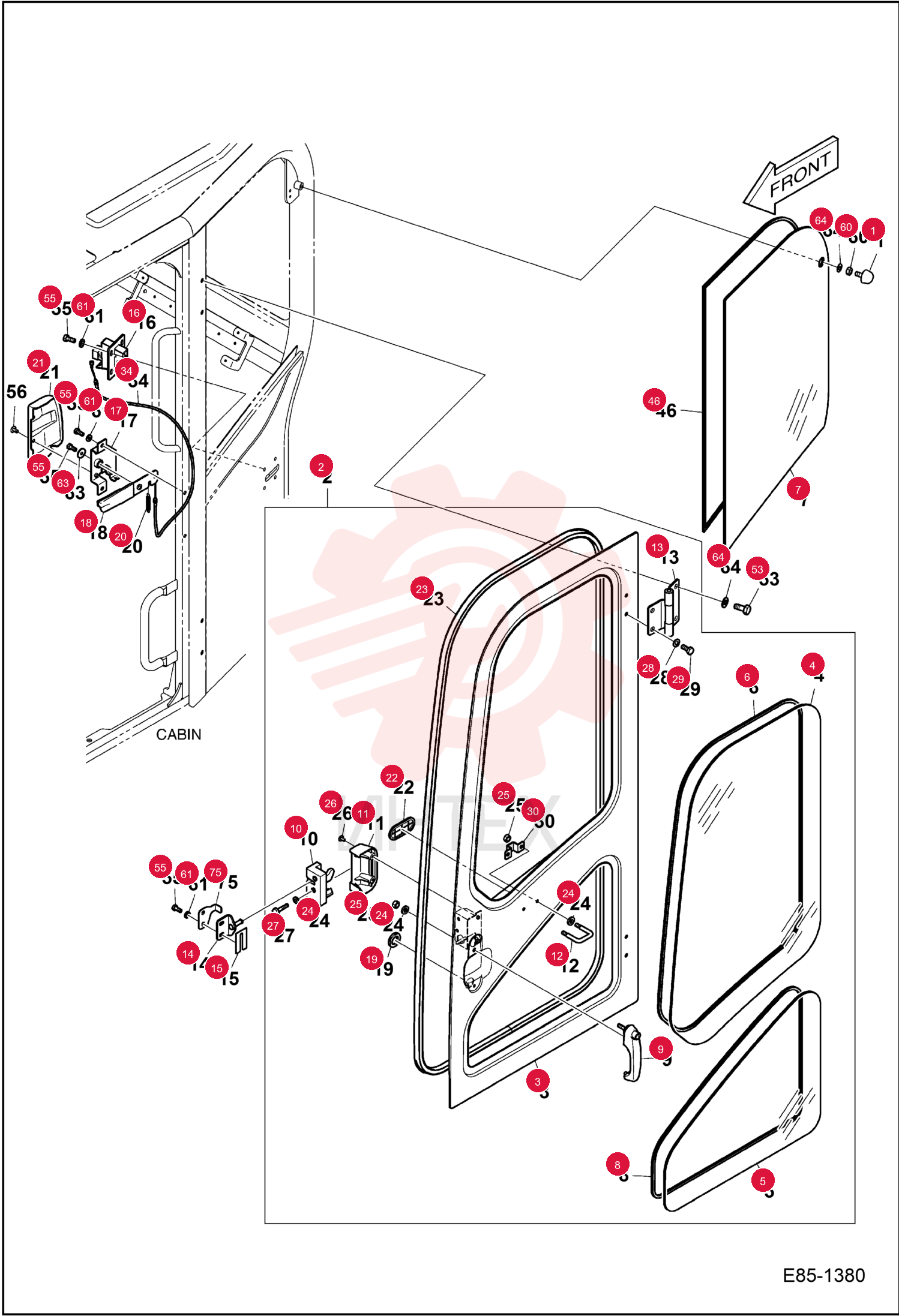

STOPPER RUBBER 7012496 (1)

STOPPER RUBBER 7012496 (1)

STOPPER RUBBER 7012496 (1)

1 7012496

  • 7012496 - STOPPER RUBBER

2 7028993

  • 7028993 - DOOR
  • CAB ASSY
  • W/Ref. 3-6
  • 8-13
  • 19
  • 22-30

3 7006013

  • 7006013 - GLASS
  • DOOR

4 7006014

  • 7006014 - GLASS
  • DOOR

5 7006019

  • 7006019 - DAMPER

6 7006174

  • 7006174 - GLASS

7 7006018

  • 7006018 - DAMPER

8 7028230

  • 7028230 - HANDLE DOOR

9 7028879

  • 7028879 - CATCH
  • LATCH

10 7005795

  • 7005795 - COVER

11 7013286

  • 7013286 - HOOK
  • CATCH DOOR

12 7006015

  • 7006015 - HINGE

13 7276609

  • 7276609 - STRIKER

14 7029283

  • 7029283 - PLATE

15 7276611

  • 7276611 - LOCK
  • DOOR

16 7006178

  • 7006178 - BRACKET LEVER

17 7006179

  • 7006179 - LEVER BACK LOCK

18 7004617

  • 7004617 - BUSHING
  • RUBBER

19 7004595

  • 7004595 - SPRING

20 7006180

  • 7006180 - COVER LEVER

21 7006017

  • 7006017 - COVER

22 7006016

  • 7006016 - SEAL EXTRUSION

23 7004515

  • 7004515 - WASHER

24 7007796

  • 7007796 - NUT

25 7004548

  • 7004548 - BOLT

26 7004551

  • 7004551 - BOLT

27 7004512

  • 7004512 - WASHER

28 7004534

  • 7004534 - BOLT

29 7019179

  • 7019179 - BRACKET

30 7003913

  • 7003913 - WIRE

31 7006193

  • 7006193 - DAMPER

32 7004534

  • 7004534 - BOLT

33 7004546

  • 7004546 - BOLT

34 7004547

  • 7004547 - BOLT

35 7004563

  • 7004563 - NUT

36 7004515

  • 7004515 - WASHER

37 7004520

  • 7004520 - WASHER PLAIN

38 7004512

  • 7004512 - WASHER

39 7006290

  • 7006290 - PLATE
