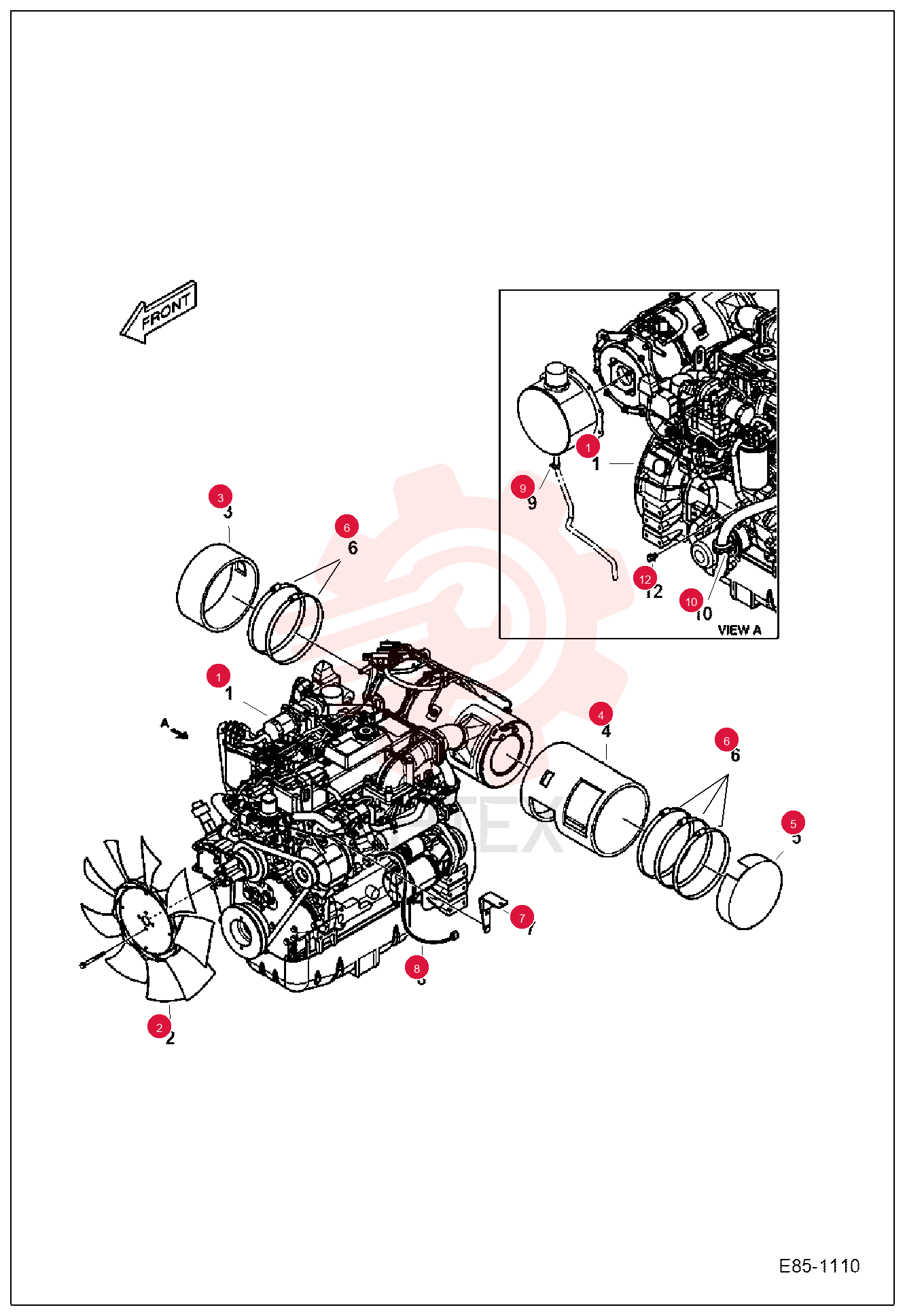

ENGINE 7028805 (1)

ENGINE 7028805 (1)

ENGINE 7028805 (1)

1 7028805

  • 7028805 - ENGINE

2 7367901

  • 7367901 - ENGINE ASSEMBLY

3 7029013

  • 7029013 - FAN
  • COOLING

4 7028857

  • 7028857 - INSULATION

5 7028856

  • 7028856 - INSULATION

6 7028855

  • 7028855 - INSULATION

7 7012740

  • 7012740 - CLAMP HOSE

8 7282925

  • 7282925 - CLAMP

9 7012740

  • 7012740 - CLAMP HOSE

10 7028742

  • 7028742 - BRACKET

11 7029077

  • 7029077 - HARNESS
  • ENG

12 7277704

  • 7277704 - CLAMP

13 7003897

  • 7003897 - CLIP

14 7005629

  • 7005629 - BOLT
