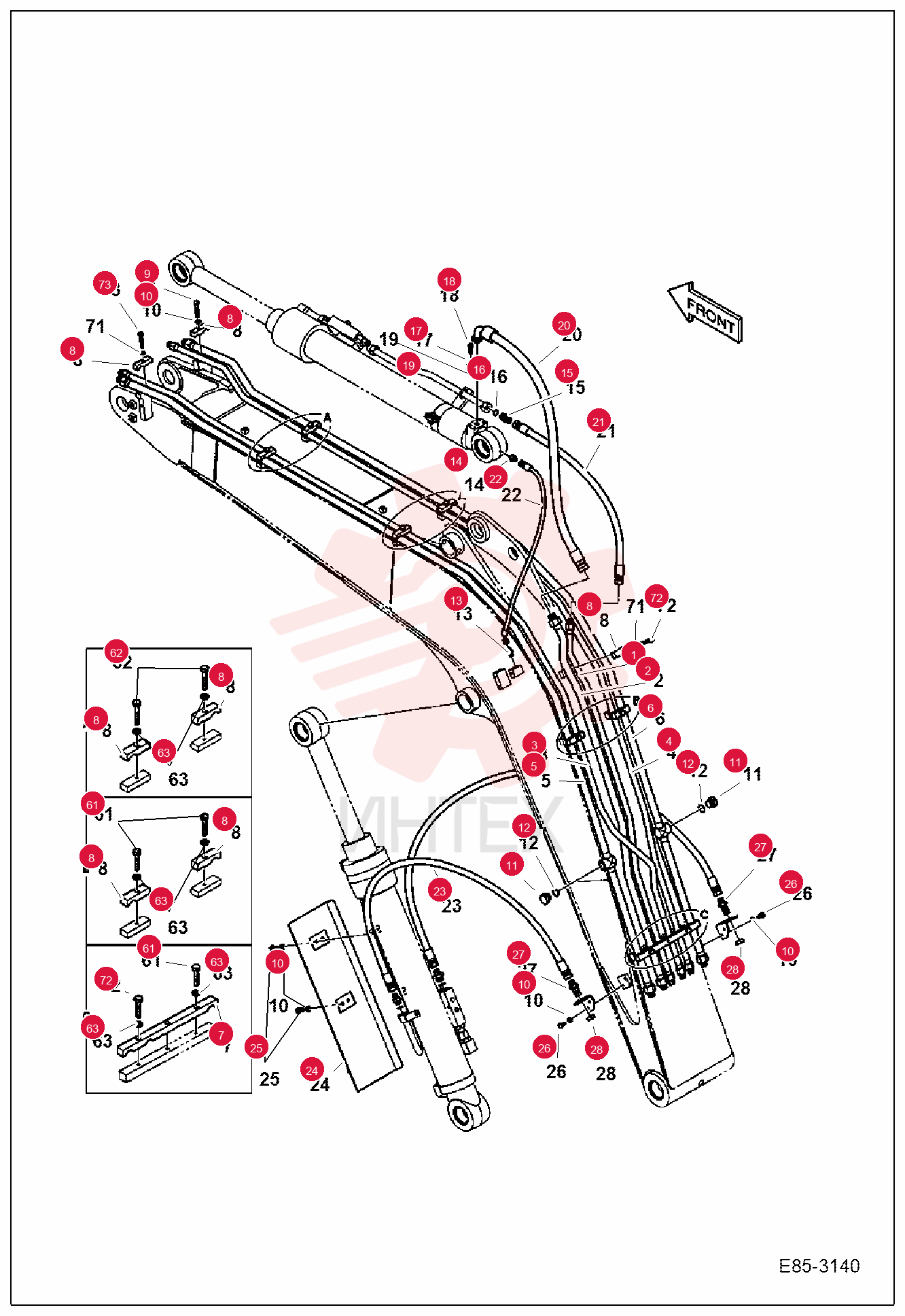

TUBELINE HYD 7028823 (2)

TUBELINE HYD 7028823 (2)

TUBELINE HYD 7028823 (2)

1 7028823

  • 7028823 - TUBELINE HYD

2 7006031

  • 7006031 - TUBELINE

3 7006032

  • 7006032 - TUBELINE

4 7006033

  • 7006033 - TUBELINE

5 7277480

  • 7277480 - TUBELINE
  • HYD
  • Was 7006034

6 7282538

  • 7282538 - TUBELINE
  • HYD
  • Was 7006035

7 7006036

  • 7006036 - CLAMP

8 7006037

  • 7006037 - CLAMP

9 7007674

  • 7007674 - BOLT

10 7007835

  • 7007835 - WASHER SPRING

11 7004733

  • 7004733 - PLUG

12 7007916

  • 7007916 - O-RING

13 7004667

  • 7004667 - ADAPTER

14 7004669

  • 7004669 - ADAPTER

15 7004699

  • 7004699 - ADAPTER

16 7284557

  • 7284557 - O-RING
  • Was 7007911

17 7004777

  • 7004777 - FLANGE

18 7007748

  • 7007748 - BOLT SOCKET M10X1.5X30

19 7004631

  • 7004631 - O-RING

20 7023692

  • 7023692 - HOSE
  • HYD

21 7029143

  • 7029143 - HOSE
  • HYD

22 7005177

  • 7005177 - HOSE

23 7333300

  • 7333300 - HOSE HYDRAULIC

24 7015633

  • 7015633 - HOSE

25 7028933

  • 7028933 - COVER

26 7007630

  • 7007630 - BOLT

27 7007626

  • 7007626 - BOLT

28 7003950

  • 7003950 - ADAPTER

29 7003876

  • 7003876 - NUT

30 7007674

  • 7007674 - BOLT

31 7007672

  • 7007672 - BOLT

32 7007835

  • 7007835 - WASHER SPRING

33 7007674

  • 7007674 - BOLT

34 7007673

  • 7007673 - BOLT
