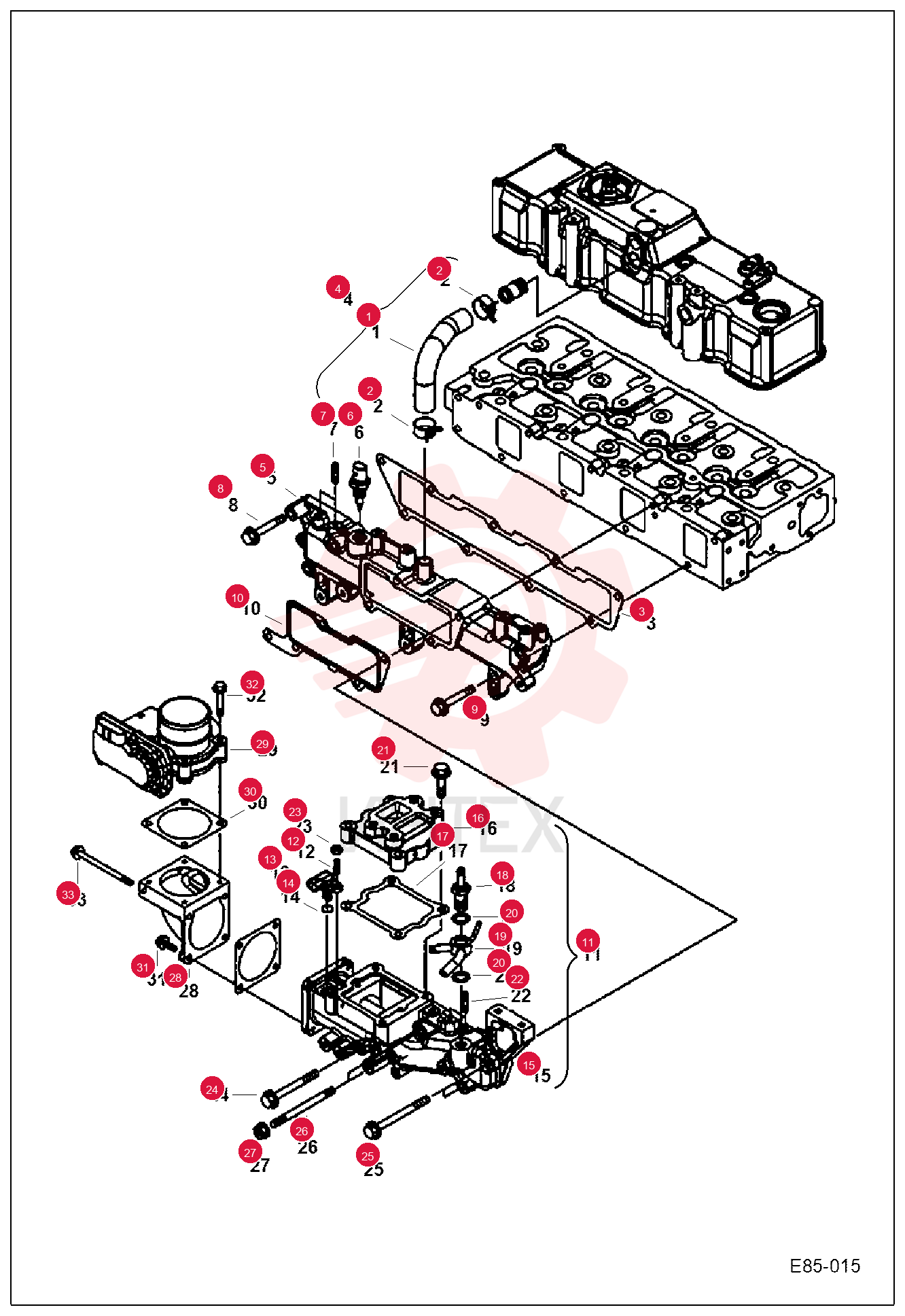

HOSE, INTAKE 7028824 (1)

HOSE, INTAKE 7028824 (1)

HOSE, INTAKE 7028824 (1)

1 7028824

  • 7028824 - HOSE
  • INTAKE
  • W/Ref. 2

2 7028884

  • 7028884 - CLAMP

3 7029049

  • 7029049 - GASKET
  • MANIFOLD INTAKE

4 7028818

  • 7028818 - MANIFOLD
  • INTAKE ASSY
  • W/Ref. 5-7

5 7029225

  • 7029225 - MANIFOLD
  • INTAKE

6 7029379

  • 7029379 - SENSOR
  • AIR TEMP

7 7004336

  • 7004336 - BOLT STUD

8 7004080

  • 7004080 - BOLT PLATED M8X45

9 7004096

  • 7004096 - BOLT PLATED M8X55

10 7029040

  • 7029040 - GASKET
  • INTAKE MANIFOLD

11 7028919

  • 7028919 - MANIFOLD
  • INTAKE
  • W/Ref. 12-33

12 7029437

  • 7029437 - STUD

13 7029378

  • 7029378 - SENSOR
  • AIR TEMP
  • W/Ref. 14

14 7029333

  • 7029333 - O-RING

15 7028918

  • 7028918 - MANIFOLD
  • INTAKE

16 7029404

  • 7029404 - SPACER

17 7029045

  • 7029045 - GASKET
  • EGR FLANGE

18 7029216

  • 7029216 - JOINT
  • HOSE FUEL

19 7029215

  • 7029215 - JOINT
  • HOSE FUEL

20 7029365

  • 7029365 - SEAL
  • WASHER

21 7029500

  • 7029500 - BOLT

22 7004336

  • 7004336 - BOLT STUD

23 7029240

  • 7029240 - NUT

24 7007186

  • 7007186 - BOLT M8X75 PLATED

25 7007052

  • 7007052 - BOLT

26 7029433

  • 7029433 - STUD

27 7004160

  • 7004160 - NUT

28 7028694

  • 7028694 - PIPE
  • EGR

29 7029463

  • 7029463 - BODY
  • THROTTLE
  • INTAKE

30 7029051

  • 7029051 - GASKET
  • EGR PIPE

31 7004097

  • 7004097 - BOLT M6X20

32 7029497

  • 7029497 - BOLT

33 7028703

  • 7028703 - BOLT
