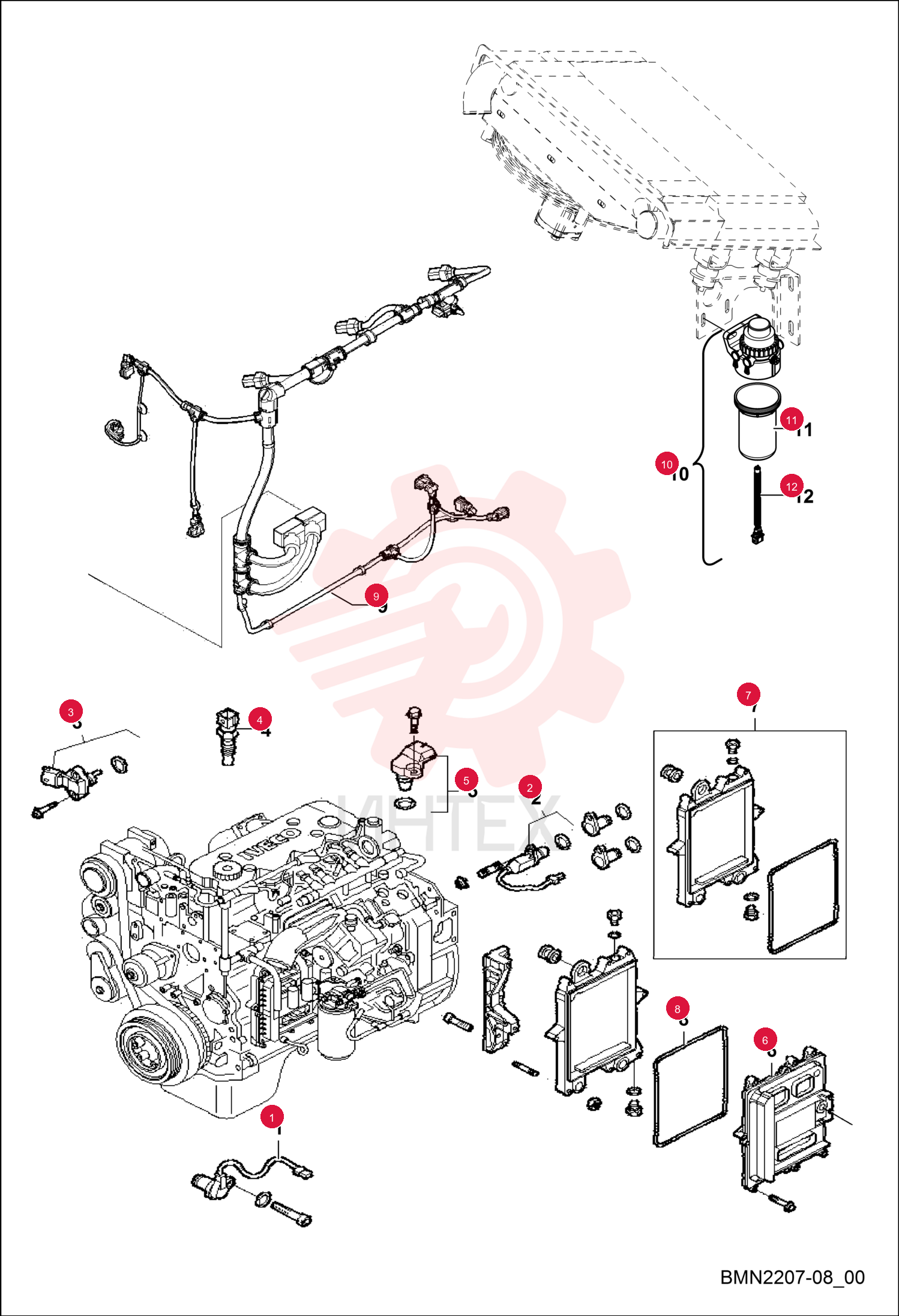

SENSOR 7279541

SENSOR 7279541

SENSOR 7279541

1 7279541

  • 7279541 - SENSOR

2 7279542

  • 7279542 - SENSOR

3 7279543

  • 7279543 - PRESSURE SWITCH

4 7279544

  • 7279544 - SENSOR

5 7279545

  • 7279545 - SENSOR

6 7279546

  • 7279546 - ECU ENGINE

7 7279547

  • 7279547 - SUPPORT

8 7279548

  • 7279548 - GASKET

9 7279549

  • 7279549 - WIRE/CABLE

10 7279550

  • 7279550 - FUEL PREFILTER

11 7279192

  • 7279192 - FUEL PREFILTER CARTRIDGE

12 7279551

  • 7279551 - SENSOR
