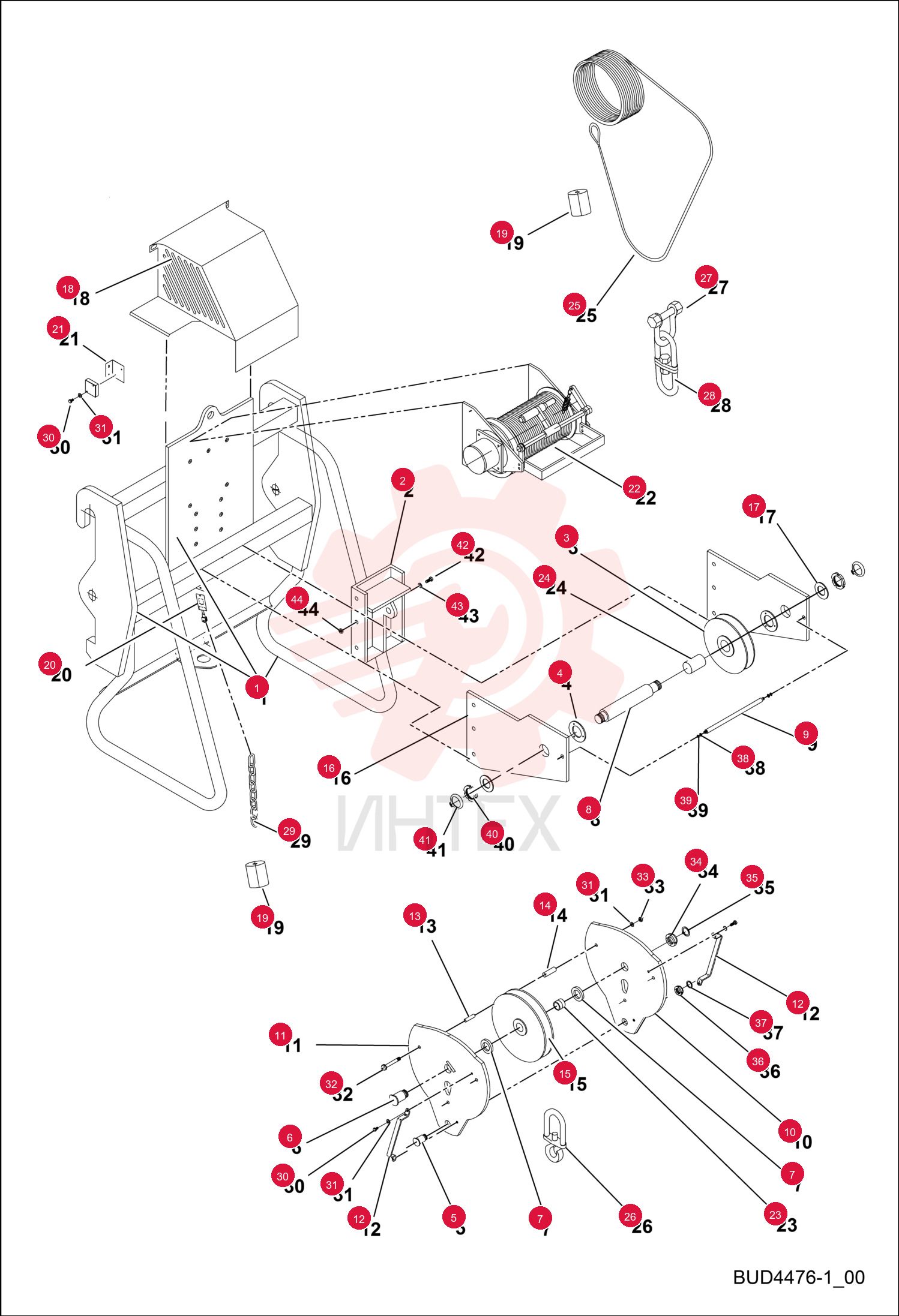

SUPPORT 7297137 (2)

SUPPORT 7297137 (2)

SUPPORT 7297137 (2)

1 7297137

  • 7297137 - SUPPORT

2 7297138

  • 7297138 - SUPPORT

3 7297139

  • 7297139 - PULLEY

4 7272339

  • 7272339 - FLANGE

5 7272340

  • 7272340 - PIN

6 7272341

  • 7272341 - PIN

7 7272342

  • 7272342 - WASHER

8 7272343

  • 7272343 - PIN

9 7272344

  • 7272344 - TIE ROD

10 7272345

  • 7272345 - SIDE

11 7272346

  • 7272346 - SIDE

12 7272347

  • 7272347 - HANDLE

13 7272348

  • 7272348 - LOOSE PULLEY

14 7272349

  • 7272349 - SPACER

15 7272350

  • 7272350 - PULLEY

16 7297141

  • 7297141 - SIDE

17 7272352

  • 7272352 - WASHER

18 7272353

  • 7272353 - COVER

19 7272354

  • 7272354 - COUNTERWEIGHT

20 7272324

  • 7272324 - PLATE

21 7272356

  • 7272356 - PLATE

22 7297142

  • 7297142 - WINCH

23 7297143

  • 7297143 - BEARING

24 7297144

  • 7297144 - BUSHING

25 7297145

  • 7297145 - ROPE

26 7297146

  • 7297146 - HOOK

27 7297147

  • 7297147 - BOLT

28 7297148

  • 7297148 - JOINT

29 7297149

  • 7297149 - CHAIN

30 7014534

  • 7014534 - SCREW

31 7018162

  • 7018162 - WASHER FLAT

32 7271532

  • 7271532 - SCREW

33 7014561

  • 7014561 - NUT
  • SELF LOCKING

34 7014565

  • 7014565 - NUT
  • CAGED

35 7020137

  • 7020137 - RING
  • SNAP

36 7014567

  • 7014567 - NUT
  • CAGED

37 7271692

  • 7271692 - SEEGER RING

38 7271558

  • 7271558 - RING NUT

39 7271691

  • 7271691 - SEEGER RING

40 7014568

  • 7014568 - NUT
  • RING

41 7271693

  • 7271693 - SEEGER RING

42 7271539

  • 7271539 - SCREW

43 7271556

  • 7271556 - WASHER

44 7014560

  • 7014560 - NUT
