Bobcat
/
V417
/

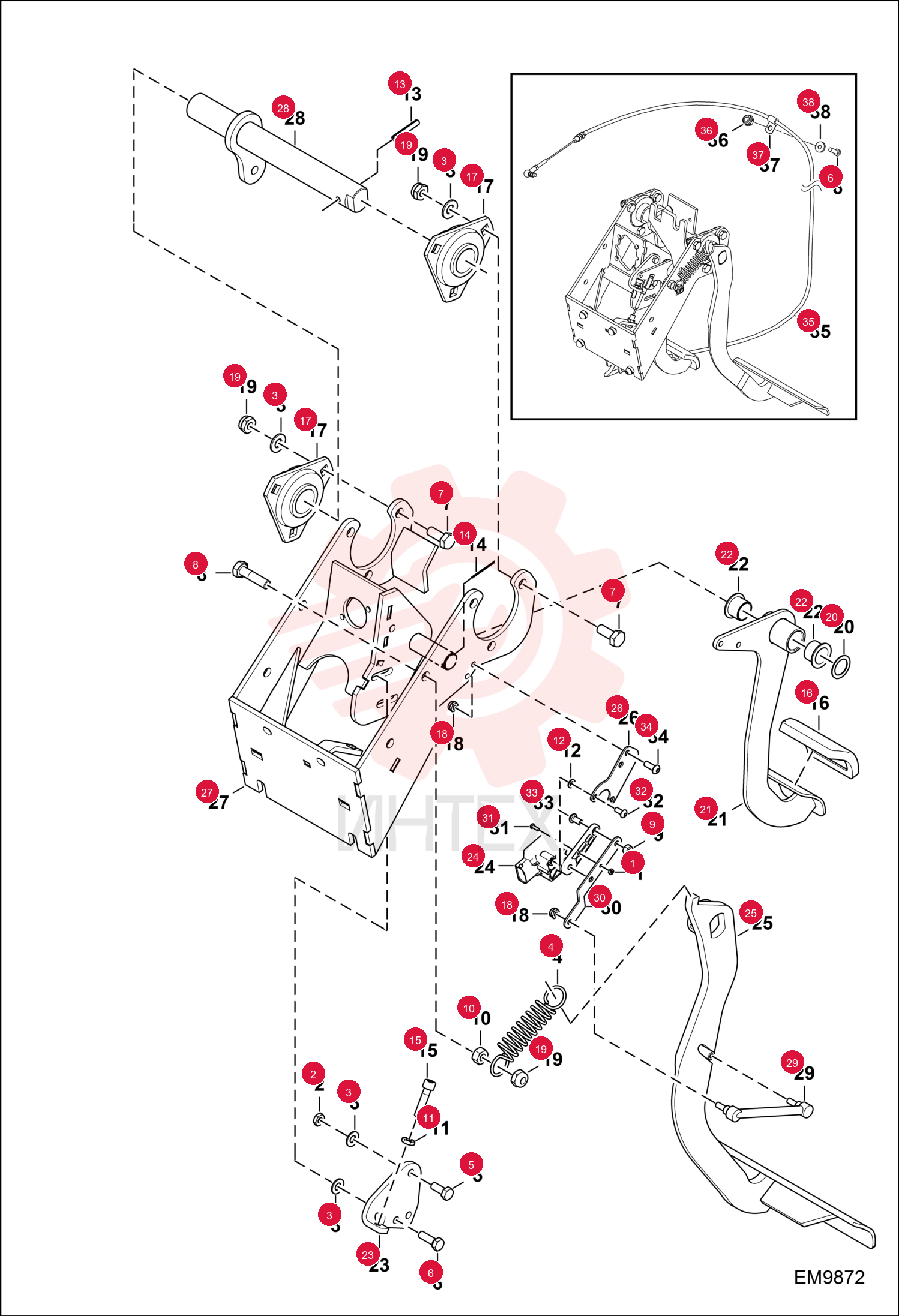

NUT 000341-05V

NUT 000341-05V

NUT 000341-05V

1 000341-05V

  • 000341-05V - NUT

2 000350-02V

  • 000350-02V - WASHER

3 000350-03W

  • 000350-03W - WASHER

4 01124-7

  • 01124-7 - SPRING

5 4CM820

  • 4CM820 - SCREW HEX HD 8.8

6 4CM825

  • 4CM825 - BOLT HEX HEAD

7 1CM1025

  • 1CM1025 - BOLT

8 1CM1040

  • 1CM1040 - BOLT

9 01666-7

  • 01666-7 - NUT

10 01669-1

  • 01669-1 - NUT

11 01681-6

  • 01681-6 - NUT

12 01695-4

  • 01695-4 - WASHER

13 01739-2

  • 01739-2 - PIN

14 01754-1

  • 01754-1 - PIN

15 33785-7

  • 33785-7 - SCREW

16 59893-8

  • 59893-8 - RUBBER PEDAL COVER

17 77919-9

  • 77919-9 - BRACKET

18 100345-06W

  • 100345-06W - NUT

19 7252655

  • 7252655 - NUT LOCK

20 6917140

  • 6917140 - WASHER

21 6917796

  • 6917796 - PEDAL

22 6917802

  • 6917802 - BRACKET

23 6922623

  • 6922623 - ABUTEMENT REGULABLE

24 6933777

  • 6933777 - HALL ANGLE SENSOR

25 6933780

  • 6933780 - BRAKE PEDAL

26 6933786

  • 6933786 - SUPPORT

27 6933822

  • 6933822 - PEDAL SUPPORT

28 6933823

  • 6933823 - PEDAL SPINDLE

29 6934676

  • 6934676 - CONNECTING ROD

30 6935818

  • 6935818 - LEVER

31 27CM310

  • 27CM310 - SCREW SKT BTN HD CAP

32 27CM512

  • 27CM512 - SCREW

33 27CM612

  • 27CM612 - SCREW

34 27CM616

  • 27CM616 - SCREW SKT BTN HD CAP

35 6946098

  • 6946098 - CABLE THROTTLE

36 53DM8

  • 53DM8 - NUT HX THDLK PREAPPL

37 30H23

  • 30H23 - CLAMP

38 01718-6

  • 01718-6 - WASHER
