V417
/

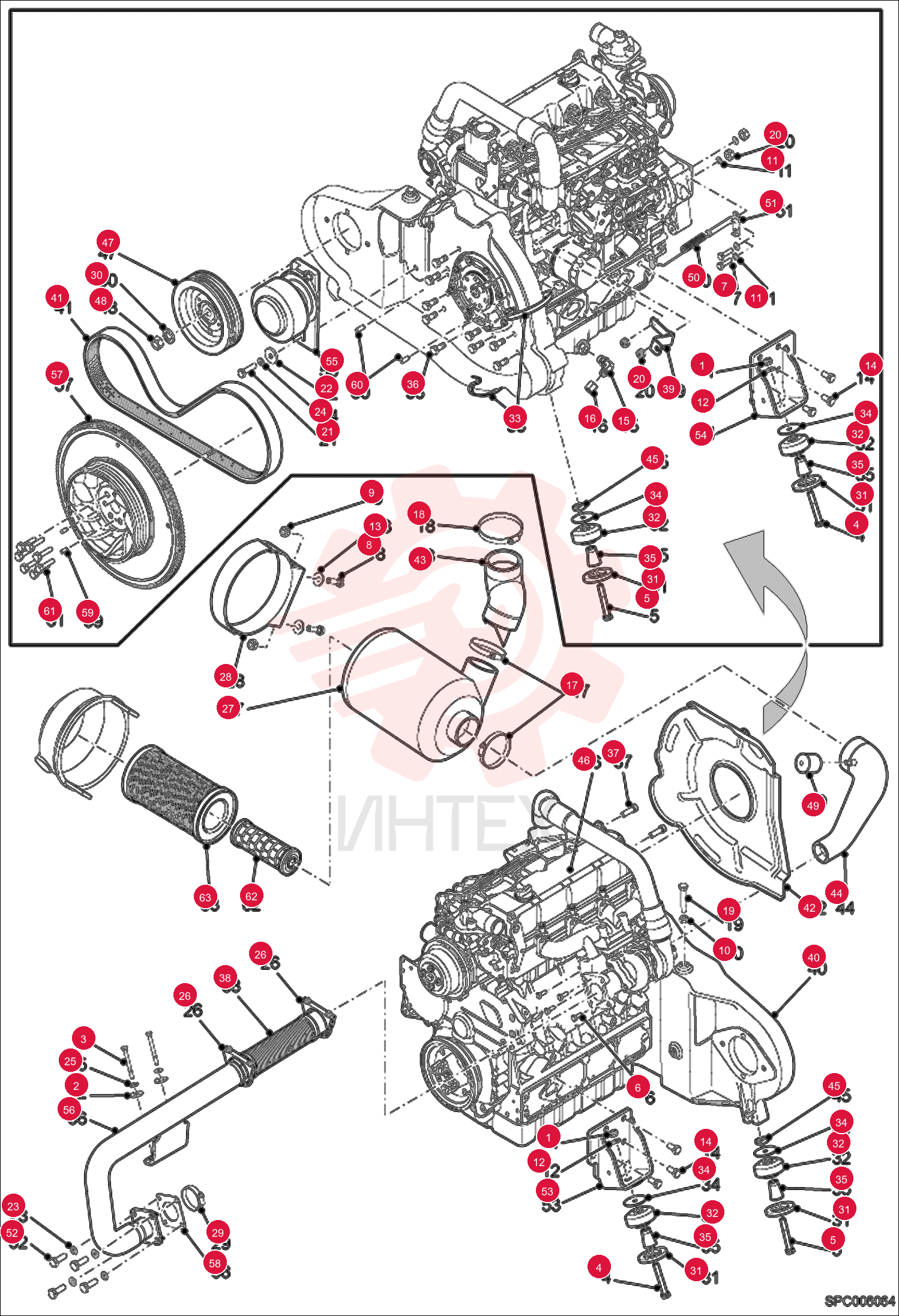

NUT 000345-96E (1)

NUT 000345-96E (1)

NUT 000345-96E (1)

1 000345-96E

  • 000345-96E - NUT

2 000350-20Q

  • 000350-20Q - WASHER

3 1CM880

  • 1CM880 - SCREW HEX HD 8.8

4 01532-1

  • 01532-1 - SCREW

5 01533-9

  • 01533-9 - SCREW

6 01578-4

  • 01578-4 - SCREW

7 4CM825

  • 4CM825 - BOLT HEX HEAD

8 01598-2

  • 01598-2 - SCREW

9 4DM8

  • 4DM8 - NUT HEX

10 01670-9

  • 01670-9 - NUT

11 01697-2

  • 01697-2 - WASHER

12 1EM120

  • 1EM120 - WASHER

13 01718-6

  • 01718-6 - WASHER

14 006330-26W

  • 006330-26W - SCREW

15 7299361

  • 7299361 - CAP
  • HYD

16 35949-7

  • 35949-7 - COLLAR

17 38683-9

  • 38683-9 - COLLAR

18 4CM1270

  • 4CM1270 - SCREW

19 01681-6

  • 01681-6 - NUT

20 7CM1245

  • 7CM1245 - BOLT

21 78476-9

  • 78476-9 - WASHER

22 7225260

  • 7225260 - WASHER

23 89517-7

  • 89517-7 - WASHER

24 89519-3

  • 89519-3 - WASHER

25 95783-7

  • 95783-7 - MUFFLER COLLAR
  • FLANGE 8

26 97746-2

  • 97746-2 - FILTER
  • AIR

27 7166418

  • 7166418 - HOLDER AIR FILTER

28 42HS30

  • 42HS30 - CLAMP
  • HOSE

29 6576033

  • 6576033 - WASHER 5

30 6661787

  • 6661787 - WASHER SNUBBING

31 6668104

  • 6668104 - MOUNT
  • ENG

32 6701160

  • 6701160 - SPRING
  • DRIVE

33 6705106

  • 6705106 - WASHER 5

34 6715287

  • 6715287 - TUBE SPCR

35 6719828

  • 6719828 - BOLT

36 6925002

  • 6925002 - SCREW

37 6915352

  • 6915352 - EXHAUST HOSE

38 6917157

  • 6917157 - SUPPORT

39 6920443

  • 6920443 - BELL HOUSING

40 6925914

  • 6925914 - BELT

41 6920445

  • 6920445 - SHIELD

42 6920460

  • 6920460 - HOSE

43 6920461

  • 6920461 - HOSE

44 6920462

  • 6920462 - NUT

45 6921608

  • 6921608 - PULLEY

46 6921612

  • 6921612 - NUT

47 6922311

  • 6922311 - INDICATOR

48 6922618

  • 6922618 - SPRING

49 6922630

  • 6922630 - ROD
  • TIE

50 6923568

  • 6923568 - SCREW

51 6925278

  • 6925278 - ENGINE SUPPORT

52 6925281

  • 6925281 - ENGINE SUPPORT

53 6933054

  • 6933054 - PULLEY IDLER ASSY

54 6965261

  • 6965261 - PIPE

55 7100859

  • 7100859 - FLYWHEEL ENGINE ASSEMBLY

56 7102747

  • 7102747 - GASKET

57 14J3112

  • 14J3112 - PIN

58 20JM1025

  • 20JM1025 - DOWEL PIN

59 6680747

  • 6680747 - BOLT
  • FLYWHEEL

60 6910726

  • 6910726 - FILTER
  • AIR INNER

61 6910725

  • 6910725 - FILTER
  • AIR OUTER
