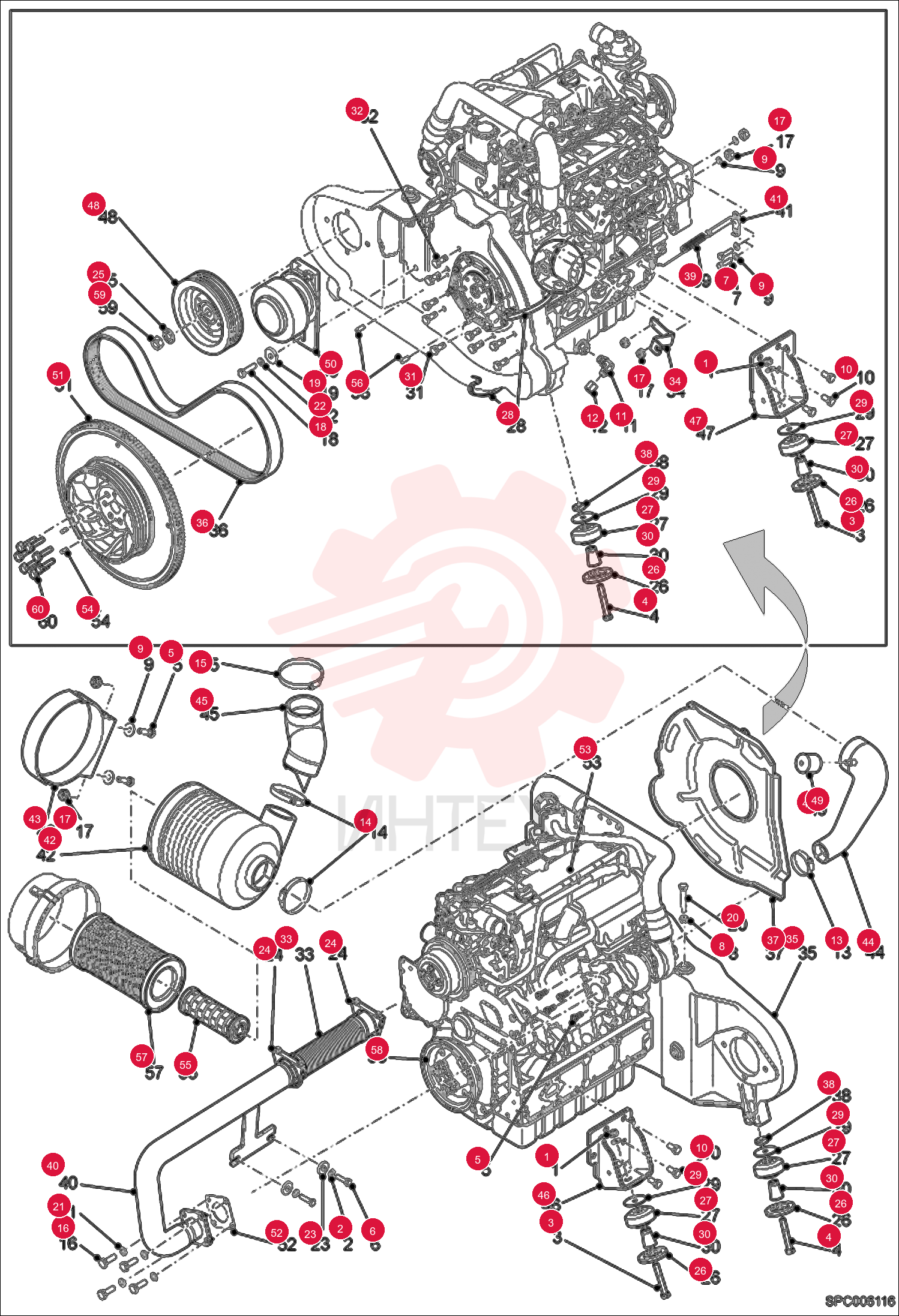

NUT 000345-96E (2)

NUT 000345-96E (2)

NUT 000345-96E (2)

1 000345-96E

  • 000345-96E - NUT

2 000350-20Q

  • 000350-20Q - WASHER

3 01532-1

  • 01532-1 - SCREW

4 01533-9

  • 01533-9 - SCREW

5 01578-4

  • 01578-4 - SCREW

6 4CM825

  • 4CM825 - BOLT HEX HEAD

7 1CM840

  • 1CM840 - SCREW HEX CAP

8 01683-2

  • 01683-2 - NUT
  • HM M 12

9 01697-2

  • 01697-2 - WASHER

10 006330-26W

  • 006330-26W - SCREW

11 7299361

  • 7299361 - CAP
  • HYD

12 29713-5

  • 29713-5 - COLLAR

13 42H52

  • 42H52 - CLAMP

14 38683-9

  • 38683-9 - COLLAR

15 6923568

  • 6923568 - SCREW

16 53DM8

  • 53DM8 - NUT HX THDLK PREAPPL

17 7CM1245

  • 7CM1245 - BOLT

18 78476-9

  • 78476-9 - WASHER

19 4CM1270

  • 4CM1270 - SCREW

20 7225260

  • 7225260 - WASHER

21 89517-7

  • 89517-7 - WASHER

22 89519-3

  • 89519-3 - WASHER

23 95783-7

  • 95783-7 - MUFFLER COLLAR
  • FLANGE 8

24 6576033

  • 6576033 - WASHER 5

25 6661787

  • 6661787 - WASHER SNUBBING

26 6661785

  • 6661785 - MOUNT ENGINE

27 6701160

  • 6701160 - SPRING
  • DRIVE

28 6705106

  • 6705106 - WASHER 5

29 6715287

  • 6715287 - TUBE SPCR

30 6719828

  • 6719828 - BOLT

31 6925002

  • 6925002 - SCREW

32 6915352

  • 6915352 - EXHAUST HOSE

33 6917157

  • 6917157 - SUPPORT

34 6920443

  • 6920443 - BELL HOUSING

35 6925914

  • 6925914 - BELT

36 6920445

  • 6920445 - SHIELD

37 6920462

  • 6920462 - NUT

38 6922618

  • 6922618 - SPRING

39 6922627

  • 6922627 - PIPE ECHAPPEMENT

40 6922630

  • 6922630 - ROD
  • TIE

41 6924871

  • 6924871 - AIR CLEANER

42 6924872

  • 6924872 - COLLAR

43 6924876

  • 6924876 - HOSE

44 6925278

  • 6925278 - ENGINE SUPPORT

45 6925281

  • 6925281 - ENGINE SUPPORT

46 6921608

  • 6921608 - PULLEY

47 7233684

  • 7233684 - SENSOR RESTRICTION

48 6933054

  • 6933054 - PULLEY IDLER ASSY

49 7100859

  • 7100859 - FLYWHEEL ENGINE ASSEMBLY

50 7102747

  • 7102747 - GASKET

51 7141592

  • 7141592 - ENGINE V3800 75 HP EPA T3 / EU STG IIIA

52 14J3112

  • 14J3112 - PIN

53 75687-4

  • 75687-4 - SECONDARY AIR FILTER

54 20JM1025

  • 20JM1025 - DOWEL PIN

55 75686-6

  • 75686-6 - FILTER
  • AIR

56 6927129

  • 6927129 - TAPE ROD

57 6921612

  • 6921612 - NUT

58 6680747

  • 6680747 - BOLT
  • FLYWHEEL
