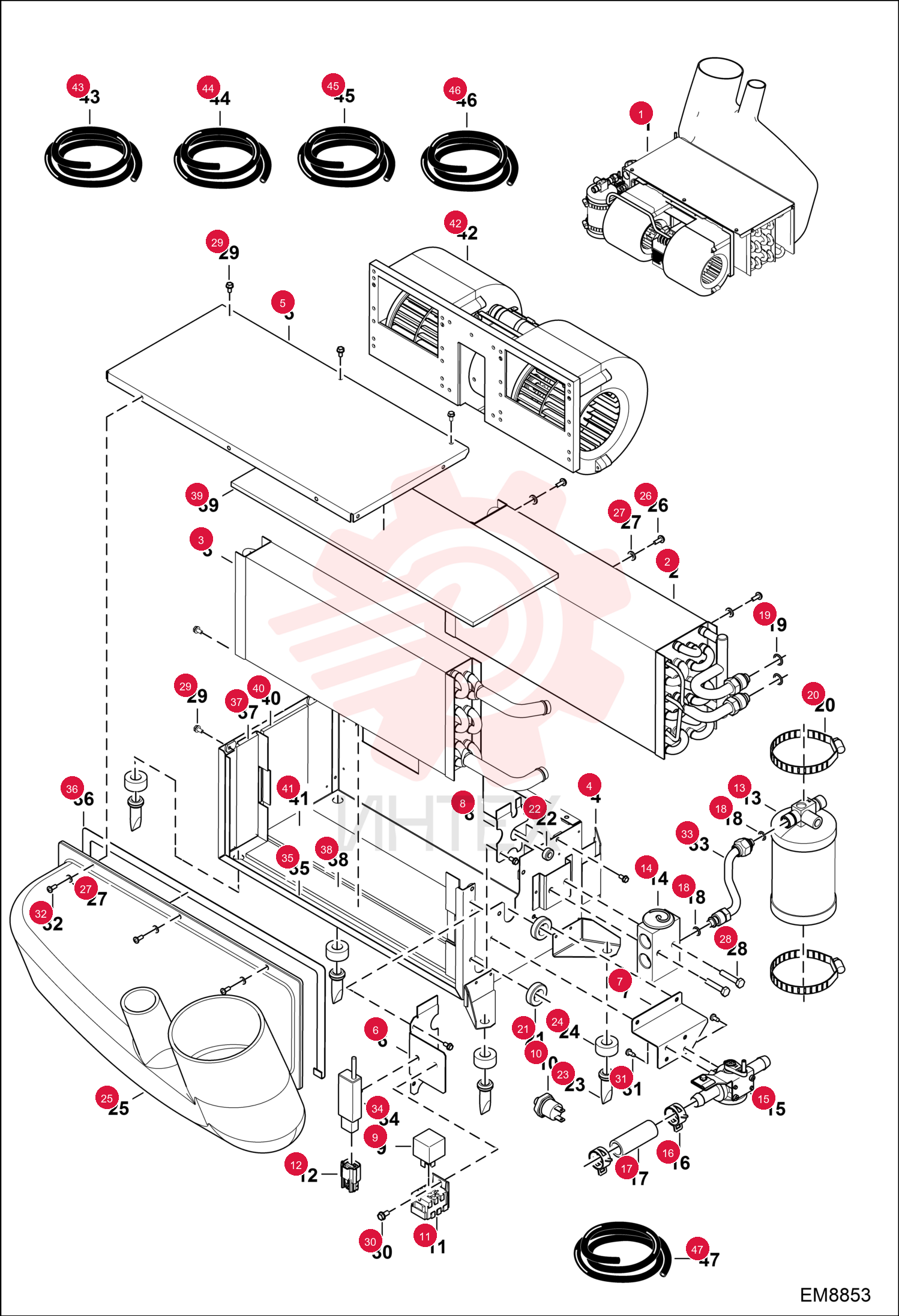

COIL EVAPORATOR 7022151

COIL EVAPORATOR 7022151

COIL EVAPORATOR 7022151

1 7022151

  • 7022151 - COIL EVAPORATOR

2 7022125

  • 7022125 - COIL HEATER

3 7022126

  • 7022126 - HOUSING

4 7022127

  • 7022127 - COVER

5 7022128

  • 7022128 - PLATE

6 7022129

  • 7022129 - BRACKET

7 7022130

  • 7022130 - PLATE

8 7022131

  • 7022131 - RELAY ELECTRICAL

9 7022152

  • 7022152 - SENSOR PRESS

10 7022132

  • 7022132 - HARNESS

11 7022153

  • 7022153 - HARNESS

12 6674235

  • 6674235 - RECEIVER
  • DRIER A/C

13 6675534

  • 6675534 - BLOCK
  • VALVE A/C

14 7217229

  • 7217229 - HEATER CONTROL VALVE

15 6676629

  • 6676629 - CLAMP

16 7009976

  • 7009976 - O-RING

17 7009977

  • 7009977 - O-RING

18 7022154

  • 7022154 - CLAMP

19 6684946

  • 6684946 - GROMMET

20 6684947

  • 6684947 - GROMMET

21 7018001

  • 7018001 - VALVE
  • DRAIN

22 7015456

  • 7015456 - GASKET

23 7022135

  • 7022135 - COLLECTOR

24 7010401

  • 7010401 - SCREW

25 6693223

  • 6693223 - WASHER

26 6691534

  • 6691534 - SCREW

27 6677580

  • 6677580 - SCREW

28 6691532

  • 6691532 - SCREW

29 7022136

  • 7022136 - BOLT

30 7022137

  • 7022137 - BOLT

31 7022155

  • 7022155 - TUBE DRAIN

32 7022156

  • 7022156 - THERMOSTAT ASSY

33 7022124

  • 7022124 - BLOWER HVAC

34 6696953

  • 6696953 - FOAM

35 7022138

  • 7022138 - INSULATION

36 6675614

  • 6675614 - INSULATION

37 7010406

  • 7010406 - INSULATION
  • HEATER

38 6684944

  • 6684944 - HEATER HOSE
