Bobcat
/
V723
/

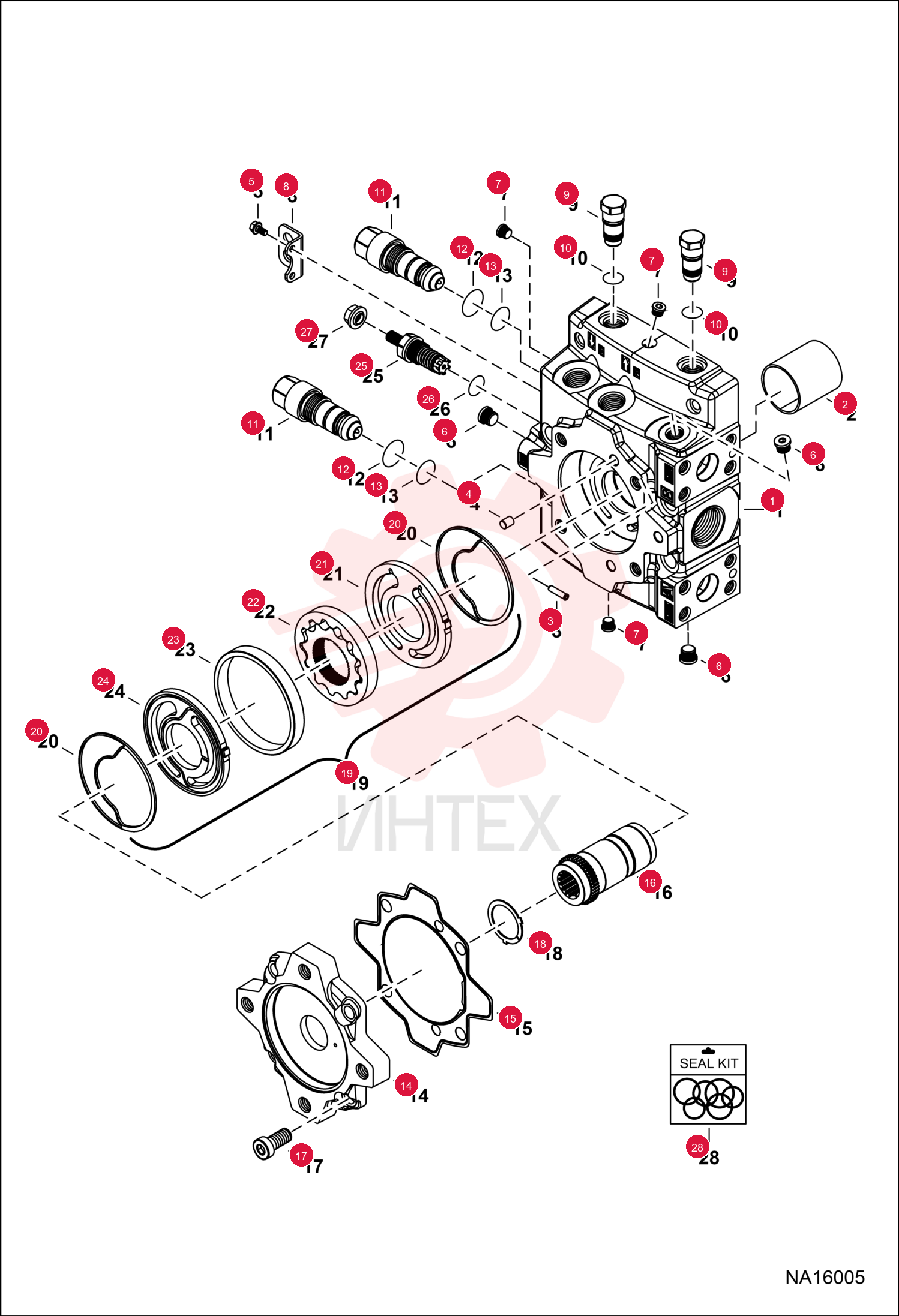

CAP END ASSY 7021888

CAP END ASSY 7021888

CAP END ASSY 7021888

1 7021888

  • 7021888 - CAP END ASSY

2 7031417

  • 7031417 - BUSHING

3 7021890

  • 7021890 - ORIFICE

4 6518460

  • 6518460 - PIN

5 6921543

  • 6921543 - SCREW

6 6921561

  • 6921561 - PLUG

7 7022520

  • 7022520 - PLUG

8 6645066

  • 6645066 - BRK.LIFT

9 7021904

  • 7021904 - PLUG PRESSURE

10 7021905

  • 7021905 - O-RING

11 7031340

  • 7031340 - VALVE
  • ASSY

12 7031339

  • 7031339 - O-RING

13 7021903

  • 7021903 - O-RING

14 7008841

  • 7008841 - ADAPTER FLANGE
  • SAE B

15 7021899

  • 7021899 - SEAL

16 7021900

  • 7021900 - COUPLING ELEMENT

17 7008866

  • 7008866 - SCREW

18 7008840

  • 7008840 - THRUST PLATE

19 7021906

  • 7021906 - CHARGE PUMP KIT

20 7031420

  • 7031420 - SEAL

21 7008874

  • 7008874 - CHARGE RELIEF VALVE KIT

22 7024698

  • 7024698 - O-RING

23 7031341

  • 7031341 - NUT

24 7353668

  • 7353668 - KIT SEAL
