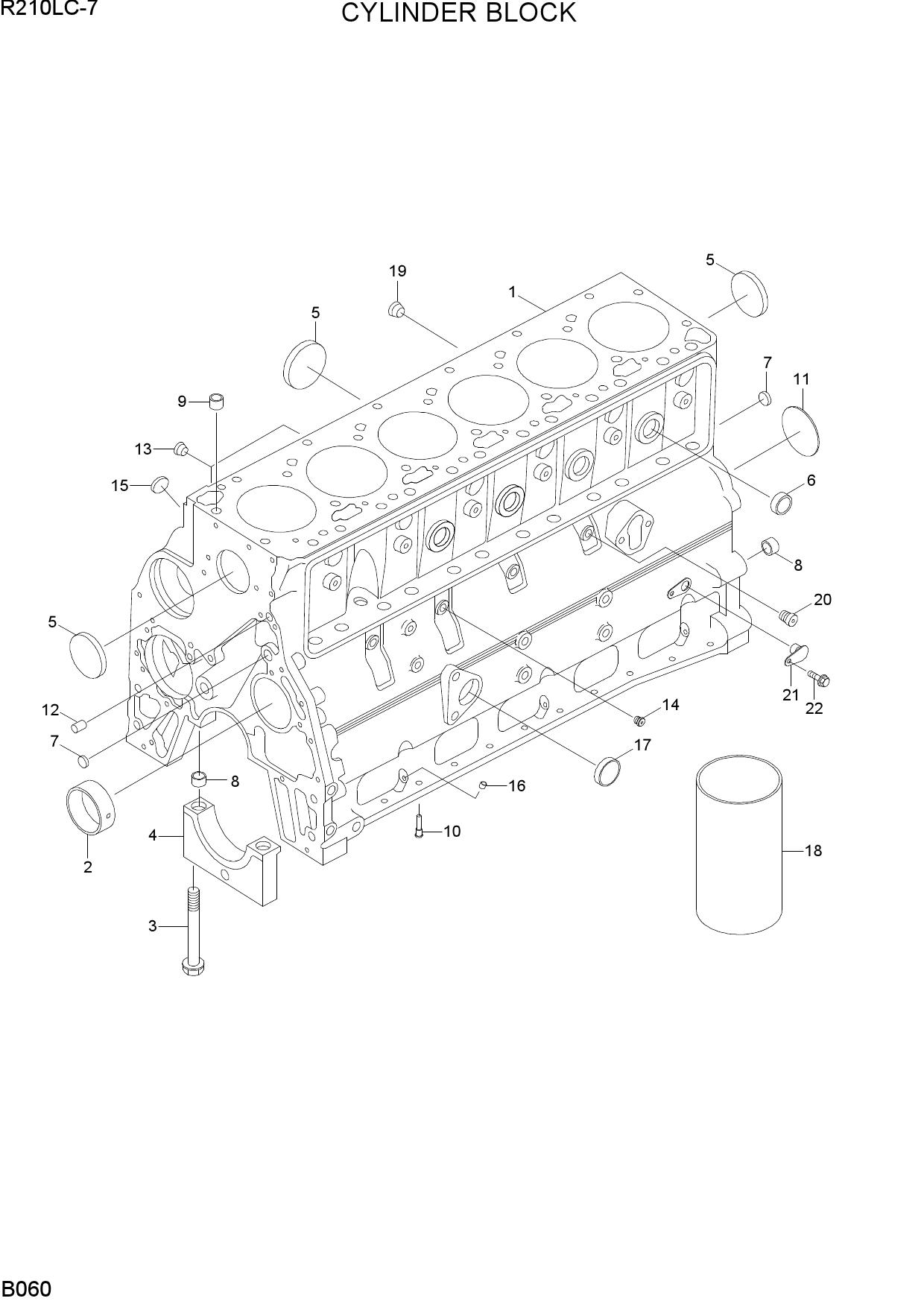

CYLINDER BLOCK

CYLINDER BLOCK

CYLINDER BLOCK

1 XKDE-00897

  • XKDE-00897 - BUSHING
  • Поз.: 2

2 XKDE-01369

  • XKDE-01369 - SCREW-HEX F/HEAD CAP
  • Поз.: 3

3 XKDE-00910

  • XKDE-00910 - CAP-MAIN BEARING
  • Поз.: 4

4 XKDE-02173

  • XKDE-02173 - PLUG-EXPANSION
  • Поз.: 5

5 XKDE-00730

  • XKDE-00730 - PLUG-EXPANSION
  • Поз.: 6

6 XKDE-00051

  • XKDE-00051 - PLUG-EXPANSION
  • Поз.: 7

7 XKDE-01051

  • XKDE-01051 - DOWEL-RING
  • Поз.: 8

8 XKDE-01050

  • XKDE-01050 - DOWEL-RING
  • Поз.: 9

9 XKDE-01237

  • XKDE-01237 - NOZZLE-PISTON COOLING
  • Поз.: 10

10 XKDE-01288

  • XKDE-01288 - PLUG-EXPANSION
  • Поз.: 11

11 XKDE-00025

  • XKDE-00025 - DOWEL-PIN
  • Поз.: 12

12 XKDE-02401

  • XKDE-02401 - PLUG-PIPE
  • Поз.: 13

13 XKDE-00022

  • XKDE-00022 - PLUG-THREADED
  • Поз.: 14

14 XKDE-00294

  • XKDE-00294 - PLUG-EXPANSION
  • Поз.: 15

15 XKDE-01051

  • XKDE-01051 - DOWEL-RING
  • Поз.: 8

16 XKDE-01289

  • XKDE-01289 - PLUG-EXPANSION
  • Поз.: 16

17 XKDE-01286

  • XKDE-01286 - PLUG-EXPANSION
  • Поз.: 17

18 XKDE-02013

  • XKDE-02013 - PLUG-PIPE
  • Поз.: 19

19 XKDE-00019

  • XKDE-00019 - PLUG-THREADED
  • Поз.: 20

20 XKDE-01291

  • XKDE-01291 - PLUG
  • O RING
  • Поз.: 21

21 XKDE-01375

  • XKDE-01375 - SCREW-HEX F/HEAD CAP
  • Поз.: 22

22 XKDE-02402

  • XKDE-02402 - BUSHING
  • Поз.: 2

23 XKDE-02403

  • XKDE-02403 - BUSHING
  • Поз.: 2

24 XKDE-02404

  • XKDE-02404 - CAP-MAIN BEARING
  • Поз.: 4

25 XKDE-02405

  • XKDE-02405 - SLEEVE-SALVAGE
  • Поз.: 18
