(SK235SR-1E) - SHORT RADIUS EXCAVATOR ASN YF04-01501 (1/03-12/04)
/

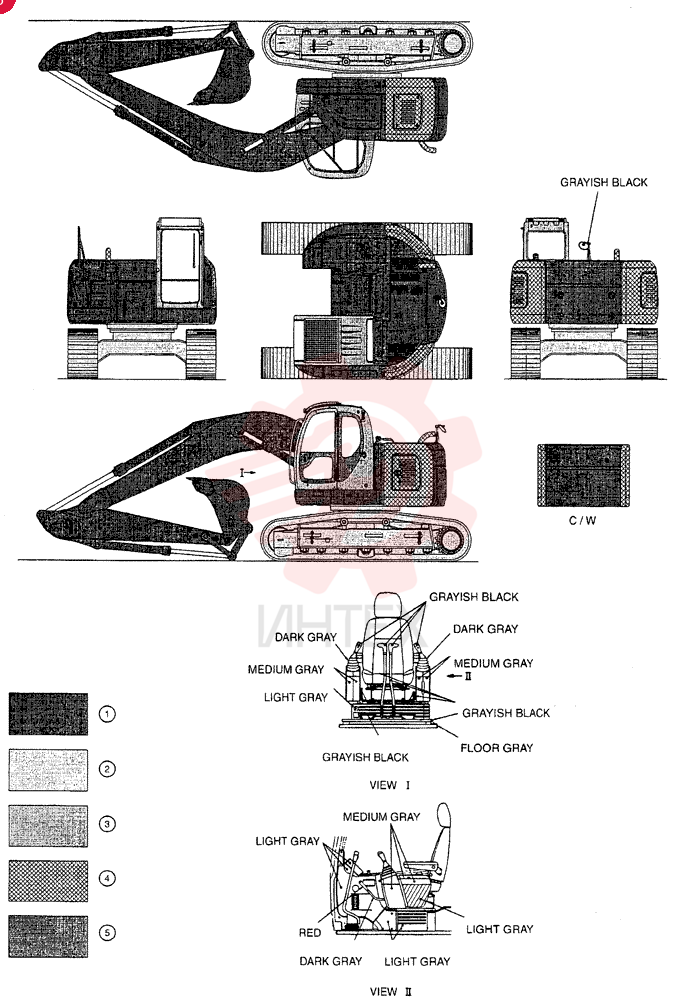

POLY URETHANE 16kg CAN, BLUE GREEN, BODY, NORMAL DRYING YT09T00001D4 (300 mml)

POLY URETHANE 16kg CAN, BLUE GREEN, BODY, NORMAL DRYING YT09T00001D4 (300 mml)

POLY URETHANE 16kg CAN, BLUE GREEN, BODY, NORMAL DRYING YT09T00001D4 (300 mml)

1 YT09T00001D1

  • YT09T00001D1 - POLY URETHANE 16kg CAN
  • BLUE GREEN
  • BODY
  • NORMAL DRYING YT09T00001D4 (300 mml)

2 YT09T00001D2

  • YT09T00001D2 - SPARE PART

3 YT09T00001D3

  • YT09T00001D3 - SPARE PART

4 YT09T00001DT

  • YT09T00001DT - PAINT

5 YT09T00001DU

  • YT09T00001DU - PAINT

6 YN09T00003D5

  • YN09T00003D5 - NORMAL DRYING 16kg CAN
  • LOW GRAY
  • LOW
  • NORMAL DRYING YN09T00003D8 (300 mml)

7 YN09T00003D6

  • YN09T00003D6 - NORMAL DRYING 4kg CAN
  • LOW GRAY
  • LOW
  • NORMAL DRYING YN09T00003D8 (300 mml)

8 YN09T00003D7

  • YN09T00003D7 - SPARE PART

9 YT09T00001D9

  • YT09T00001D9 - BAKE 16k CAN
  • NEUTRAL GRAY 971
  • CAB
  • BAKE YT09T00001DC (300mml)

10 YT09T00001DA

  • YT09T00001DA - BAKE 16k CAN
  • NEUTRAL GRAY 971
  • CAB
  • BAKE YT09T00001DC (300mml)

11 YT09T00001DB

  • YT09T00001DB - BAKE 16k CAN
  • NEUTRAL GRAY 971
  • CAB
  • BAKE YT09T00001DC (300mml)

12 YT09T00001D5

  • YT09T00001D5 - POLY URETHANE 16kg CAN
  • DARK GRAY 971
  • GUARD
  • COUNTER WEIGHT
  • NORMAL DRYING YT09T00001D8 (300 mml)

13 YT09T00001D6

  • YT09T00001D6 - POLY URETHANE 4kg CAN
  • DARK GRAY 971
  • GUARD
  • COUNTER WEIGHT
  • NORMAL DRYING YT09T00001D8 (300 mml)

14 YT09T00001D7

  • YT09T00001D7 - PAINT

15 YT09T00001DV

  • YT09T00001DV - PAINT

16 YT09T00001DW

  • YT09T00001DW - PAINT

17 YT09T00001DM

  • YT09T00001DM - NORMAL DRYING 16kg CAN
  • GLACE BLACK 971
  • CAB
  • DOOR
  • NORMAL DRYING YT09T00001DQ (300 mml)

18 YT09T00001DN

  • YT09T00001DN - NORMAL DRYING 4kg CAN
  • GLACE BLACK 971
  • DOOR
  • CAB
  • NORMAL DRYING YT09T00001DQ (300 mml)

19 YT09T00001DP

  • YT09T00001DP - NORMAL DRYING 1kg CAN
  • GLACE BLACK 971
  • DOOR
  • CAB
  • NORMAL DRYING YT09T00001DQ (300 mml)

20 YN09T00001DD

  • YN09T00001DD - NORMAL DRYING 16kg CAN
  • GRAYISH BLACK
  • CONTROL OPERATOR(LEVER)
  • NORMAL DRYING YN09T00001DG (300 mml)

21 YN09T00001DE

  • YN09T00001DE - NORMAL DRYING 4kg CAN
  • GRAYISH BLACK
  • CONTROL OPERATOR(LEVER)
  • NORMAL DRYING YN09T00001DG (300 mml)

22 YN09T00001DF

  • YN09T00001DF - PAINT

23 YR09T00001D5

  • YR09T00001D5 - NORMAL DRYING 16kg CAN
  • MEDIUM GRAY
  • CONTROL OPERATOR
  • NORMAL DRYING YR09T00001D8 (300 mml)

24 YR09T00001D6

  • YR09T00001D6 - NORMAL DRYING 4kg CAN
  • MEDIUM GRAY
  • CONTROL OPERATOR
  • NORMAL DRYING YR09T00001D8 (300 mml)

25 YR09T00001D7

  • YR09T00001D7 - NORMAL DRYING 1kg CAN
  • MEDIUM GRAY
  • CONTROL OPERATOR
  • NORMAL DRYING YR09T00001D8 (300 mml)

26 2421R161D80

  • 2421R161D80 - NORMAL DRYING 16kg CAN
  • LIGHT GRAY
  • CONTROL OPERATOR
  • NORMAL DRYING 2421R161D83 (300 mml)

27 2421R161D81

  • 2421R161D81 - NORMAL DRYING 4kg CAN
  • LIGHT GRAY
  • CONTROL OPERATOR
  • NORMAL DRYING 2421R161D83 (300 mml)

28 2421R161D82

  • 2421R161D82 - NORMAL DRYING 1kg CAN
  • LIGHT GRAY
  • CONTROL OPERATOR
  • NORMAL DRYING 2421R161D83 (300 mml)

29 YN09T00001DM

  • YN09T00001DM - NORMAL DRYING 16k CAN
  • FLOOR GRAY
  • FLOOR
  • NORMAL DRYING YN09T00001DQ (300 mml)

30 YN09T00001DN

  • YN09T00001DN - NORMAL DRYING 4kg CAN
  • FLOOR GRAY
  • FLOOR
  • NORMAL DRYING YN09T00001DQ (300 mml)

31 YN09T00001DP

  • YN09T00001DP - NORMAL DRYING 1kg CAN
  • FLOOR GRAY
  • FLOOR
  • NORMAL DRYING YN09T00001DQ (300 mml)

32 YN09T00001D9

  • YN09T00001D9 - NORMAL DRYING 16kg CAN
  • DARK GRAY
  • CONTROL OPERATOR
  • NORMAL DRYING YN09T00001DC (300 mml)

33 YN09T00001DA

  • YN09T00001DA - NORMAL DRYING 4kg CAN
  • DARK GRAY
  • CONTROL OPERATOR
  • NORMAL DRYING YN09T00001DC (300 mml)

34 YN09T00001DB

  • YN09T00001DB - NORMAL DRYING 1kg CAN
  • DARK GRAY
  • CONTROL OPERATOR
  • NORMAL DRYING YN09T00001DC (300 mml)
