New Holland Construction
/
(655E) - TRACTOR LOADER BACKHOE (1/96-)
/

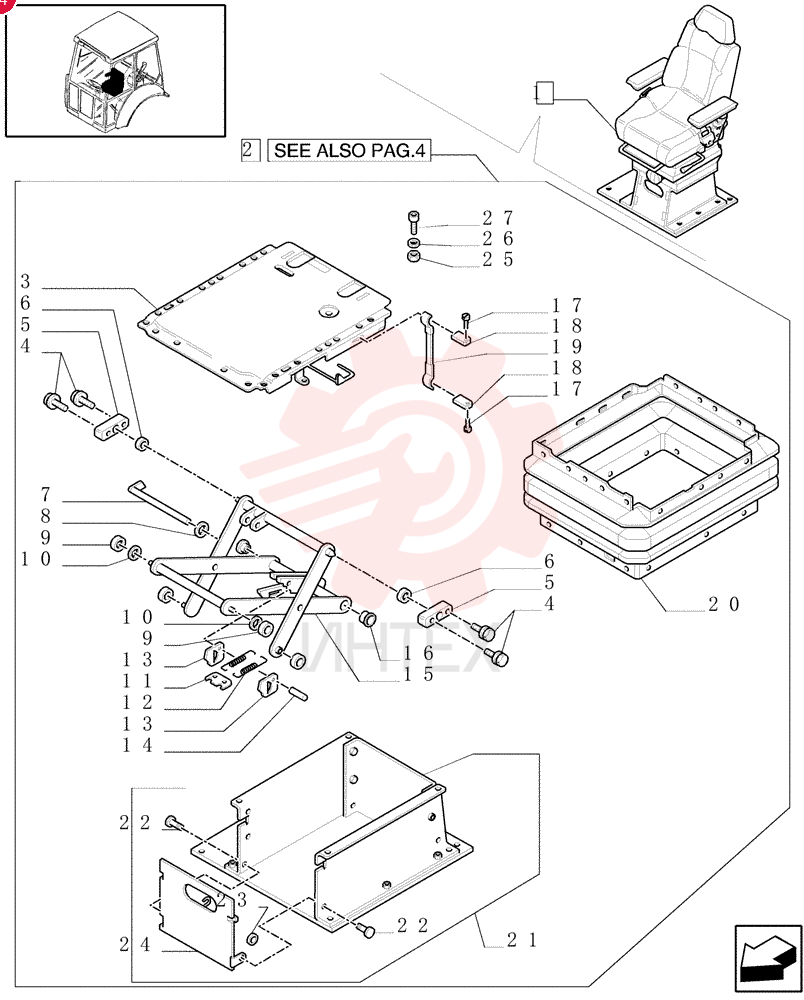

DRIVER SEAT 85815538 (5)

DRIVER SEAT 85815538 (5)

DRIVER SEAT 85815538 (5)

1 85815538

  • 85815538 - DRIVER SEAT

2 85817556

  • 85817556 - SUSPENSION

3 85817450

  • 85817450 - PLATE

4 85817444

  • 85817444 - SCREW
  • M6 x 16mm
  • M6 x 16

5 9967960

  • 9967960 - BEARING

6 85817445

  • 85817445 - BUSHING

7 85817429

  • 85817429 - PIN

8 11088076

  • 11088076 - CIRCLIP
  • M10

9 9958784

  • 9958784 - SPACER

10 85817442

  • 85817442 - BUSHING

11 9958782

  • 9958782 - PLATE

12 85817430

  • 85817430 - SPRING

13 9958792

  • 9958792 - PLATE

14 9958793

  • 9958793 - BOLT

15 85817446

  • 85817446 - SUSPENSION

16 9960755

  • 9960755 - BUSHING

17 85817448

  • 85817448 - RIVET
  • 5mm OD x 10mm L

18 85817449

  • 85817449 - PLATE

19 85817447

  • 85817447 - HANDLE

20 85817428

  • 85817428 - BELLOWS

21 85817561

  • 85817561 - BASE

22 85817559

  • 85817559 - PIN

23 85817560

  • 85817560 - WASHER

24 85817558

  • 85817558 - DOOR
  • Seat Base

25 85817458

  • 85817458 - NUT
  • M8

26 10519604

  • 10519604 - WASHER
  • 8.15mm ID x 17mm OD x 2mm Thk

27 14306321

  • 14306321 - HEX SOC SCREW
  • M8 x 20mm
  • Cl 8.8
