New Holland Construction
/
(B110) - NA BACKHOE LOADER (1/06-)
/

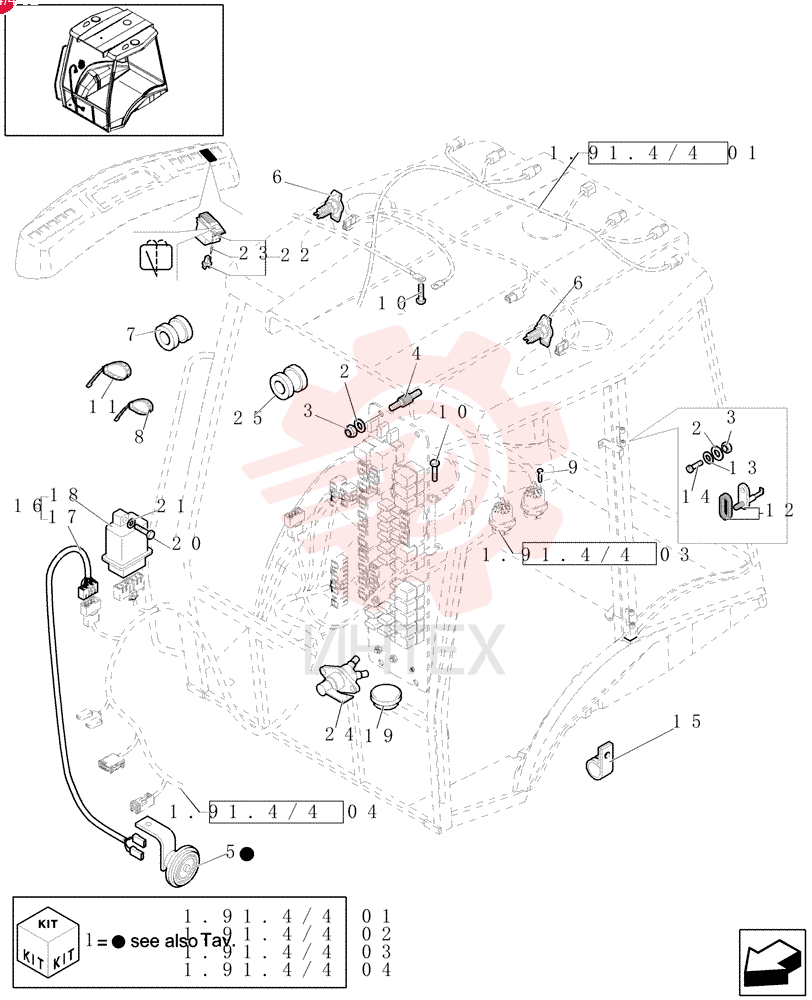

WIRE HARNESS 87406391 (5)

WIRE HARNESS 87406391 (5)

WIRE HARNESS 87406391 (5)

1 87406391

  • 87406391 - WIRE HARNESS

2 87318752

  • 87318752 -

3 10615274

  • 10615274 - LOCK WASHER
  • Ext Tooth
  • M4

4 86625075

  • 86625075 - NUT
  • M4 x 0.7
  • Cl 8

5 85802478

  • 85802478 - ISOLATOR

6 5169413

  • 5169413 - HORN

7 87546419

  • 87546419 - SOCKET
  • 12/24V
  • 16A

8 10398980

  • 10398980 - GROMMET
  • 36mm ID x 46mm GRV ø x 56mm OD x 15mm Thk

9 5112712

  • 5112712 - COLLAR
  • M4.8 x 283

10 13272214

  • 13272214 - SCREW
  • Pozidriv Pan Hd
  • M4 x 16mm
  • Cl 5.8
  • Full Thd

11 16042924

  • 16042924 - SCREW
  • Hex
  • M8 x 1.25 x 10mm
  • Cl 8.8
  • Full Thd

12 85805383

  • 85805383 - CABLE TIE

13 83961521

  • 83961521 - LIGHT SWITCH

14 10519204

  • 10519204 - WASHER
  • 4.3mm ID x 9mm OD x 0.8mm Thk

15 13309417

  • 13309417 - SCREW
  • Pozidriv Oval Hd
  • Csk
  • M4 x 20mm
  • Cl 5.8
  • Full Thd

16 10450090

  • 10450090 - CLAMP
  • 8mm
  • Coat
  • 9mm Bolt Hole
  • P Type

17 NSS

  • NSS - NOT SOLD SEPARAT

18 87410259

  • 87410259 - WIRE HARNESS

19 85806132

  • 85806132 - FLASHER UNIT

20 85808460

  • 85808460 - PLUG

21 10902624

  • 10902624 - SCREW
  • Hex
  • M6 x 25mm
  • Cl 8.8
  • Full Thd

22 11193274

  • 11193274 - BELLEVILLE WASHER
  • M6 Bolt Size x 15mm OD x 1.2mm Thk

23 85818823

  • 85818823 - SWITCH ASSY

24 14143790

  • 14143790 - BULB
  • 12V
  • 1.2W

25 87409316

  • 87409316 - SWITCH

26 10398680

  • 10398680 - GROMMET
  • 25mm ID x 33mm GRV ø x 42mm OD x 15mm Thk
