New Holland Construction
/
(B110) - NA BACKHOE LOADER (1/06-)
/

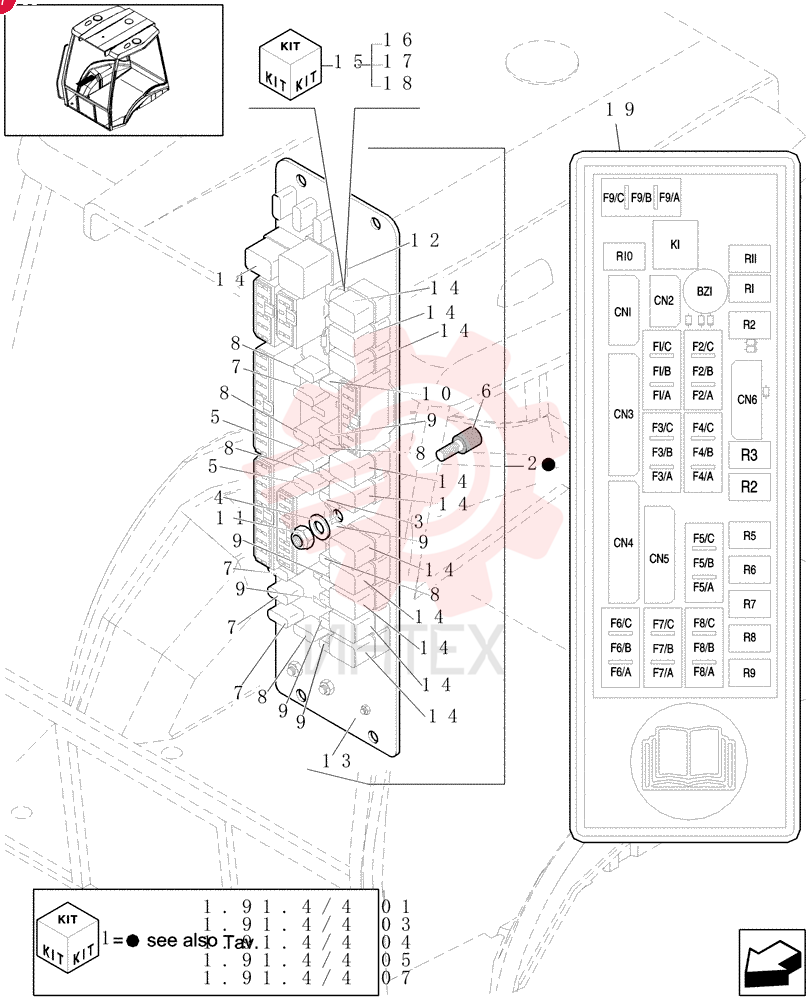

WIRE HARNESS 87406391 (6)

WIRE HARNESS 87406391 (6)

WIRE HARNESS 87406391 (6)

1 87406391

  • 87406391 - WIRE HARNESS

2 87318752

  • 87318752 -

3 87431454

  • 87431454 - PANEL

4 87609140

  • 87609140 - ECU

5 85806134

  • 85806134 - FUSE
  • 6A
  • Self-Resetting

6 10519204

  • 10519204 - WASHER
  • 4.3mm ID x 9mm OD x 0.8mm Thk

7 86503942

  • 86503942 - FUSE
  • 3A
  • Micro

8 85806135

  • 85806135 - ISOLATOR

9 87717079

  • 87717079 - FUSE
  • 7.5A

10 9811773

  • 9811773 - FUSE
  • 10A
  • Micro
  • Red

11 84090658

  • 84090658 - FUSE
  • Lt Blue
  • 15 Amp

12 9804895

  • 9804895 - FUSE
  • 20A
  • Micro
  • Yellow

13 86625075

  • 86625075 - NUT
  • M4 x 0.7
  • Cl 8

14 85803986

  • 85803986 - RELAY

15 85825504

  • 85825504 - PANEL

16 85825198

  • 85825198 - RELAY
  • Mini
  • W/ Diode

17 85826012

  • 85826012 - KIT

18 NSS

  • NSS - NOT SOLD SEPARAT

19 85826014

  • 85826014 - WIRE HARNESS

20 NSS

  • NSS - NOT SOLD SEPARAT

21 85826071

  • 85826071 - DECAL
