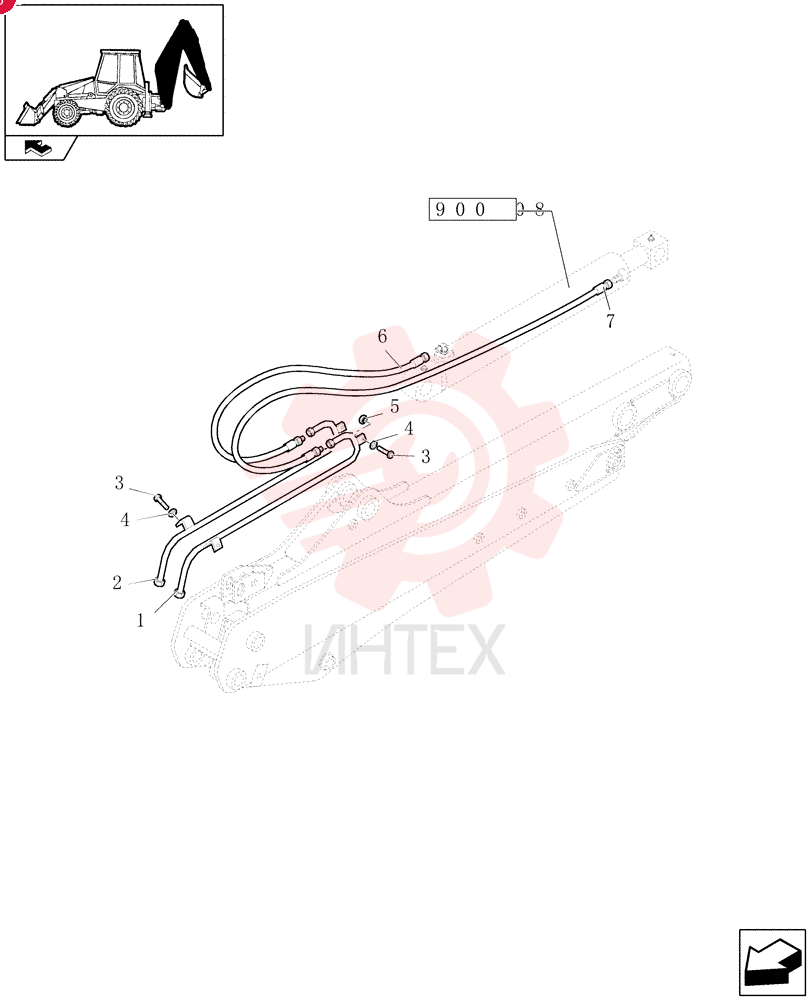

TUBE 85816815

TUBE 85816815

TUBE 85816815

1 85816815

  • 85816815 - TUBE

2 85816817

  • 85816817 - TUBE

3 16043621

  • 16043621 - BOLT
  • Hex
  • M8 x 1.25 x 25mm
  • Cl 8.8
  • Full Thd

4 11193979

  • 11193979 - BELLEVILLE WASHER
  • M8 Bolt Size x 22mm OD x 1.5mm Thk

5 14048211

  • 14048211 - NUT
  • M8 x 1.25
  • Cl 8

6 87621911

  • 87621911 - FLEXIBLE HOSE
  • 15.88mm ID x 1350mm L

7 87619511

  • 87619511 - FLEXIBLE HOSE
  • 12.7mm ID x 2220mm L
