New Holland Construction
/
(B110B) - BACKHOE LOADER - TIER 3 (11/10-)
/

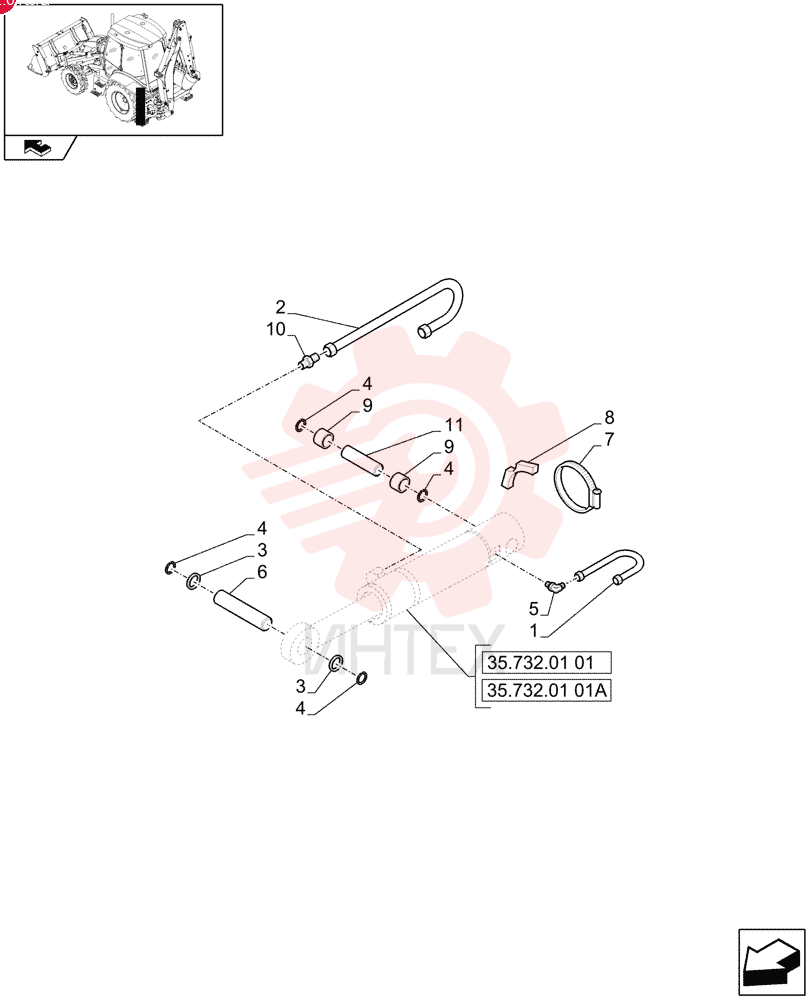

RIGID TUBE,10 mm OD

RIGID TUBE,10 mm OD

RIGID TUBE,10 mm OD

1 87573091

  • 87573091 - RIGID TUBE
  • 10 mm OD

2 84341241

  • 84341241 - RIGID TUBE

3 87573090

  • 87573090 - RIGID TUBE
  • 10 mm OD

4 83910977

  • 83910977 - SPACER
  • 45.37mm ID x 66.5mm OD x 3.5mm L

5 11069071

  • 11069071 - SNAP RING
  • M45
  • Ext

6 83961741

  • 83961741 - 90 ELBOW
  • 11/16"-16 ORFS x 9/16"-18 ORB

7 87737010

  • 87737010 - PIN

8 85803010

  • 85803010 - HOSE CLAMP
  • 80mm - 100mm

9 85813328

  • 85813328 - HOSE CLAMP

10 87643918

  • 87643918 - ANCHOR

11 87573095

  • 87573095 - ANCHOR

12 84204495

  • 84204495 - SPACER
  • 52mm ID x 57mm OD x 24.5mm Thk

13 84204494

  • 84204494 - SPACER

14 83963371

  • 83963371 - FITTING
  • 11/16"-16 ORFS x 9/16"-18 ORB

15 87376504

  • 87376504 - PIN
  • 45.1mm OD x 187mm L
