(B110B) - BACKHOE LOADER - TIER 3 (11/10-)
/

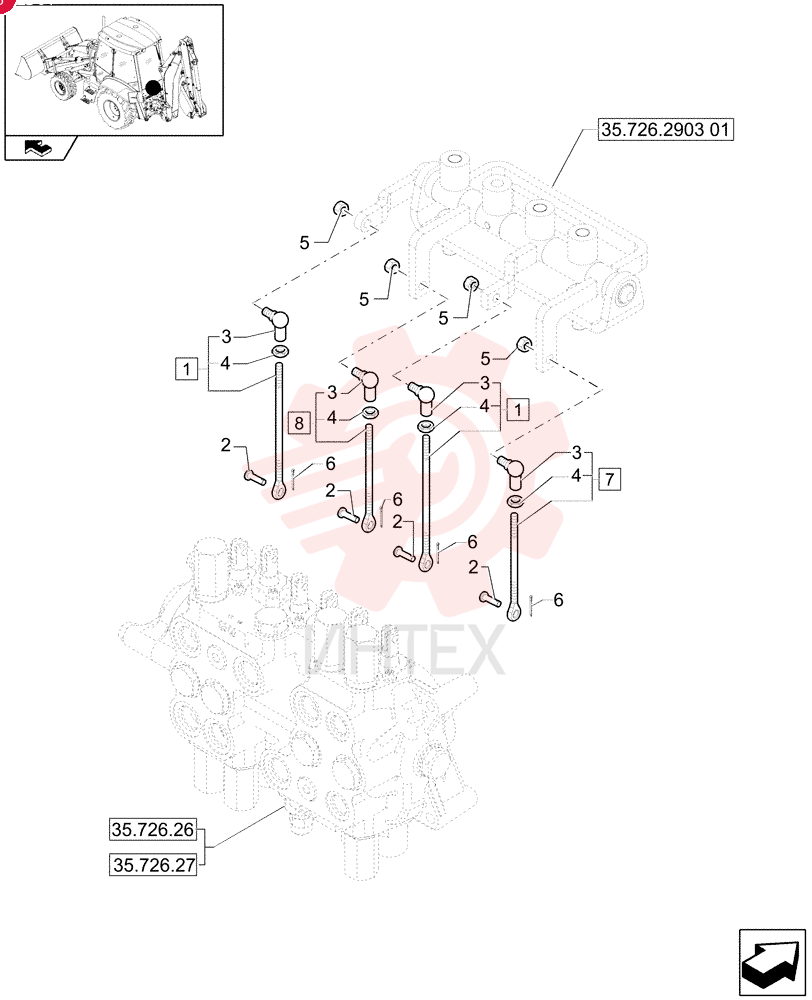

THREADED ROD,M8 x 281.7mm L

THREADED ROD,M8 x 281.7mm L

THREADED ROD,M8 x 281.7mm L

1 84175261

  • 84175261 - THREADED ROD
  • M8 x 281.7mm L

2 D149287

  • D149287 - PIN
  • 7.9mm OD x 26.72mm L

3 85804375

  • 85804375 - BALL JOINT
  • M8

4 16102311

  • 16102311 - THIN NUT
  • Thin
  • M8 x 1.25
  • Cl 04

5 87597953

  • 87597953 - NUT
  • M8
  • 1.25 Pitch
  • 10.6mm High
  • Cl 8
  • ZND

6 432-612

  • 432-612 - COTTER PIN
  • 3/32" x 3/4"

7 84175243

  • 84175243 - THREADED ROD
  • M8 x 239.9mm L

8 84175248

  • 84175248 - THREADED ROD
  • M8 x 223.1mm L
