New Holland Construction
/
(B110B) - BACKHOE LOADER - TIER 3 (11/10-)
/

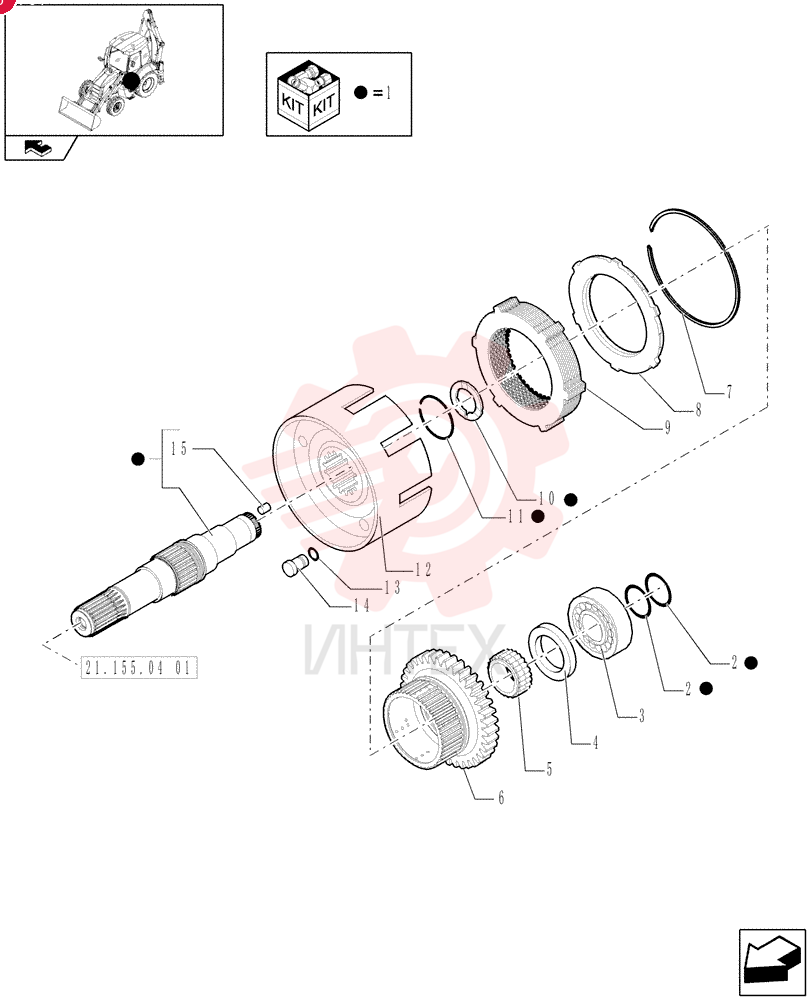

SHAFT 84174568

SHAFT 84174568

SHAFT 84174568

1 84174568

  • 84174568 - SHAFT

2 358645A1

  • 358645A1 - SEALING RING

3 181126A1

  • 181126A1 - BEARING
  • BALL
  • 45 mm ID x 85 mm OD x 19 mm

4 358635A1

  • 358635A1 - SPACER

5 358633A1

  • 358633A1 - BEARING
  • NEEDLE
  • 50mm ID x 58mm OD x 25mm W

6 87705560

  • 87705560 - GEAR
  • 41T

7 87705557

  • 87705557 - CIRCLIP
  • 156.6mm OD x 2.5mm Thk

8 87705555

  • 87705555 - CIRCLIP

9 87705554

  • 87705554 - CLUTCH OVERHAUL KIT

10 358640A1

  • 358640A1 - WASHER

11 9849963

  • 9849963 - O-RING
  • 0.103" Thk x 1.987" ID
  • -136
  • Cl 5
  • 75 Duro

12 84174569

  • 84174569 - CLUTCH

13 83944333

  • 83944333 - O-RING
  • 11.91mm ID x 2.62mm Width

14 87705551

  • 87705551 - PIN

15 139312A1

  • 139312A1 - PLUG
  • Expansion
  • 6mm OD
