(B110B) - BACKHOE LOADER - TIER 3 (11/10-)
/

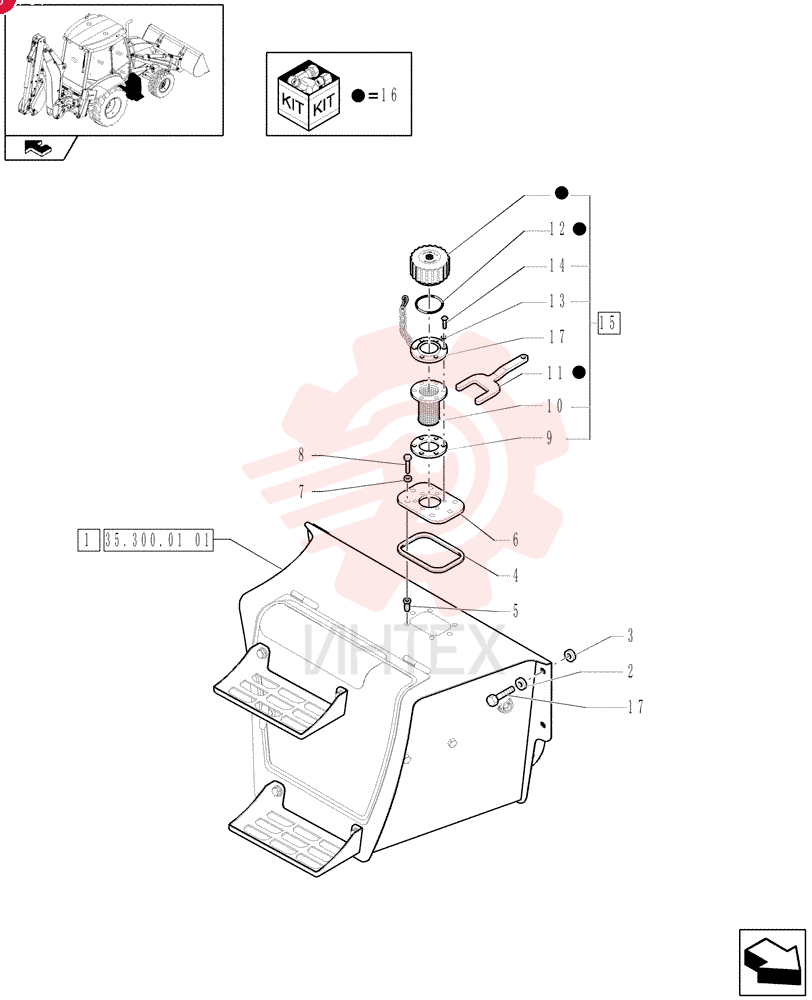

TANK 84127834 (2)

TANK 84127834 (2)

TANK 84127834 (2)

1 84127834

  • 84127834 - TANK

2 47048976

  • 47048976 - WASHER
  • 13.3mm ID x 28.5mm OD x 4mm Thk

3 87353741

  • 87353741 - SPACER
  • 13mm ID x 40mm OD x 14mm L

4 85826383

  • 85826383 - GASKET
  • 4mm Thk

5 85826382

  • 85826382 - NUT

6 85828107

  • 85828107 - PLATE

7 47048962

  • 47048962 - WASHER
  • 9mm ID x 16mm OD
  • Carbon Steel

8 16043421

  • 16043421 - BOLT
  • Hex
  • M8 x 1.25 x 20mm
  • Cl 8.8
  • Full Thd

9 9969380

  • 9969380 - SEAL

10 85802580

  • 85802580 - SPECIAL WRENCH

11 87407928

  • 87407928 - FILTER

12 85813351

  • 85813351 - O-RING

13 85813354

  • 85813354 - O-RING

14 85813353

  • 85813353 - SCREW

15 87403241

  • 87403241 - FILLER CAP

16 85813350

  • 85813350 - SERVICE KIT

17 85813352

  • 85813352 - FLANGE
