(B110B) - BACKHOE LOADER - TIER 3 (11/10-)
/

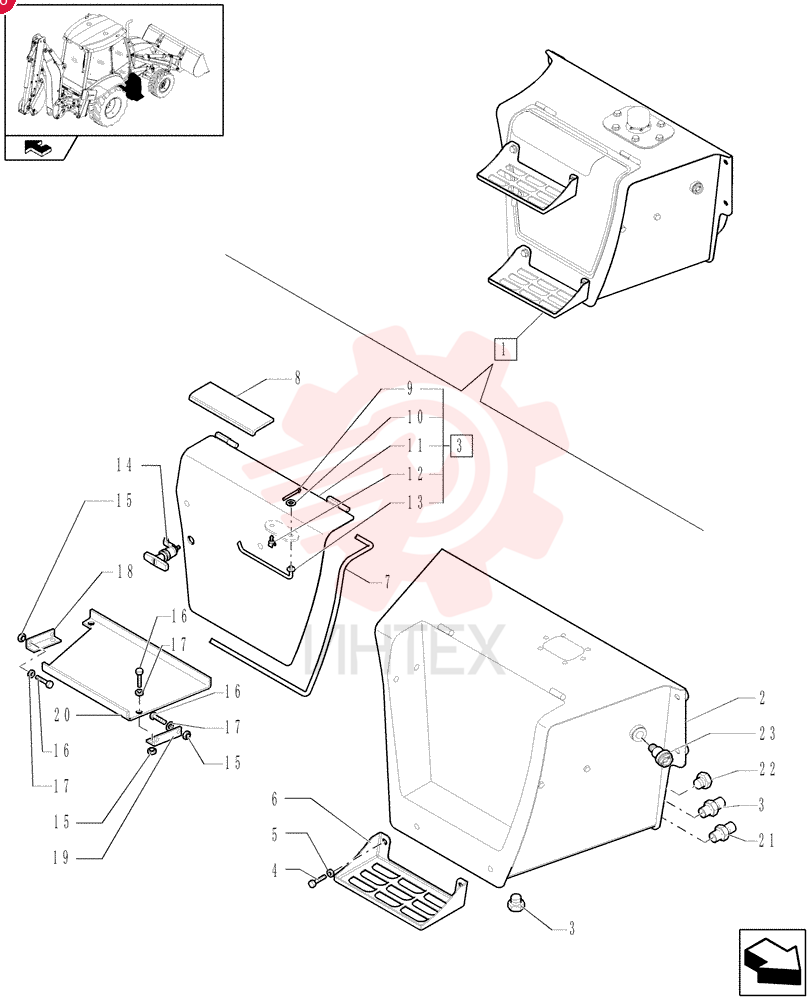

TANK 84127834 (1)

TANK 84127834 (1)

TANK 84127834 (1)

1 84127834

  • 84127834 - TANK

2 11112421

  • 11112421 - SCREW
  • Hex
  • M12 x 30mm
  • Cl 8.8

3 84127830

  • 84127830 - TANK

4 47048973

  • 47048973 - WASHER

5 85828112

  • 85828112 - COVER

6 85801218

  • 85801218 - STEP PLATE

7 87417207

  • 87417207 - RUBBER SEAL
  • 1855mm L

8 87702352

  • 87702352 - ANTI-SKID STRIP

9 47042074

  • 47042074 - COTTER PIN

10 47044758

  • 47044758 - WASHER

11 87406299

  • 87406299 - COVER

12 72273491

  • 72273491 - CLAMP

13 85828017

  • 85828017 - LEVER

14 87574189

  • 87574189 - HANDLE

15 47049041

  • 47049041 - NUT
  • Hex
  • M10 x 1.5
  • Cl 8

16 47049185

  • 47049185 - BOLT

17 47048972

  • 47048972 - WASHER
  • 10.8mm ID x 21.5mm OD x 2.5mm Thk

18 87407464

  • 87407464 - BRACKET

19 87407465

  • 87407465 - BRACKET

20 87407463

  • 87407463 - TRAY

21 85825155

  • 85825155 - HYD CONNECTOR

22 85825154

  • 85825154 - PLUG

23 85801249

  • 85801249 - LEVEL GAUGE

24 47050671

  • 47050671 - PLUG
