(B110B) - BACKHOE LOADER TIER 3 (2008)
/

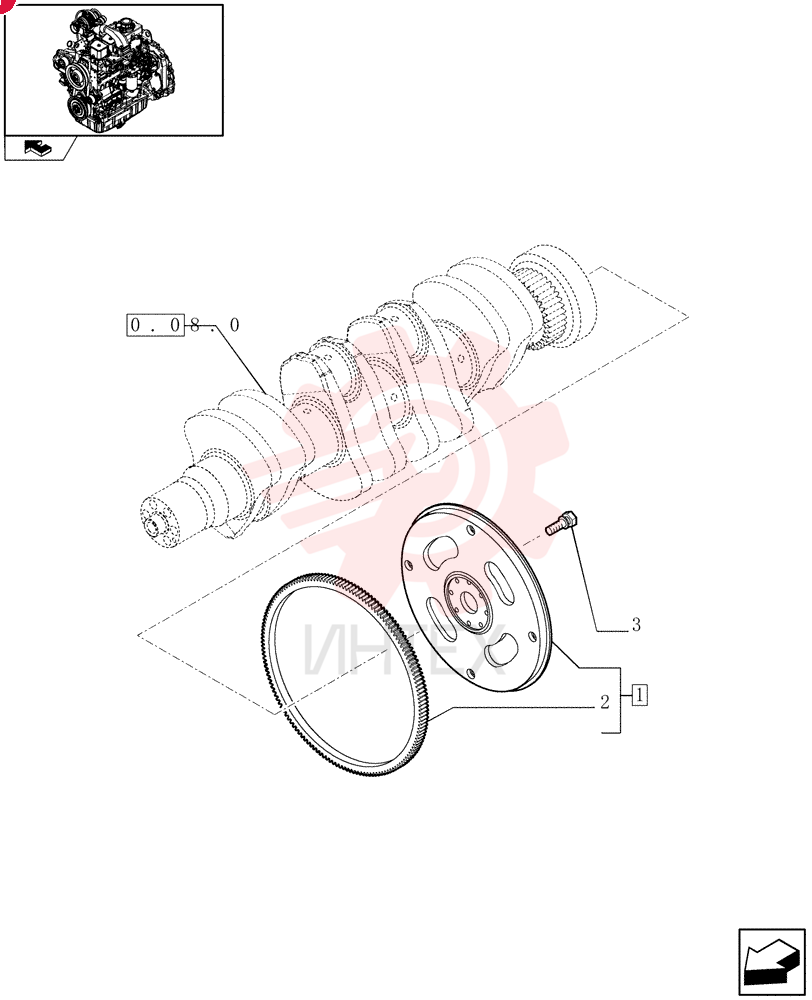

ENGINE FLYWHEEL 2852049

ENGINE FLYWHEEL 2852049

ENGINE FLYWHEEL 2852049

1 2852049

  • 2852049 - ENGINE FLYWHEEL

2 2852051

  • 2852051 - RING GEAR
  • 125T

3 4894641

  • 4894641 - CAPTIVE WASHER SCREW
  • M12 X 1.25 X 31mm
