(B110B) - BACKHOE LOADER TIER 3 (2008)
/

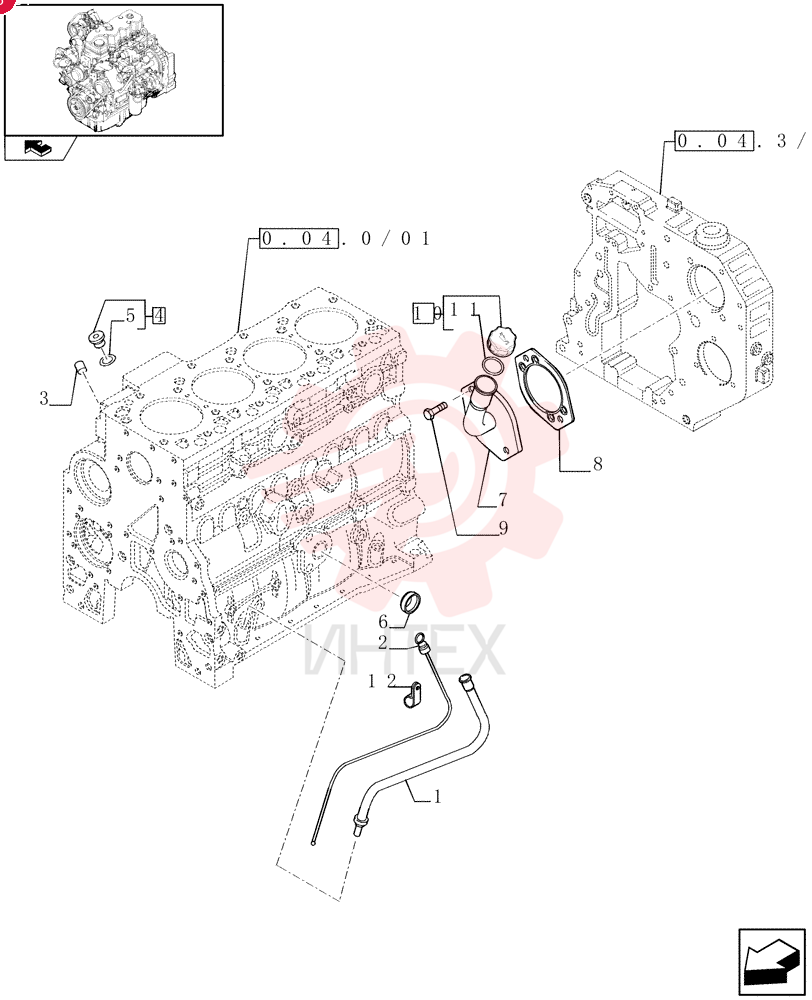

TUBE 2855813

TUBE 2855813

TUBE 2855813

1 2855813

  • 2855813 - TUBE

2 2855815

  • 2855815 - DIPSTICK

3 4895406

  • 4895406 - EXPANSION PLUG
  • 9.8mm OD

4 4897330

  • 4897330 - HEX SOCKET PLUG
  • M12 x 1.5

5 4895610

  • 4895610 - O-RING
  • 2.2mm Thk x 9.3mm ID

6 4895037

  • 4895037 - EXPANSION PLUG
  • 32.03mm

7 2855787

  • 2855787 - TUBE
  • 169.3
  • 160 mm Length

8 4896897

  • 4896897 - GASKET
  • 1.35mm Thk

9 2856035

  • 2856035 - SCREW
  • Flng
  • M12 x 30mm
  • Cl 8.8

10 2853410

  • 2853410 - FILLER CAP
  • Female

11 2853412

  • 2853412 - O-RING
  • 0.21" Thk x 1.475" ID

12 2852485

  • 2852485 - BRACKET
