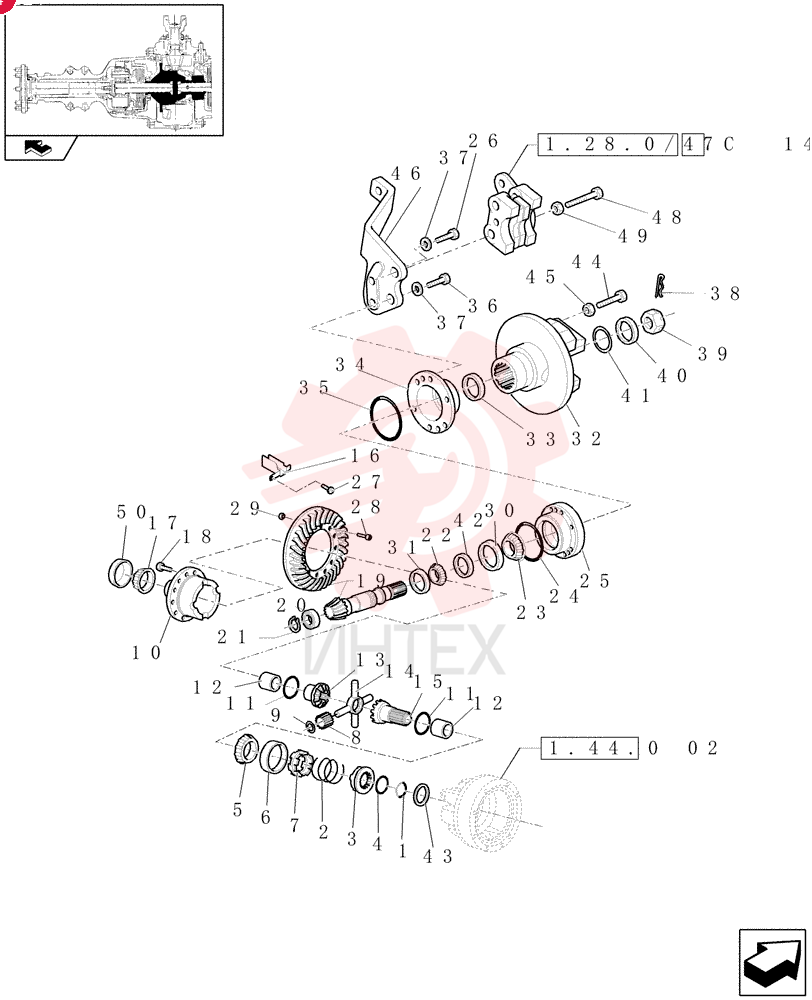

SNAP RING,2.37" ID 81803474 (1)
1 81803474
- 81803474 - SNAP RING
- 2.37" ID
2 81800474
- 81800474 - SPRING
3 81812261
- 81812261 - ADAPTER
4 81800475
- 81800475 - WASHER
- 64.64mm ID x 78.74mm OD x 3.25mm Thk
5 81803413
- 81803413 - ROLLER BEARING
- 107.95mm ID x 21.44mm W
6 81803420
- 81803420 - BEARING CUP
- 158.75mm OD x 15.88mm W
7 81800472
- 81800472 - ADAPTER
8 81728114
- 81728114 - PINION
- 9 Teeth
9 83989915
- 83989915 - THRUST WASHER
- 1" x 2" x .060" Thk
10 81816246
- 81816246 - HOUSING
11 81803424
- 81803424 - THRUST WASHER
- 76.2mm ID x 101.6mm OD x 1.58mm Thk
12 81800471
- 81800471 - BUSHING
- 72.08mm ID x 75.21mm OD x 31.75mm L
13 81803445
- 81803445 - GEAR
- 38 Teeth
14 81876885
- 81876885 - SPIDER
- 28.4mm Cap Dia
- 179.3mm L
15 81803451
- 81803451 - GEAR
- 27 Teeth
16 87356354
- 87356354 - SUPPORT
17 82959377
- 82959377 - BEARING CONE
- 66.67mm ID x 30.1mm W
18 83994579
- 83994579 - LOCK BOLT
- 1/2" - 13 x 2-7/8"
- Gr 8
19 83958890
- 83958890 - GEAR SET
20 81824478
- 81824478 - BEARING ASSY
- 30mm ID x 62mm OD x 19.05mm W
21 81803542
- 81803542 - RING
- 1.186" ID
22 82958961
- 82958961 - BEARING ASSY
23 81845711
- 81845711 - BEARING ASSY
24 81827354
- 81827354 - O-RING
- 0.139" Thk x 4.609" ID
- -247
- Cl 5
- 75 Duro
25 81847146
- 81847146 - RETAINER
26 83959181
- 83959181 - BOLT
- Hex
- 9/16" - 12 x 2"
- Gr 8
27 89706729
- 89706729 - SCREW
- 7/16" - 14 x 100"
28 83957533
- 83957533 - SCREW
- Pan HD
- 1/2" - 20 x 1-5/8"
- Gr 8
29 83417169
- 83417169 - NUT
- 1/2"-20
- GA
30 81812385
- 81812385 - BEARING ASSY
- 88.92mm OD x 23.07mm W
31 82958963
- 82958963 - CUP
32 85805307
- 85805307 - BRAKE DISC
- 220mm OD
33 81834073
- 81834073 - OIL SEAL
- 66.67mm ID x 89.03mm OD x 11mm Thk
34 83912246
- 83912246 - RETAINER
35 81845713
- 81845713 - SEAL
36 81821267
- 81821267 - BOLT
37 80280248
- 80280248 - LOCK WASHER
38 83947107
- 83947107 - PIN
39 83949812
- 83949812 - SLOTTED NUT
40 81834042
- 81834042 - WASHER
- 32.5mm ID x 53.8mm OD x 5.6mm Thk
41 81845714
- 81845714 - SEAL
42 81847148
- 81847148 - SPACER
43 81847149
- 81847149 - SPACER
44 81847150
- 81847150 - SPACER
45 81847151
- 81847151 - SPACER
46 81847152
- 81847152 - SPACER
47 81847153
- 81847153 - SPACER
48 81847154
- 81847154 - SPACER
49 81847155
- 81847155 - SPACER
50 81847156
- 81847156 - SPACER
51 81847157
- 81847157 - SPACER
52 81847158
- 81847158 - SPACER
53 81847159
- 81847159 - SPACER
54 81847160
- 81847160 - SPACER
55 81847161
- 81847161 - SPACER
56 81847162
- 81847162 - SPACER
57 81803515
- 81803515 - SHIM
- 96.52mm ID x 111.76mm OD x 1.02mm Thk
58 81803516
- 81803516 - SHIM
- 96.52mm ID x 111.76mm OD x 1.17mm Thk
59 81803517
- 81803517 - SHIM
- 96.52mm ID x 111.76mm OD x 1.32mm Thk
60 81803518
- 81803518 - SHIM
- 96.52mm ID x 111.76mm OD x 1.47mm Thk
61 81803519
- 81803519 - SHIM
- 96.52mm ID x 111.76mm OD x 1.63mm Thk
62 81803520
- 81803520 - SHIM
- 96.52mm ID x 111.76mm OD x 1.78mm Thk
63 81803521
- 81803521 - SHIM
- 96.52mm ID x 111.76mm OD x 1.93mm Thk
64 81803522
- 81803522 - SHIM
- 96.52mm ID x 111.76mm OD x 2.08mm Thk
65 14359431
- 14359431 - SCREW
- M8 x 75mm
66 14048221
- 14048221 - NUT
- M8 x 1.25
- Cl 10
67 85804940
- 85804940 - SUPPORT
68 85813303
- 85813303 - BRAKE ASSY.
69 9969103
- 9969103 - SCREW
70 9969104
- 9969104 - NUT
71 82959375
- 82959375 - BEARING ASSY
- 112.74mm OD x 23.85mm W
