(B110B) - BACKHOE LOADER TIER 3 (2008)
/

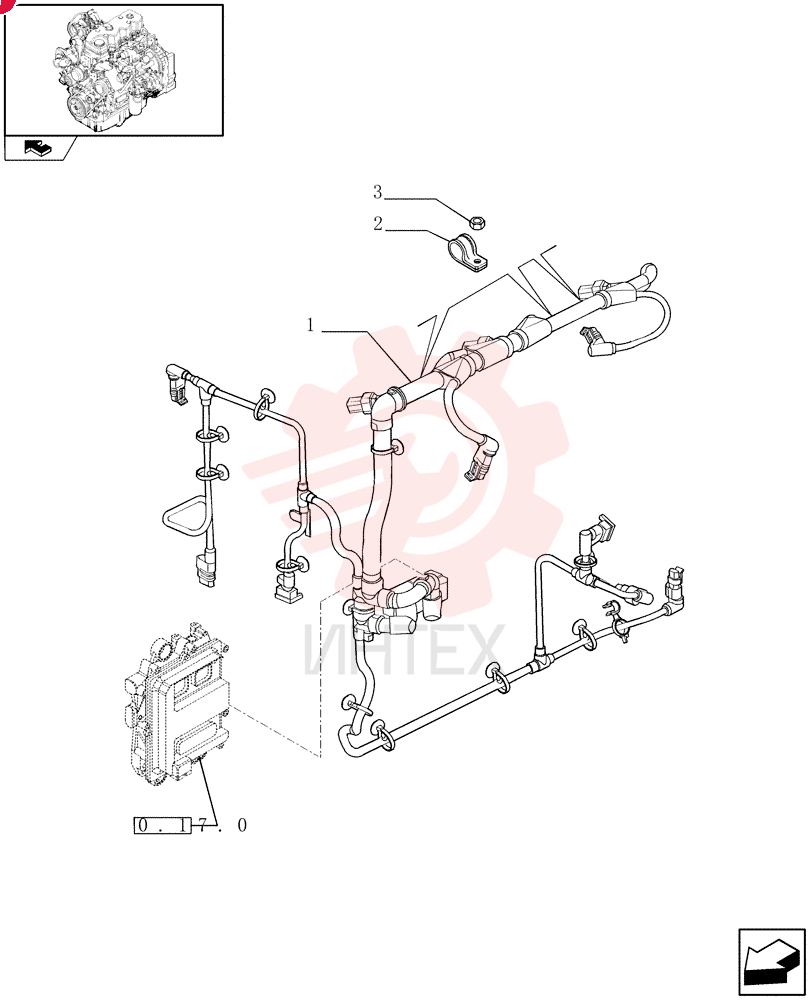

WIRE HARNESS 2855886

WIRE HARNESS 2855886

WIRE HARNESS 2855886

1 2855886

  • 2855886 - WIRE HARNESS

2 4899815

  • 4899815 - CLAMP
  • 20mm
  • Insul
  • 7mm Bolt

3 2852500

  • 2852500 - CLAMP

4 2852484

  • 2852484 - FLANGE NUT
  • Hex
  • M6 x 1

5 82033028

  • 82033028 - CABLE TIE
  • 170mm L

6 87567355

  • 87567355 - CLAMP
  • 202mm L x 4.6mm W x 1.2mm Thk

7 87567356

  • 87567356 - CLAMP
  • 200mm L x 4.6mm W x 1.2mm Thk
