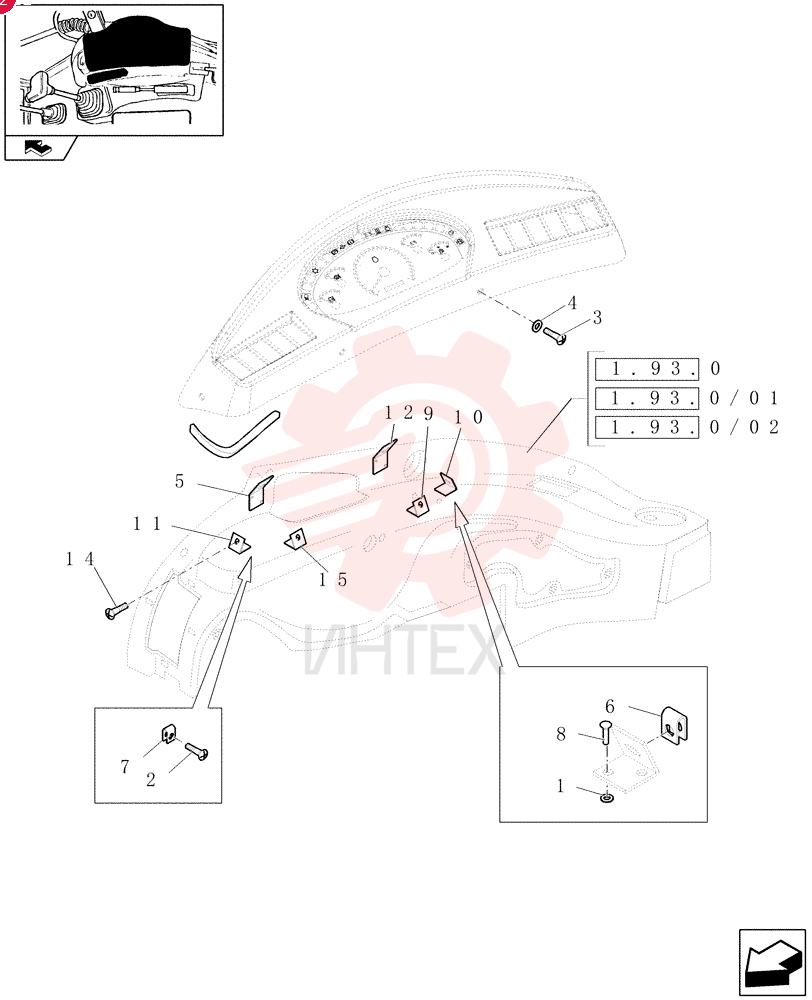

(B110B) - BACKHOE LOADER TIER 3 (2008)
/
WASHER,4.15mm ID x 12mm OD x 1mm Thk 12642804 (2)

WASHER,4.15mm ID x 12mm OD x 1mm Thk 12642804 (2)

WASHER,4.15mm ID x 12mm OD x 1mm Thk 12642804 (2)

1 12642804

  • 12642804 - WASHER
  • 4.15mm ID x 12mm OD x 1mm Thk

2 13311017

  • 13311017 - SCREW
  • Pozidriv Oval Hd
  • Csk
  • M5 x 16mm
  • Cl 5.8
  • Full Thd

3 15693507

  • 15693507 - SCREW
  • Over Head
  • M4.8 x 1.6 x 22mm

4 85801991

  • 85801991 - WASHER
  • 6.3mm OD x 18mm ID x 4mm Thk

5 87552670

  • 87552670 - PROTECTION STRIP
  • 1520mm L

6 85824393

  • 85824393 - SEAL

7 14189176

  • 14189176 - SPRING NUT
  • J
  • #10

8 14372671

  • 14372671 - SPRING NUT
  • M4.2
  • U
  • 12.4mm long

9 14642191

  • 14642191 - RIVET
  • Pop
  • 3.9mm OD x 14mm OAL

10 85802142

  • 85802142 - BRACKET

11 85802143

  • 85802143 - BRACKET

12 85802144

  • 85802144 - BRACKET

13 85802145

  • 85802145 - BRACKET

14 87551537

  • 87551537 - BRACKET

15 85802146

  • 85802146 - BRACKET

16 15910607

  • 15910607 - SCREW
  • Pozidriv Oval Hd Csk
  • M4.8 x 16mm

17 85802141

  • 85802141 - BRACKET
