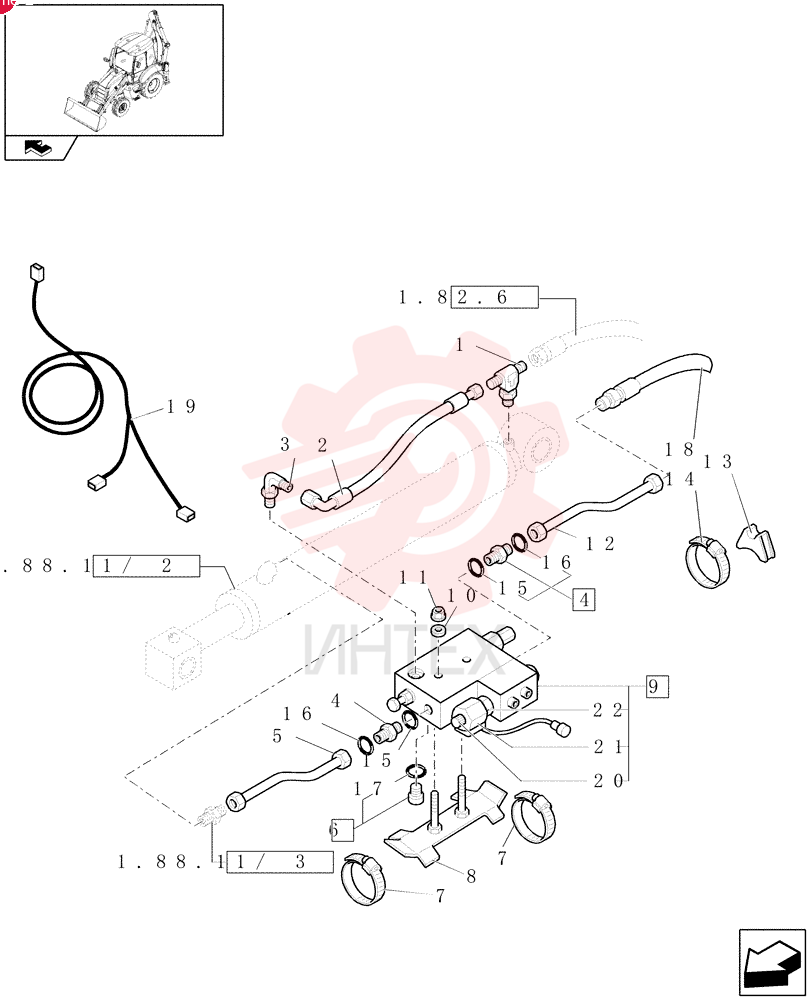

TEE,13/16'-16 ORFS x 9/16'-18 x 7/8'-14 ORB
1 85805218
- 85805218 - TEE
- 13/16'-16 ORFS x 9/16'-18 x 7/8'-14 ORB
2 85815506
- 85815506 - FLEXIBLE HOSE
- 6.35mm ID x 300mm L
3 85805220
- 85805220 - ELBOW
- 90 Degree
- 9/16"-18 x 9/16"-18 Adj
- ORFS
4 83963374
- 83963374 - FITTING
- 13/16"-16 ORFS x 3/4"-16 ORB
5 85805262
- 85805262 - HYD TUBE
- 12 mm OD x 360
- 15 mm L
6 85802805
- 85802805 - PLUG
- 9/16" - 18
7 85803010
- 85803010 - HOSE CLAMP
- 80mm - 100mm
8 85805221
- 85805221 - SUPPORT
9 85805224
- 85805224 - HYDRAULIC VALVE
10 11193879
- 11193879 - BELLEVILLE WASHER
- M8 Bolt Size x 16mm OD x 1.4mm Thk
11 14048221
- 14048221 - NUT
- M8 x 1.25
- Cl 10
12 85805264
- 85805264 - HYD TUBE
- 12 mm OD x 215
- 20 mm L
13 87303910
- 87303910 - SPACER
- R8mm
- R45mm
14 85802743
- 85802743 - HOSE CLAMP
- 3"1/2 - 4"3/8
15 80128825
- 80128825 - O-RING
- 0.087" Thk x 0.644" ID
- -908
- Cl 6
- 90 Duro
16 89992298
- 89992298 - O-RING
- 0.07" Thk x 0.489" ID
- -14
- Cl 6
- 90 Duro
17 89825770
- 89825770 - O-RING
- 0.07" Thk x 0.301" ID
- -11
- Cl 6
- 90 Duro
18 85813361
- 85813361 - HYDRAULIC HOSE
- 9.53mm ID x 1130mm L
19 85826276
- 85826276 - WIRE HARNESS
20 9970384
- 9970384 - RING NUT
21 85820283
- 85820283 - COIL
22 85820285
- 85820285 - HYDRAULIC VALVE
