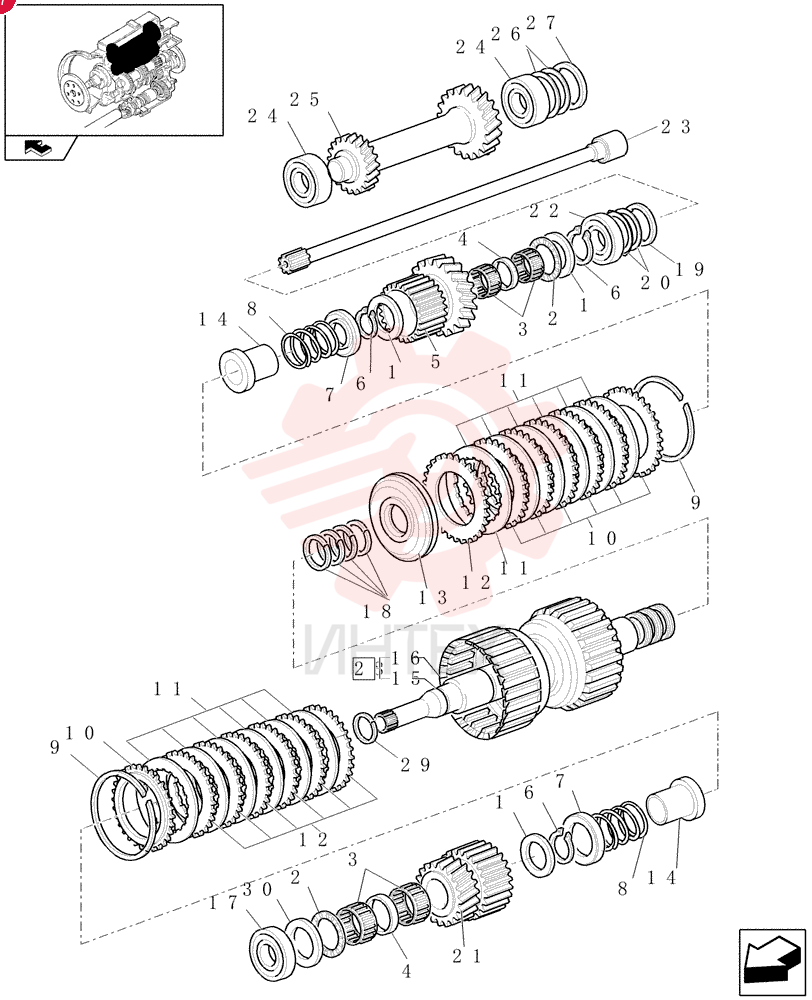

(B110B) - BACKHOE LOADER TIER 3 (2008)
/
WASHER,50mm ID x 70mm OD x 4mm Thk 9968279 (1)

WASHER,50mm ID x 70mm OD x 4mm Thk 9968279 (1)

WASHER,50mm ID x 70mm OD x 4mm Thk 9968279 (1)

1 9968279

  • 9968279 - WASHER
  • 50mm ID x 70mm OD x 4mm Thk

2 9968228

  • 9968228 - THRUST BEARING

3 9968304

  • 9968304 - NEEDLE BEARING
  • 50mm ID x 55mm OD x 17mm W

4 9968302

  • 9968302 - SPACER

5 9968286

  • 9968286 - GEAR

6 9968291

  • 9968291 - SNAP RING

7 85827771

  • 85827771 - SPRING-CHECK

8 85827772

  • 85827772 - SPRING

9 9968287

  • 9968287 - CIRCLIP

10 9968288

  • 9968288 - BACK PLATE

11 9968290

  • 9968290 - CLUTCH PLATE

12 9968289

  • 9968289 - CLUTCH PLATE

13 85827773

  • 85827773 - PISTON

14 85827774

  • 85827774 - BUSHING

15 85821452

  • 85821452 - SHAFT

16 85821454

  • 85821454 - SLEEVE

17 9968276

  • 9968276 - BEARING

18 9968226

  • 9968226 - SEAL

19 9968341

  • 9968341 - SPACER

20 9968342

  • 9968342 - SHIM

21 9968343

  • 9968343 - SHIM
  • 70mm ID x 80mm OD x 0.08mm Thk

22 9968344

  • 9968344 - SHIM
  • 70mm ID x 80mm OD x 0.18mm Thk

23 9968345

  • 9968345 - SHIM
  • 70mm ID x 80mm OD x 0.6mm Thk

24 9968285

  • 9968285 - GEAR

25 9968305

  • 9968305 - BEARING

26 9968347

  • 9968347 - SHAFT

27 9968268

  • 9968268 - BEARING

28 9968281

  • 9968281 - GEAR

29 9968262

  • 9968262 - SHIM
  • 0.002mm Thk

30 9968263

  • 9968263 - SHIM
  • 0.003mm Thk

31 9968264

  • 9968264 - SHIM
  • 0.003mm Thk

32 9968265

  • 9968265 - SHIM
  • 0.007mm Thk

33 9968266

  • 9968266 - SHIM
  • 0.02mm Thk

34 9968267

  • 9968267 - SHIM
  • 0.02mm Thk

35 9968261

  • 9968261 - SPACER

36 9968282

  • 9968282 - SHAFT

37 9968314

  • 9968314 - SEAL

38 9968230

  • 9968230 - WASHER
  • 40mm ID x 70mm OD x 4mm Thk
