(B110B) - BACKHOE LOADER TIER 3 (2008)
/

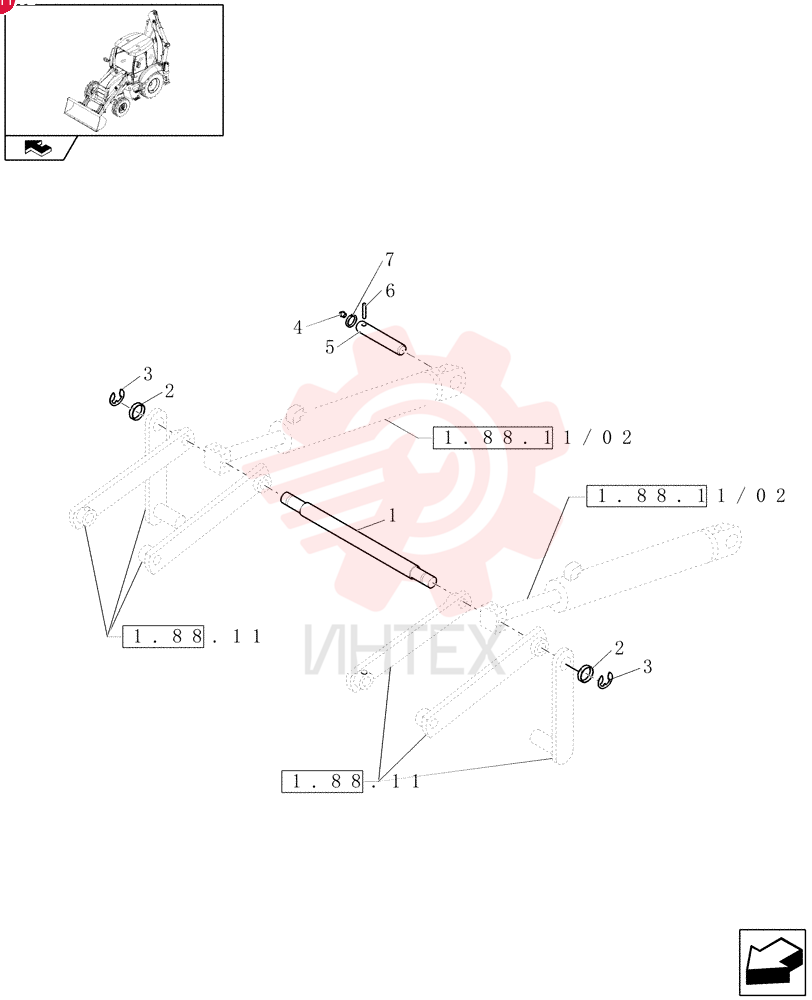

SPACER,38mm ID x 995.5mm L

SPACER,38mm ID x 995.5mm L

SPACER,38mm ID x 995.5mm L

1 85803635

  • 85803635 - SPACER
  • 38mm ID x 995.5mm L

2 81900328

  • 81900328 - WASHER
  • 38.48mm ID x 57.15mm OD x 2.9mm Thk

3 81902463

  • 81902463 - RING
  • 35.306mm ID x 2.769mm Thk

4 83416242

  • 83416242 - LUBE NIPPLE
  • Straight
  • 1/8"-27 x 0.66"

5 85801049

  • 85801049 - PIN
  • 38.1mm OD x 159mm L

6 85802993

  • 85802993 - PIN
  • 12mm OD x 55mm L

7 85802992

  • 85802992 - RING
  • 54mm ID x 59mm OD x 10mm Thk
