(B110B) - BACKHOE LOADER TIER 3 (2008)
/

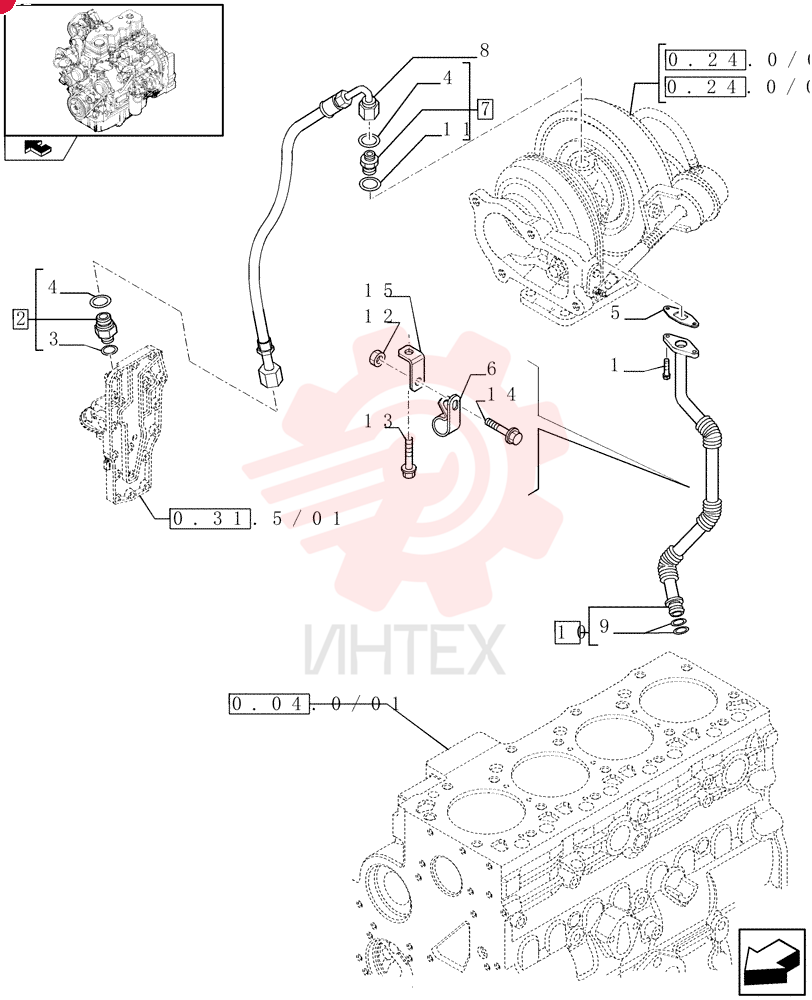

SCREW,Hex, Flg Hd, M6 x 16

SCREW,Hex, Flg Hd, M6 x 16

SCREW,Hex, Flg Hd, M6 x 16

1 4895164

  • 4895164 - SCREW
  • Hex
  • Flg Hd
  • M6 x 16

2 4895107

  • 4895107 - HYD CONNECTOR
  • 11/16"-16 x M12

3 4899107

  • 4899107 - O-RING
  • 1.8mm Thk x 10.52mm ID

4 4899108

  • 4899108 - O-RING
  • 0.364mm ID x 0.07mm Width

5 4899467

  • 4899467 - GASKET

6 4899519

  • 4899519 - CLAMP
  • M16
  • M6 Bolt

7 4899106

  • 4899106 - HYD CONNECTOR
  • 11/16" - 16 ORFS x M10 x 1.25 ORB

8 2852195

  • 2852195 - HYDRAULIC HOSE
  • 6.4mm ID x 461mm L

9 4899058

  • 4899058 - O-RING
  • 0.674" ID x 0.88" OD x 0.103"

10 2855780

  • 2855780 - TUBE

11 J932484

  • J932484 - WASHER

12 2852197

  • 2852197 - FLANGE NUT
  • M6 x 1

13 2852100

  • 2852100 - FLANGE BOLT
  • Hex
  • M8 x 1.25 x 16mm

14 2852101

  • 2852101 - FLANGE BOLT
  • Hex
  • M6 x 16mm

15 2852196

  • 2852196 - BRACKET
