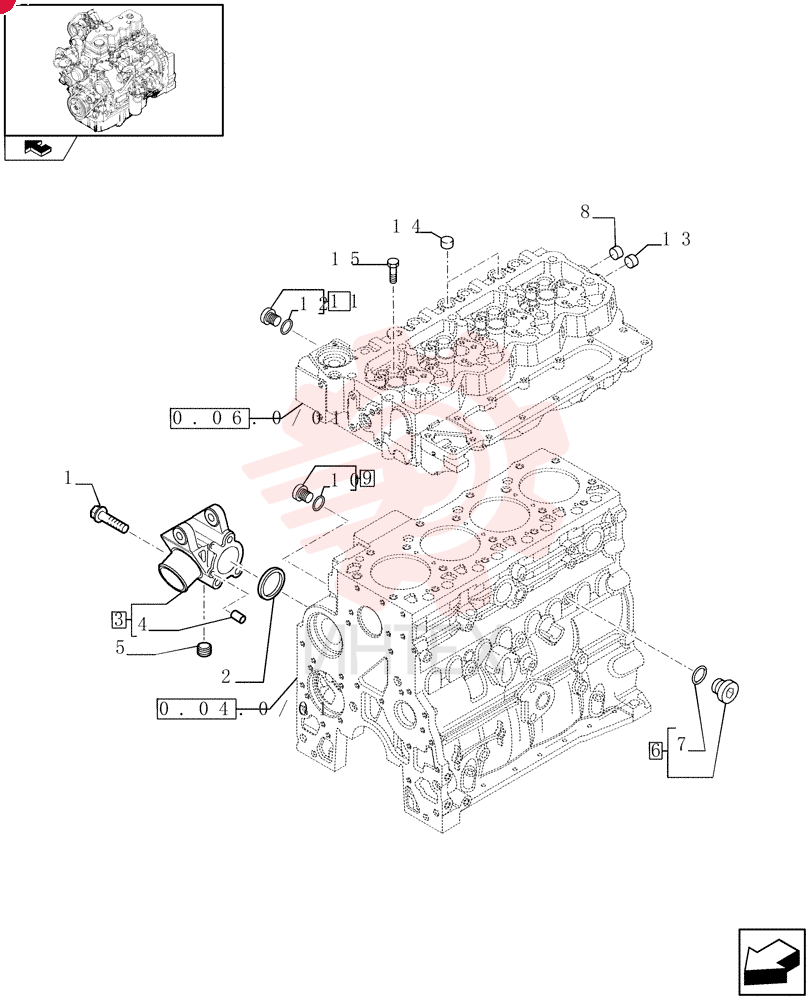

(B110B) - BACKHOE LOADER TIER 3 (2008)
/
SCREW,Hex, M10 x 1.5 x 80

SCREW,Hex, M10 x 1.5 x 80

SCREW,Hex, M10 x 1.5 x 80

1 4899109

  • 4899109 - SCREW
  • Hex
  • M10 x 1.5 x 80

2 2854072

  • 2854072 - SEALING RING
  • Square
  • 5.16mm Thk x 50.17mm ID

3 2855776

  • 2855776 - SUPPORT

4 2852181

  • 2852181 - SPACER
  • 10.4mm ID x 22mm OD x 35mm L

5 2852511

  • 2852511 - PLUG
  • R3/8" - 18 NPTF
  • M8
  • 12.7mm L

6 4895623

  • 4895623 - HEX SOCKET PLUG
  • M16 x 1.5

7 4895625

  • 4895625 - O-RING
  • 13.3mm ID x 2.2mm Width

8 4893036

  • 4893036 - PIPE PLUG
  • 3/4"-14 NPTF

9 4895392

  • 4895392 - HEX SOCKET PLUG
  • M18 x 1.5

10 4895393

  • 4895393 - O-RING
  • 2.2mm Thk x 15.3mm ID

11 4895080

  • 4895080 - HEX SOCKET PLUG
  • M22 x 1.5

12 2854072

  • 2854072 - SEALING RING
  • Square
  • 5.16mm Thk x 50.17mm ID

13 4893036

  • 4893036 - PIPE PLUG
  • 3/4"-14 NPTF

14 4895078

  • 4895078 - PIPE PLUG
  • 1/2"-14

15 2854491

  • 2854491 - PLUG
  • Taper Pipe
  • Hex
  • 1/4" - 18 x 14.224mm
