(B110B) - BACKHOE LOADER TIER 3 (2008)
/

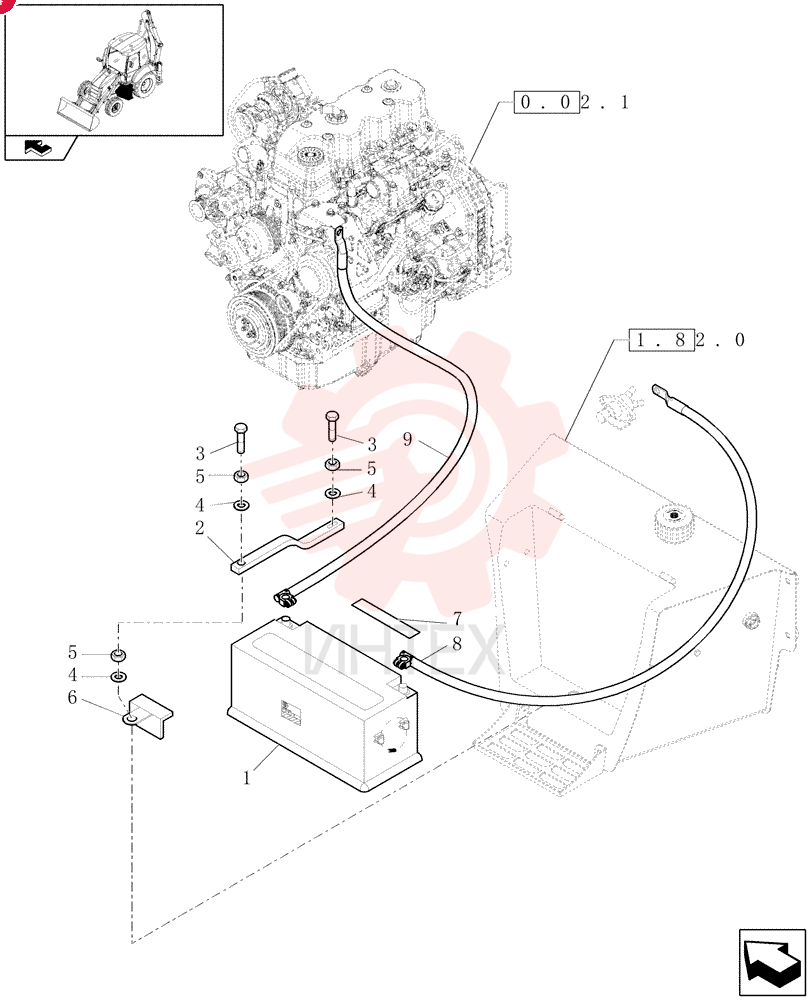

WET BATTERY,12V, 95AH, 900CCA

WET BATTERY,12V, 95AH, 900CCA

WET BATTERY,12V, 95AH, 900CCA

1 85826206

  • 85826206 - WET BATTERY
  • 12V
  • 95AH
  • 900CCA

2 BNH49MFW

  • BNH49MFW - WET BATTERY
  • 12V
  • 95AH
  • 900CCA

3 9673604WDS

  • 9673604WDS - WET BATTERY

4 87416929

  • 87416929 - BRACKET

5 87415781

  • 87415781 - BRACKET

6 412005

  • 412005 - BOLT
  • Hex
  • M10 x 1.5 x 220mm
  • Cl 8.8

7 47048963

  • 47048963 - WASHER
  • 11mm ID x 20mm OD x 2mm Thk
  • Carbon Steel

8 47049041

  • 47049041 - NUT
  • Hex
  • M10 x 1.5
  • Cl 8

9 47048788

  • 47048788 - ANGLE

10 47049590

  • 47049590 - DECAL

11 87405018

  • 87405018 - GROUND STRAP

12 47478524

  • 47478524 - POS BATTERY CABLE

13 87567414

  • 87567414 - CABLE

14 87568472

  • 87568472 - CABLE
  • 1440mm L
