New Holland Construction
/
(B110B) - BACKHOE LOADER TIER 3 (2008)
/

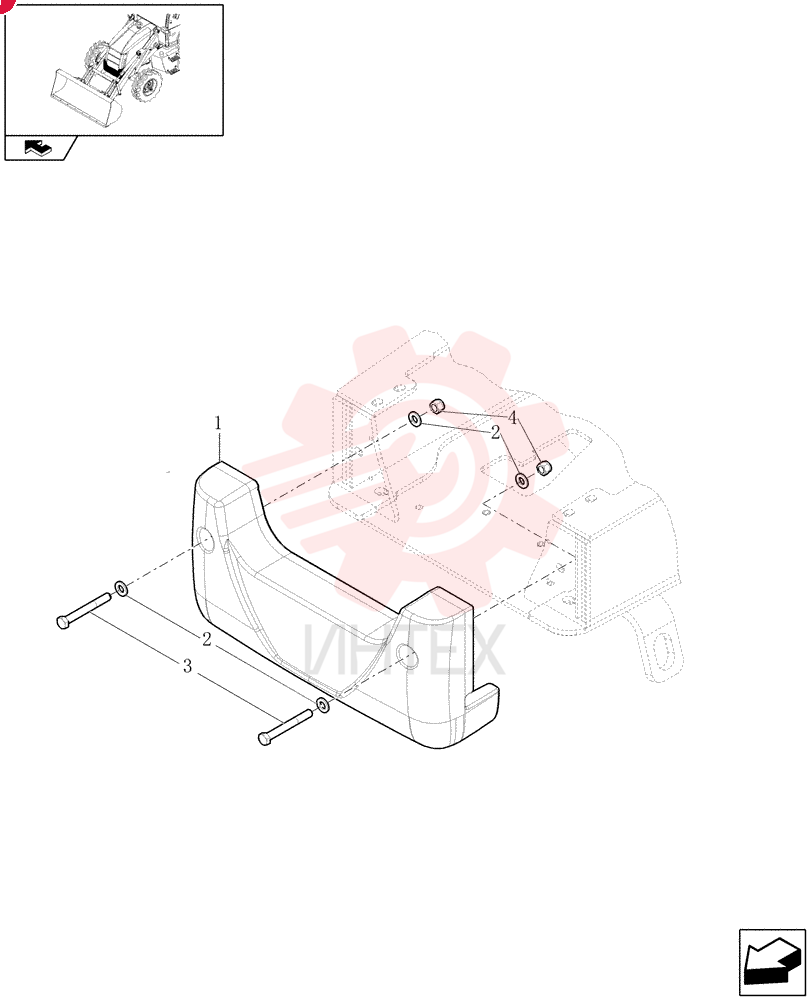

WEIGHT 87631830

WEIGHT 87631830

WEIGHT 87631830

1 87631830

  • 87631830 - WEIGHT

2 13580121

  • 13580121 - WASHER
  • 16.4mm ID x 32mm OD x 4mm Thk

3 11120521

  • 11120521 - BOLT
  • Hex
  • M16 x 130
  • 8.8

4 12577411

  • 12577411 - NUT
  • M16 x 2
  • Cl 8
