(B110B) - BACKHOE LOADER TIER 3 (2008)
/

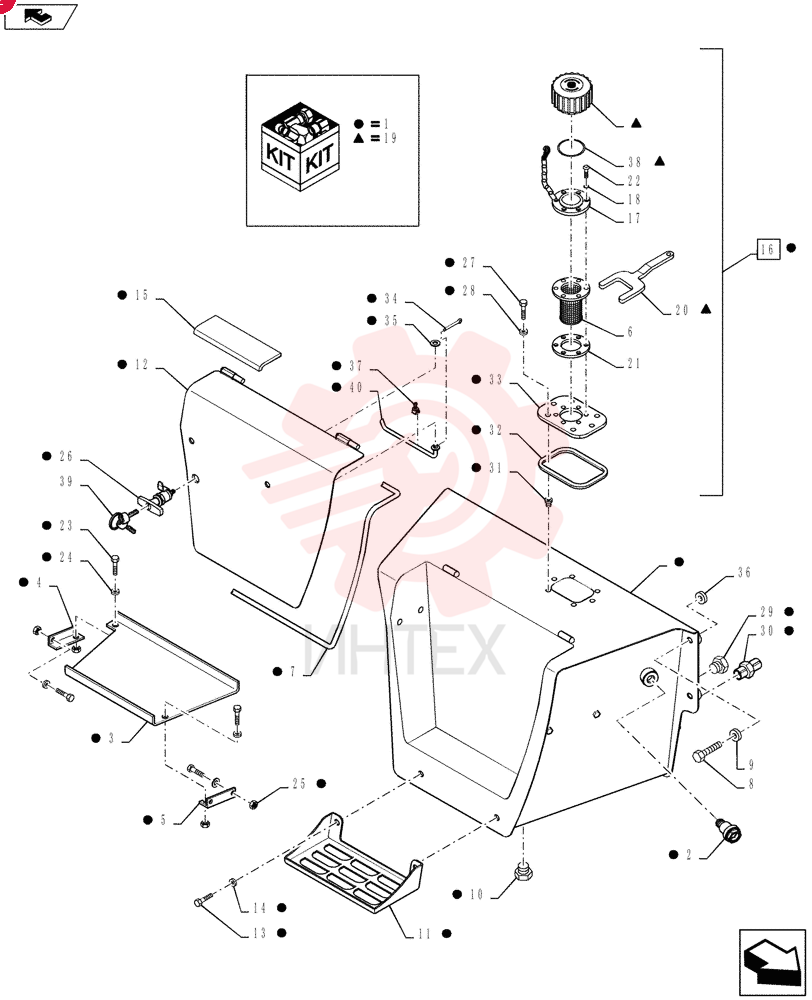

TANK 87577246

TANK 87577246

TANK 87577246

1 87577246

  • 87577246 - TANK

2 85801249

  • 85801249 - LEVEL GAUGE

3 87407463

  • 87407463 - TRAY

4 87407464

  • 87407464 - BRACKET

5 87407465

  • 87407465 - BRACKET

6 87407928

  • 87407928 - FILTER

7 87417207

  • 87417207 - RUBBER SEAL
  • 1855mm L

8 15540721

  • 15540721 - SCREW
  • Hex
  • M12 x 1.25 x 45mm
  • Cl 8.8
  • Full Thd

9 47048976

  • 47048976 - WASHER
  • 13.3mm ID x 28.5mm OD x 4mm Thk

10 47050671

  • 47050671 - PLUG

11 85801218

  • 85801218 - STEP PLATE

12 87406299

  • 87406299 - COVER

13 11112421

  • 11112421 - SCREW
  • Hex
  • M12 x 30mm
  • Cl 8.8

14 47048973

  • 47048973 - WASHER

15 87702352

  • 87702352 - ANTI-SKID STRIP

16 87403241

  • 87403241 - FILLER CAP

17 85813352

  • 85813352 - FLANGE

18 85813354

  • 85813354 - O-RING

19 85813350

  • 85813350 - SERVICE KIT

20 85802580

  • 85802580 - SPECIAL WRENCH

21 9969380

  • 9969380 - SEAL

22 85813353

  • 85813353 - SCREW

23 47049185

  • 47049185 - BOLT

24 47048972

  • 47048972 - WASHER
  • 10.8mm ID x 21.5mm OD x 2.5mm Thk

25 47049041

  • 47049041 - NUT
  • Hex
  • M10 x 1.5
  • Cl 8

26 87574189

  • 87574189 - HANDLE

27 16043421

  • 16043421 - BOLT
  • Hex
  • M8 x 1.25 x 20mm
  • Cl 8.8
  • Full Thd

28 47048962

  • 47048962 - WASHER
  • 9mm ID x 16mm OD
  • Carbon Steel

29 85825154

  • 85825154 - PLUG

30 85825155

  • 85825155 - HYD CONNECTOR

31 85826382

  • 85826382 - NUT

32 85826383

  • 85826383 - GASKET
  • 4mm Thk

33 85828107

  • 85828107 - PLATE

34 47042074

  • 47042074 - COTTER PIN

35 47044758

  • 47044758 - WASHER

36 87353741

  • 87353741 - SPACER
  • 13mm ID x 40mm OD x 14mm L

37 72273491

  • 72273491 - CLAMP

38 85813351

  • 85813351 - O-RING

39 84989693

  • 84989693 - SET OF 2 KEYS

40 85828017

  • 85828017 - LEVER
