(B110B) - BACKHOE LOADER TIER 3 (2008)
/

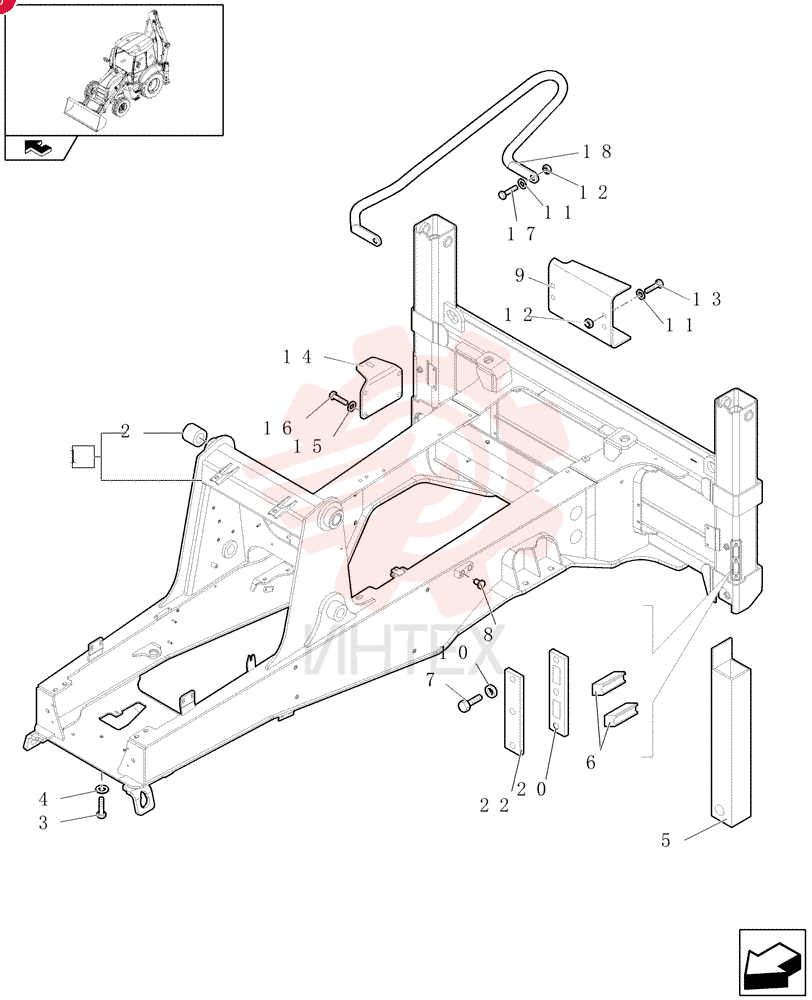

FRAME 87737012

FRAME 87737012

FRAME 87737012

1 87737012

  • 87737012 - FRAME

2 85801110

  • 85801110 - BUSHING
  • 51.15mm ID x 64.98mm OD x 70mm L

3 15989134

  • 15989134 - BOLT
  • Hex
  • M20 x 1.5 x 100mm
  • Cl 10.9

4 10520431

  • 10520431 - WASHER
  • 21mm ID x 35mm OD x 4mm Thk

5 87737006

  • 87737006 - STABILIZER

6 87737005

  • 87737005 - STABILIZER BAR

7 85818852

  • 85818852 - PAD

8 11255921

  • 11255921 - BOLT
  • Hex
  • M14 x 1.5 x 40
  • 8.8
  • Full Thd

9 85808422

  • 85808422 - PLUG
  • Black

10 85819234

  • 85819234 - PANEL

11 85819236

  • 85819236 - PANEL

12 11194174

  • 11194174 - BELLEVILLE WASHER
  • M14 Bolt Size x 27mm OD x 3mm Thk

13 11190679

  • 11190679 - BELLEVILLE WASHER
  • M10 Bolt Size x 27mm OD x 2.5mm Thk

14 12164711

  • 12164711 - NUT
  • M10 x 1.25
  • Cl 8

15 15970621

  • 15970621 - BOLT
  • Hex
  • M10 x 1.25 x 22mm
  • Cl 8.8
  • Full Thd

16 85804171

  • 85804171 - SUPPORT

17 11198679

  • 11198679 - BELLEVILLE WASHER
  • 13mm ID x 24mm OD x 0.6mm Thk

18 15540531

  • 15540531 - SCREW
  • Hex
  • M12 x 1.25 x 35mm
  • Cl 10.9
  • Full Thd

19 11306921

  • 11306921 - SCREW
  • Hex
  • M10 x 1.25 x 30mm
  • Cl 8.8
  • Full Thd

20 87376888

  • 87376888 - SUPPORT

21 87376890

  • 87376890 - SUPPORT

22 85818854

  • 85818854 - SHIM
  • 218mm L x 55mm W x 1mm Thk

23 85818853

  • 85818853 - SHIM
  • 218mm L x 55mm W x 1.5mm Thk

24 85818855

  • 85818855 - SHIM
  • 219mm L x 56mm W x 12mm Thk
