(B110B) - BACKHOE LOADER TIER 3 (2008)
/

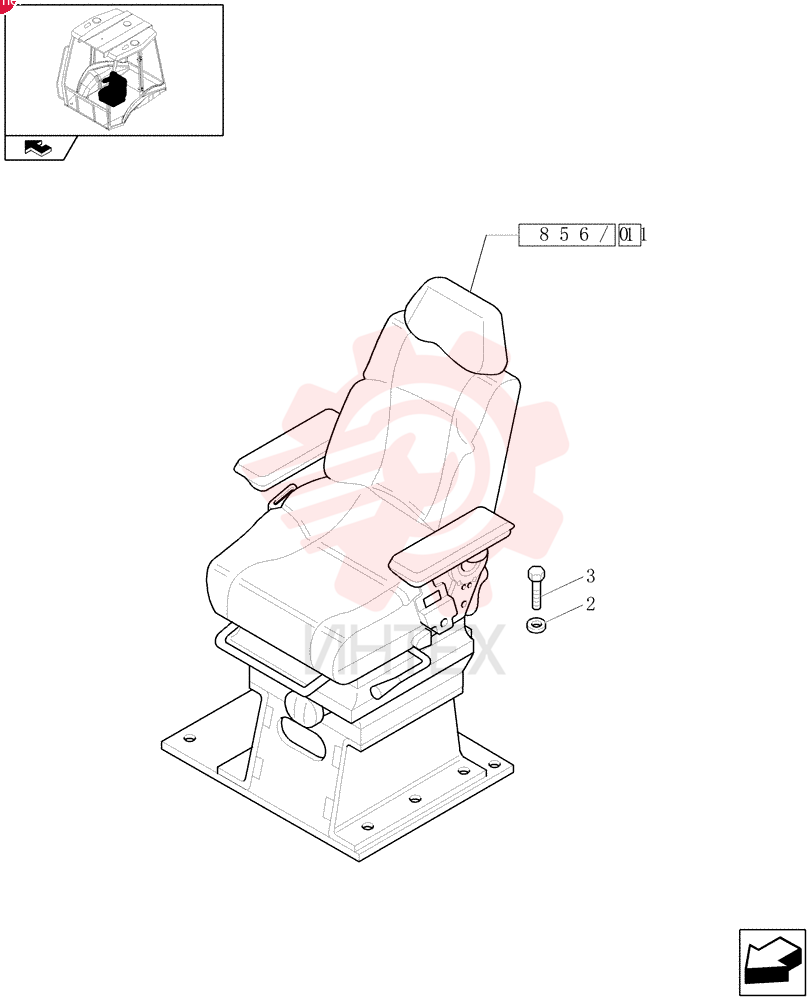

SEAT 87576855

SEAT 87576855

SEAT 87576855

1 87576855

  • 87576855 - SEAT

2 87576856

  • 87576856 - SEAT

3 87576863

  • 87576863 - SEAT

4 87576865

  • 87576865 - SEAT

5 11198074

  • 11198074 - BELLEVILLE WASHER
  • M8 Bolt Size x 15mm OD x 1.8mm Thk

6 16043424

  • 16043424 - SCREW
  • Hex
  • M8 x 1.25 x 20mm
  • Cl 8.8
  • Full Thd
