(B110B) - BACKHOE LOADER TIER 3 (2008)
/

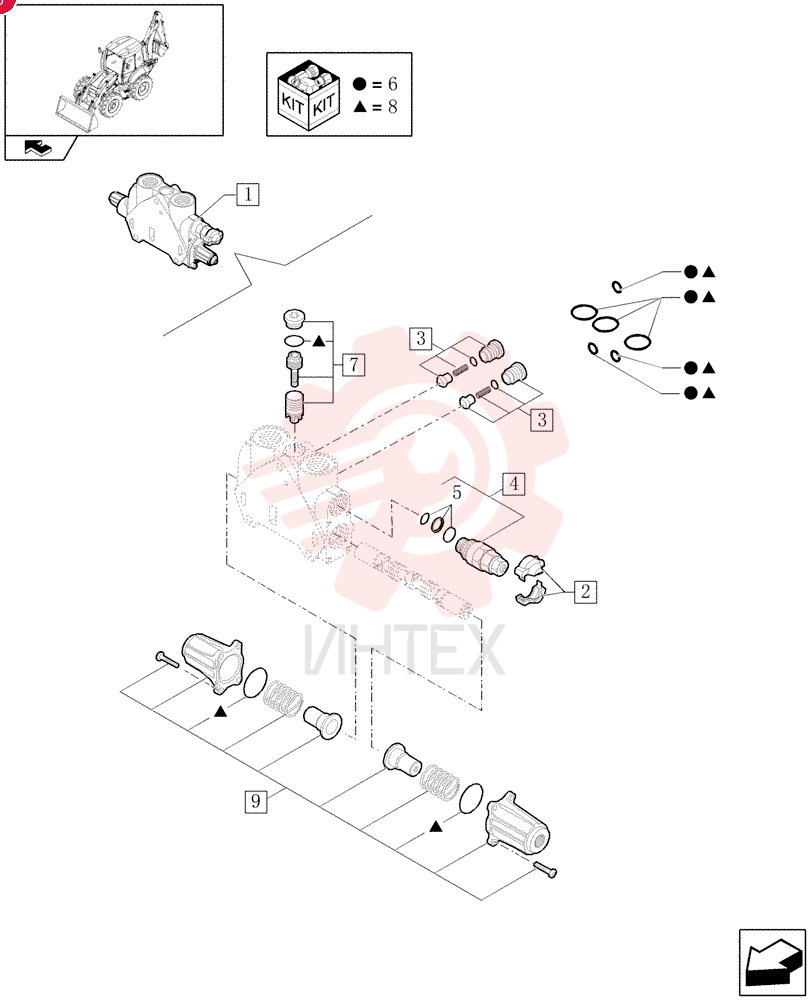

SECTOR 87558574

SECTOR 87558574

SECTOR 87558574

1 87558574

  • 87558574 - SECTOR

2 85811934

  • 85811934 - KIT
  • Half
  • Orange

3 85811938

  • 85811938 - KIT
  • Check Valve

4 87341088

  • 87341088 - HYDRAULIC VALVE

5 85811933

  • 85811933 - SEAL KIT
  • Secondary Valve

6 85819148

  • 85819148 - SEAL KIT
  • Between Control Valve Sections

7 85819378

  • 85819378 - KIT

8 85824281

  • 85824281 - SEAL KIT
  • Control Valve Section
  • Complete

9 85826344

  • 85826344 - KIT
  • Operation
