(B110C) - BACKHOE LOADER - TIER 4A (3/12-)
/
SCREW,Hex, M8 x 1.25 x 55mm, Cl 8.8 16044324 (2)

SCREW,Hex, M8 x 1.25 x 55mm, Cl 8.8 16044324 (2)

SCREW,Hex, M8 x 1.25 x 55mm, Cl 8.8 16044324 (2)

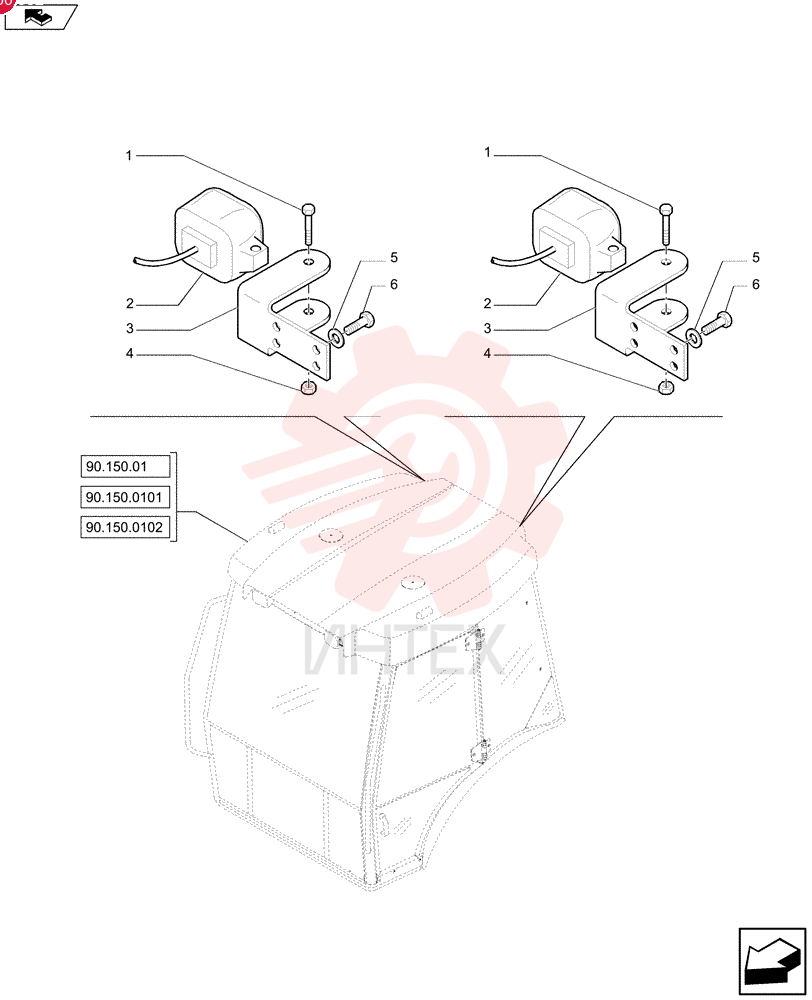

1 16044324

  • 16044324 - SCREW
  • Hex
  • M8 x 1.25 x 55mm
  • Cl 8.8

2 85819200

  • 85819200 - WORK LAMP
  • Halogen
  • 12V
  • 55W
  • Clear

3 85819192

  • 85819192 - BRACKET

4 16104111

  • 16104111 - NUT
  • Prevailing Torque
  • M8
  • 1.25 Pitch
  • 10.6mm High
  • Cl 08
  • ZND

5 11197774

  • 11197774 - BELLEVILLE WASHER
  • M6 Bolt Size x 12mm OD x 1.2mm Thk

6 10902124

  • 10902124 - SCREW
  • Hex
  • M6 x 14mm
  • Cl 8.8
