(B110C) - BACKHOE LOADER - TIER 4A (3/12-)
/

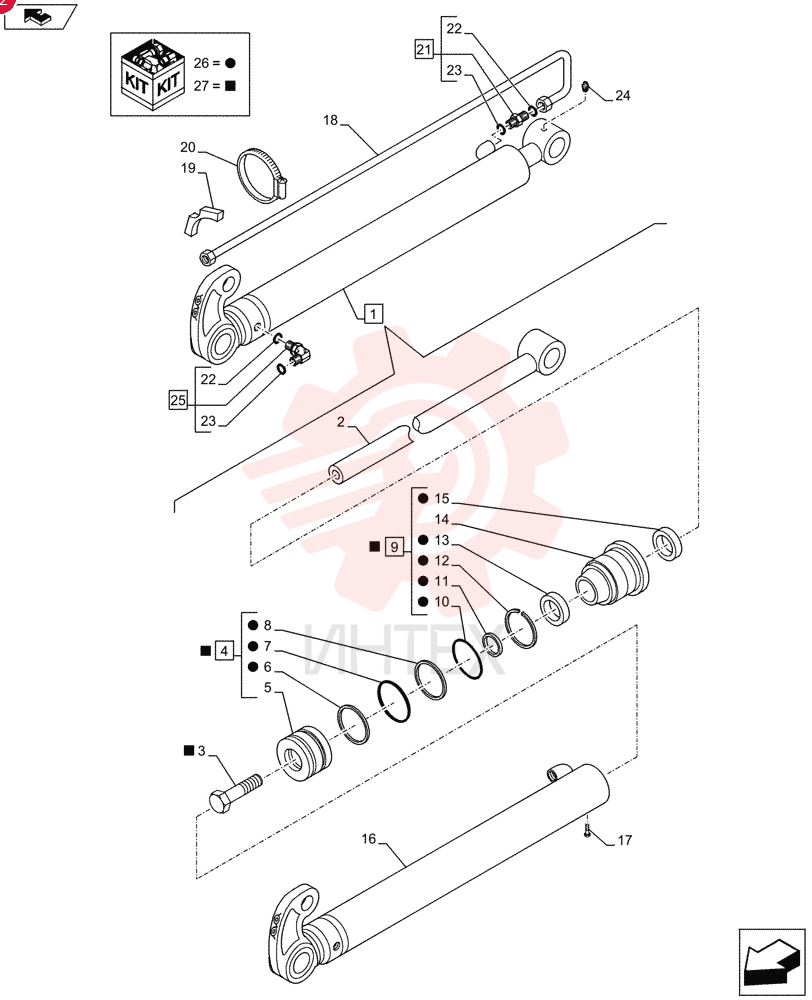

HYDRAULIC CYLINDER,Double Acting, 44.5mm Rod, 76.2mm Bore, 1200mm Stroke

HYDRAULIC CYLINDER,Double Acting, 44.5mm Rod, 76.2mm Bore, 1200mm Stroke

HYDRAULIC CYLINDER,Double Acting, 44.5mm Rod, 76.2mm Bore, 1200mm Stroke

1 87327259

  • 87327259 - HYDRAULIC CYLINDER
  • Double Acting
  • 44.5mm Rod
  • 76.2mm Bore
  • 1200mm Stroke

2 87313722

  • 87313722 - ROD

3 86982435

  • 86982435 - SPECIAL BOLT
  • 3/4" - 16 x 2-1/2"

4 G107276

  • G107276 - GLAND

5 G107277

  • G107277 - PISTON

6 G100444

  • G100444 - SEALING RING
  • Square
  • 5.28mm Thk x 62.61mm ID

7 G100443

  • G100443 - SEAL
  • 67.9mm ID x 77.1mm OD x 6.8mm Thk

8 G100449

  • G100449 - WEAR RING
  • Split
  • 69.85mm ID x 76.2mm OD x 9.52mm Thk

9 1542987C1

  • 1542987C1 - GLAND

10 238-5231

  • 238-5231 - O-RING
  • 0.139" Thk x 2.609" ID
  • -231
  • Cl 5
  • 75 Duro

11 1542875C1

  • 1542875C1 - SEAL KIT
  • 44.4mm Rod

12 G109298

  • G109298 - RING
  • 69.47mm ID x 75.57mm OD x 1.4mm Thk

13 G102425

  • G102425 - BUSHING
  • 44.45mm ID x 47.45mm OD x 25.1mm Thk

14 297281A1

  • 297281A1 - GLAND

15 D95143

  • D95143 - WIPER SEAL
  • 44.42mm ID x 57.17mm OD x 7.92mm Thk

16 87313720

  • 87313720 - LINER
  • ENGINE CYLIND

17 G109395

  • G109395 - SELF-TAP SCREW
  • Hex
  • #8 - 32 x 3/8"

18 87327251

  • 87327251 - RIGID TUBE
  • 12mm OD

19 87303910

  • 87303910 - SPACER
  • R8mm
  • R45mm

20 85803010

  • 85803010 - HOSE CLAMP
  • 80mm - 100mm

21 83963374

  • 83963374 - FITTING
  • 13/16"-16 ORFS x 3/4"-16 ORB

22 80128825

  • 80128825 - O-RING
  • 0.087" Thk x 0.644" ID
  • -908
  • Cl 6
  • 90 Duro

23 89992298

  • 89992298 - O-RING
  • 0.07" Thk x 0.489" ID
  • -14
  • Cl 6
  • 90 Duro

24 83416242

  • 83416242 - LUBE NIPPLE
  • Straight
  • 1/8"-27 x 0.66"

25 83971549

  • 83971549 - 90 ELBOW
  • 13/16"-16 ORFS x 3/4"-16 ORB

26 87342131

  • 87342131 - SEAL KIT
  • 44.5mm Rod x 76.2mm Bore

27 110692A4

  • 110692A4 - PISTON
