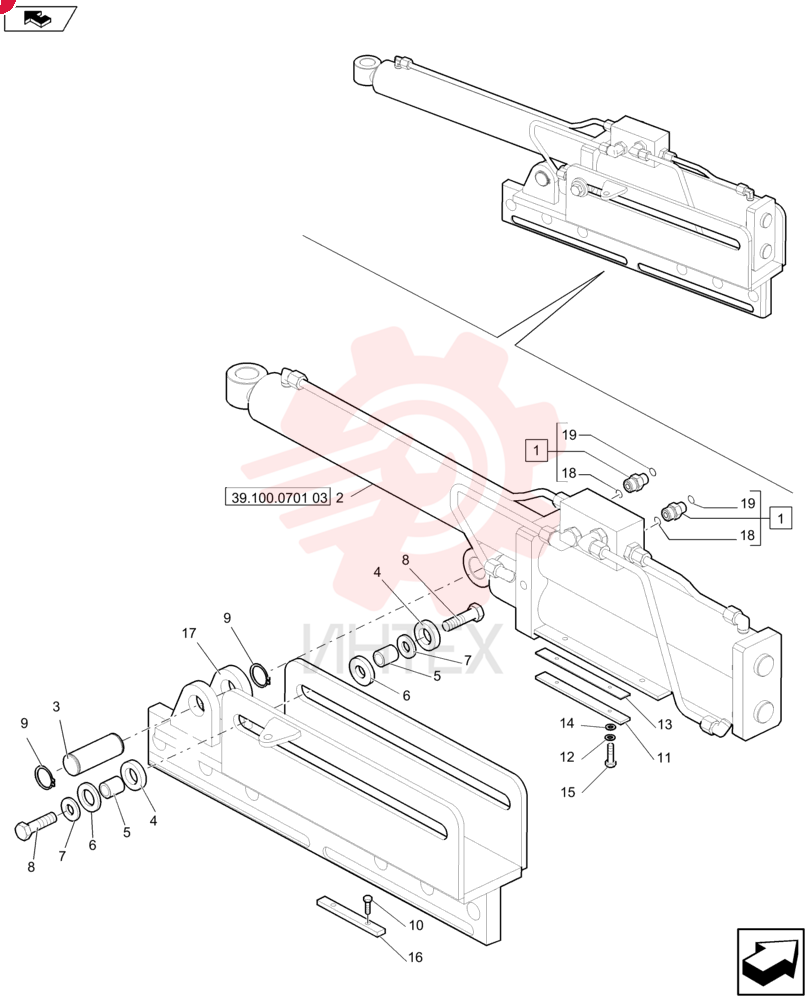

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB
1 9993143
- 9993143 - HYD CONNECTOR
- 11/16" - 16 ORFS x 9/16" - 18 ORB
2 84327310
- 84327310 - CYLINDER
- Double Acting
- 38mm Rod
- 853mm Stroke
3 87378121
- 87378121 - PIN
- 30mm OD x 84mm L
4 84152518
- 84152518 - WASHER
- 23mm ID x 40mm OD x 9mm Thk
5 84152531
- 84152531 - SPACER
- 15mm ID x 22mm OD x 26mm L
6 84207465
- 84207465 - SPACER
- 23mm ID x 40mm OD x 4.5mm L
7 12644905
- 12644905 - WASHER
- 14.4mm ID x 32mm OD x 4mm Thk
8 280264
- 280264 - BOLT
- Hex
- M14 x 50mm
- Cl 8.8
9 11067871
- 11067871 - SNAP RING
- M30
- Ext
10 9837786
- 9837786 - HEX SOC SCREW
- M12 x 20mm
- Cl 8.8
- Full Thd
11 84326632
- 84326632 - SLIDING PAD
12 84327436
- 84327436 - INSERT
13 84326635
- 84326635 - SHIM
- 240mm L x 25mm W x 1mm Thk
14 11193874
- 11193874 - BELLEVILLE WASHER
- M8 Bolt Size x 16mm OD x 1.4mm Thk
15 16043134
- 16043134 - BOLT
- Hex
- M8 x 1.25 x 14mm
- Cl 10.9
- Full Thd
16 84322242
- 84322242 - SLIDING PAD
17 84149382
- 84149382 - SUPPORT
18 47874075
- 47874075 - SUPPORT
19 9617873
- 9617873 - O-RING
- 0.078" Thk x 0.468" ID
- -906
- Cl 6
- 90 Duro
20 9993141
- 9993141 - O-RING
- 0.07" Thk x 0.364" ID
- -12
- Cl 6
- 90 Duro
